Azbil Corporation Using the display panel
Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-67
Setting the analog output limit
This function is used to activate analog output limit. The analog output limit is
determined by the values set by the HI/LO alarm function.
Default setting
OFF
When this function is set as ON, the analog output is output between values set as HI/
LO alarm function.

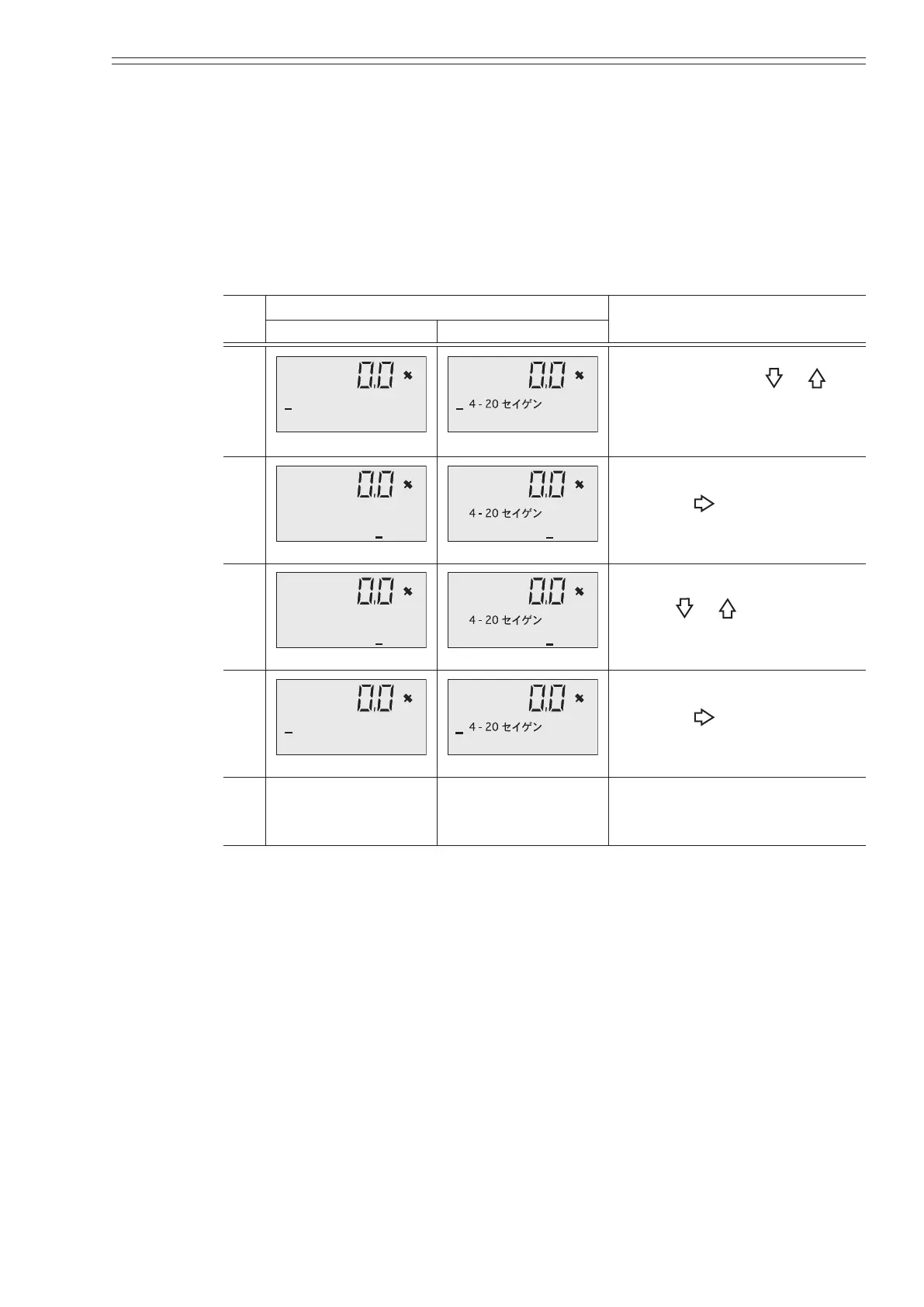

Step
Screen
Procedure
(English) (Japanese)
1
I. OUT LIMITER
OFF
&
OFF
&
Enter ADVANCED MODE (see
page 4-23). Use the
or
key to cycle through the screens
until the I.OUT LIMITER
screen appears.
2
I. OUT LIMITER
OFF
&
OFF
&
Touch the key to move the
cursor to the OFF.
3
I. OUT LIMITER
ON
&
ON
&
Use the or key to switch
the OFF to ON.
4
I. OUT LIMITER
ON
&
ON
&
Touch the key to move the
cursor to back to “&”.
5
Touch the MODE key to return
to the MEASURING MODE
and save the data.
