4-68 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter
Change the ow direction
This function is used when the detector is installed in opposite direction to the ow
direction.
Default setting
FORWARD (the direction mark on the detector matches the direction of ow.)

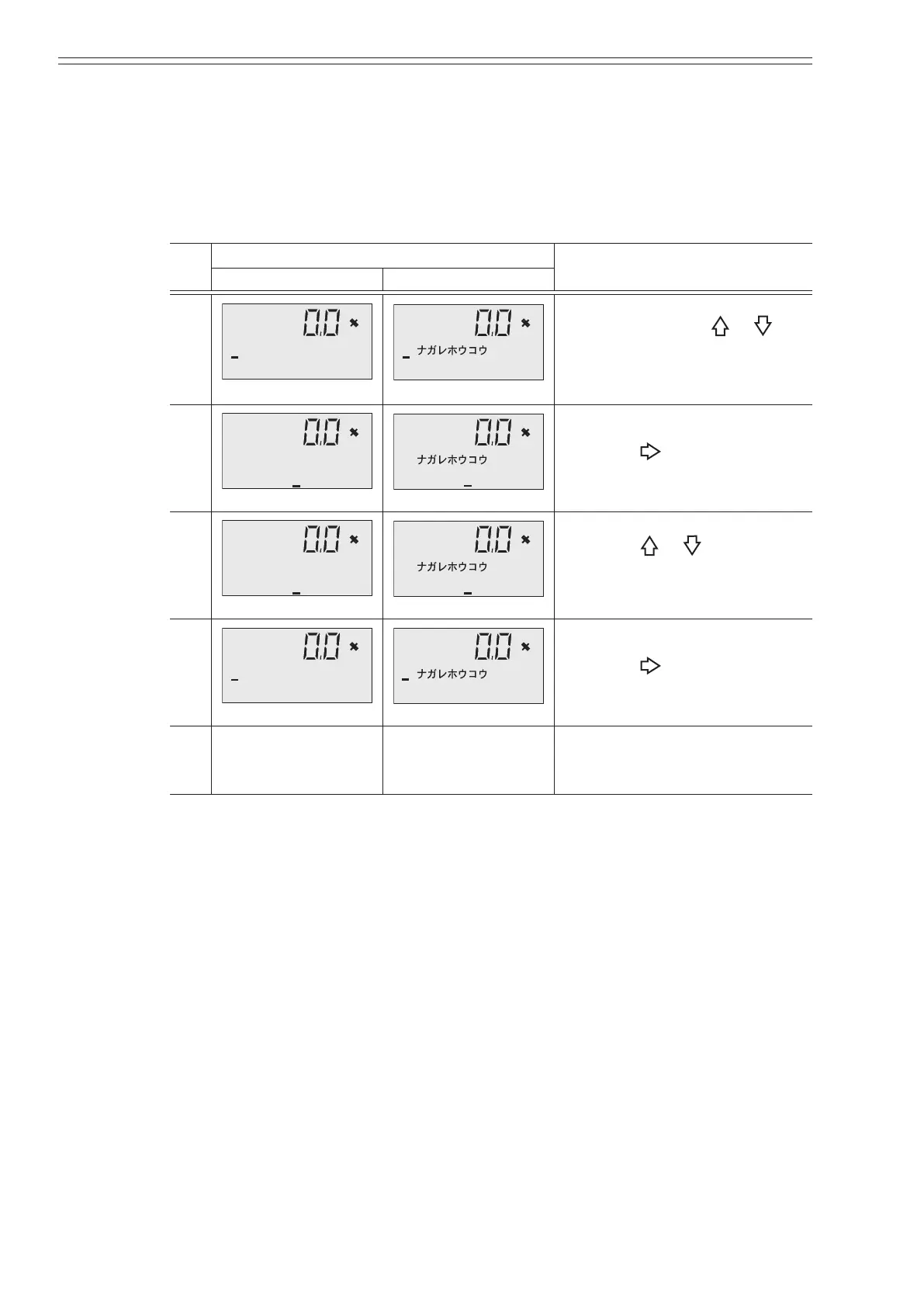

Step
Screen
Procedure
(English) (Japanese)
1
FLOW DIRECTION
FORWARD
&
FORWARD
&
Enter ADVANCED MODE (see
page 4-23). Use the
or
key to cycle through the screens
until the FLOW DIRECTION
screen appears.
2
FLOW DIRECTION
FORWARD
&
FORWARD
&
Touch the key to move the
cursor to FORWARD
3
FLOW DIRECTION
REVERSE
&
REVERSE
&
Touch the or key to
switch the “FORWARD” to the
“REVERSE”.
4
FLOW DIRECTION
REVERSE
&
REVERSE
&
Touch the key to move the
cursor to back to “&”.
5
Touch the MODE key to return
to the MEASURING MODE
and save the data.
