Azbil Corporation Installation
Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-3
Installation options
There are three ways to install the owmeter. Integral systems are pre-assembled
with the converter attached to the detector; remote systems allow you to install the
converter in a remote location - wall mounted or mounted directly to a two inch (50.8

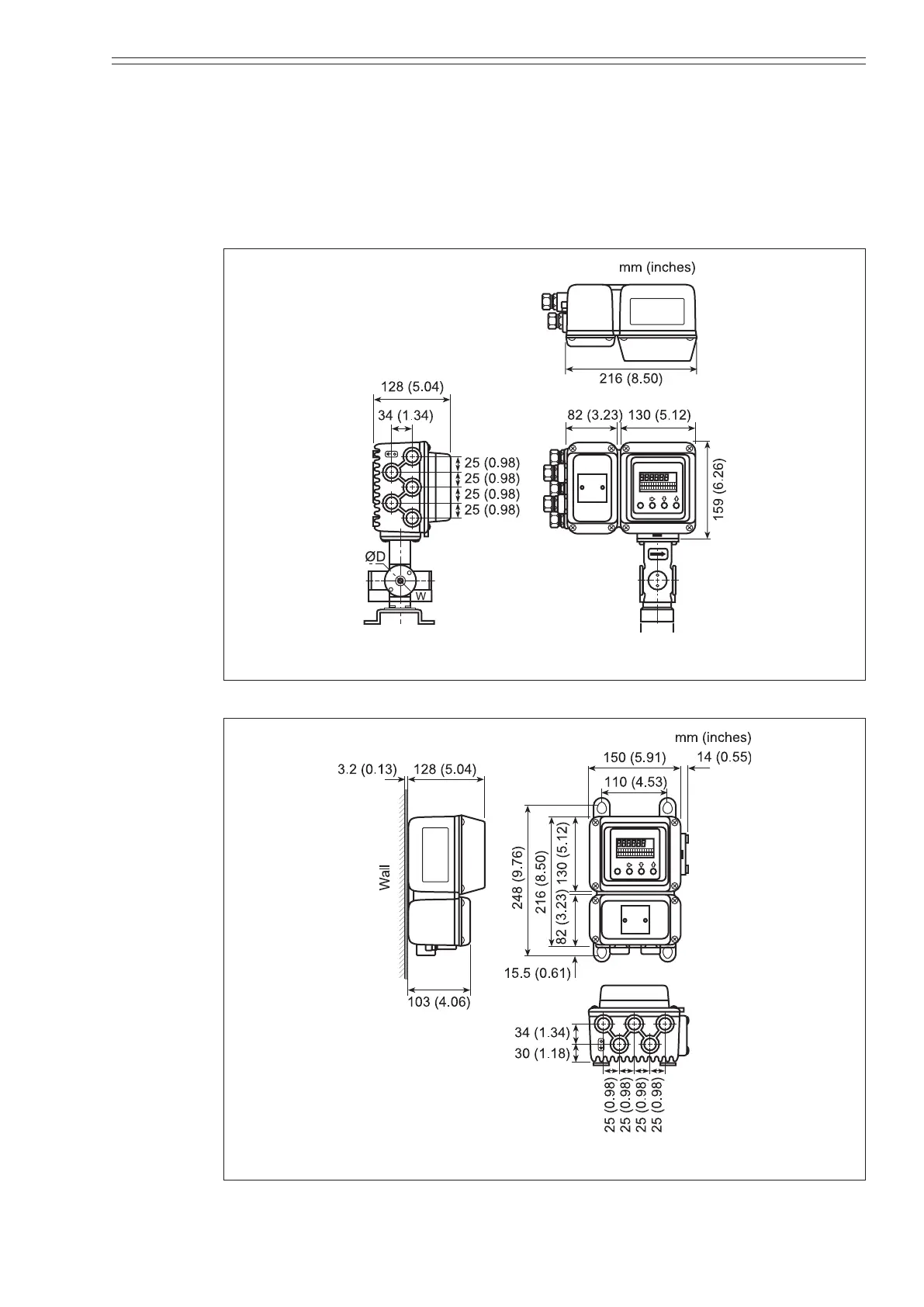

mm) pipe. The following illustrations provide dimensions for the three dierent
installation options.
Figure 2-1 Integral installation
Figure 2-2 Wall mounted remote installation
