Azbil MagneW FLEX+/PLUS+ MGG10C - Setting Hysteresis

Using the display panel Azbil Corporation
4-42 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter
Setting hysteresis
This is used to set the hysteresis as a range function to be used at range switching.
Use for normal direction automatic dual range or the normal/reverse direction
automatic range.
Default setting
0%
Setting range
0-20%
Step

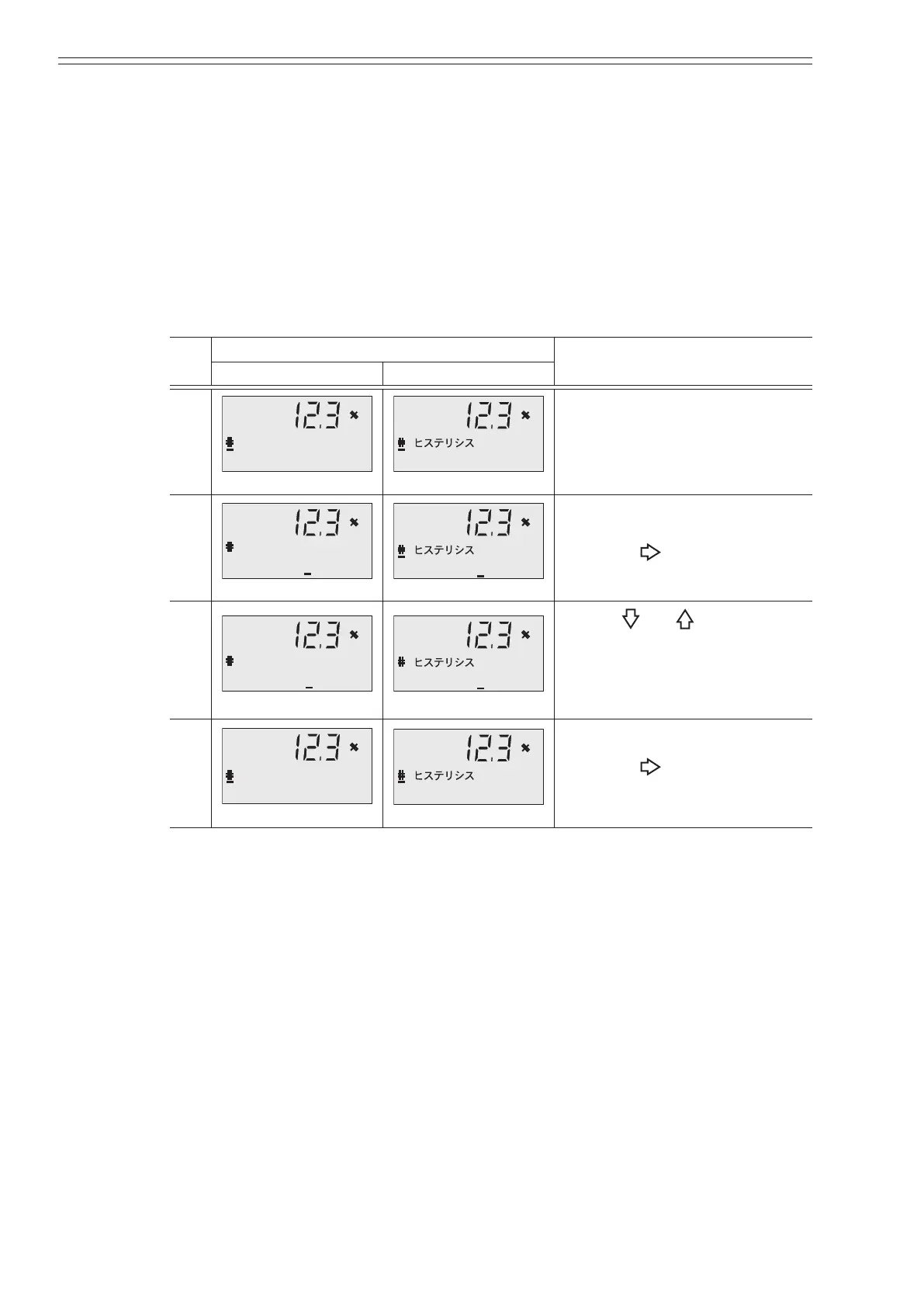

Screen
Procedure
(English) (Japanese)
1
HYSTERESIS
05 %
05 %
Open the hysteresis setup screen
by following the steps to enter
the engineering mode. (See page
4-11)
2
HYSTERESIS
05 %
05 %
Touch the key once.
3
HYSTERESIS
10 %
10 %
Use the and keys to input
the desired hysteresis value.
In this example, here the
hysteresis is changed from 5%
to 10%.
4
HYSTERESIS
10 %
10 %
Touch the key to move the
cursor to the “#”.
