Azbil Corporation Maintenance and Troubleshooting
Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 5-9
Simulated signal by the calibrator
The model MGZ14 calibrator and the model F1X calibrator are available for this
converter. The calibrator inputs the simulated signal to the converter. By using the
calibrator, the converter function can be checked.
Preparation
Calibrator and cables
Digital voltmeter
Resister (250W)
Check the converter by following the user’s manual of the calibrator.
CM2-MGZ100-2001 for the model MGZ14. CM2-F1X100-2001 for the model F1X.
CAUTION
In case using the MGZ calibrator of the S/W version 1.6 or earlier with the
converter of the model code MGG10C-M_ _ _- _ _ _ _ -_ ,

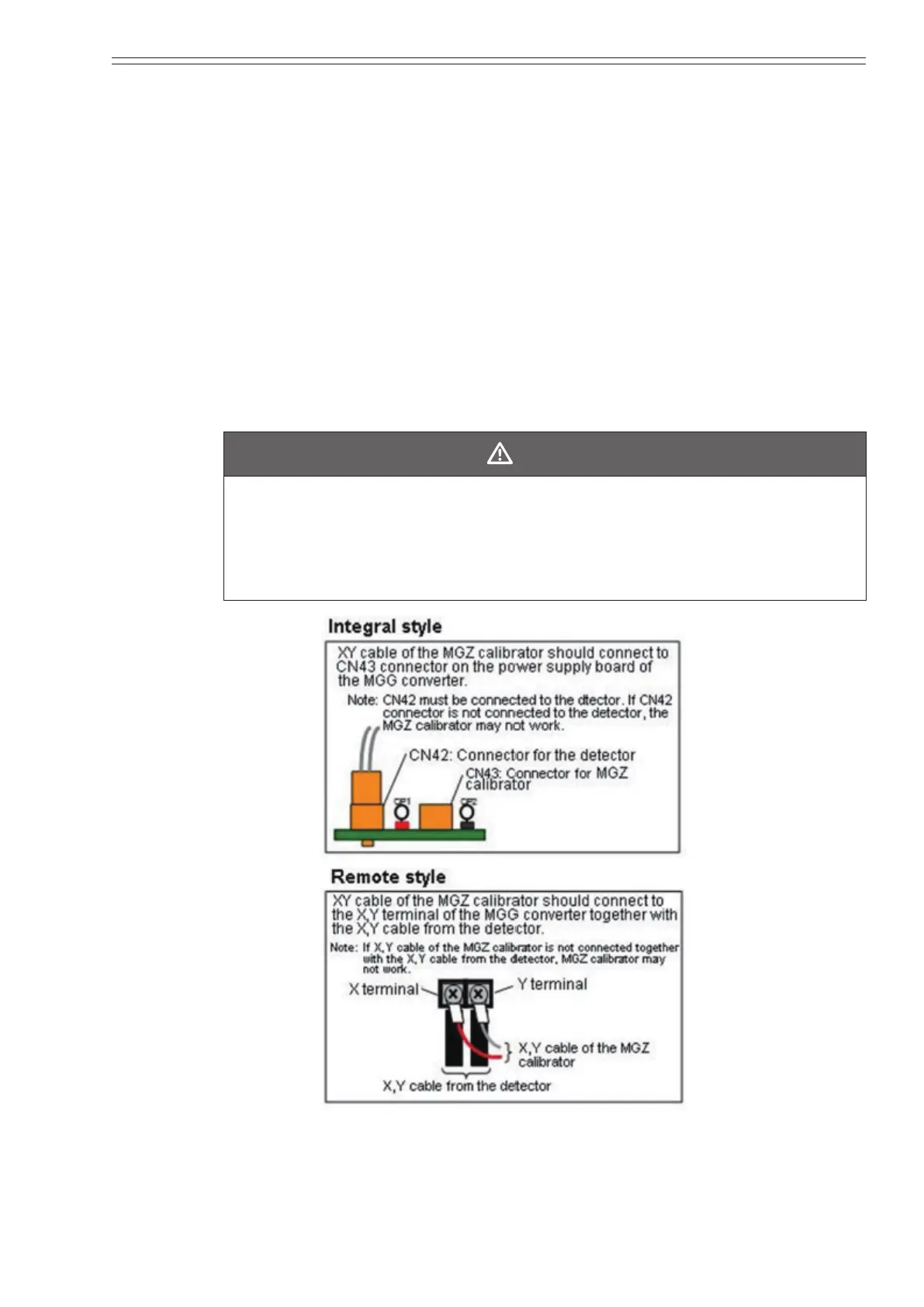

MGG14C-M_ _ _- _ _ _ _ -_, make sure to connect cables of the MGZ calibrator
to the connectors as indicated in the below drawings. If not, the calibrator may not
work properly..
In case the X,Y cable from the detector is not connected together with the X,Y
cable of the MGZ calibrator, upgrade the S/W version of MGZ from the current
version to 1.7 or later version.
