Azbil Corporation Using the display panel
Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-53
Selecting fail-safe mode for the pulse output
This function is used to determine the pulse output direction when the
electromagnetic owmeter detects a critical status condition.
CAUTION
The fail-safe mode is very important for overall safety of the control process.
Choose the fail-safe direction carefully, as equipment damage can result from a
wrong choice.
Default setting
“LOW”
Setting range
“LOW” Outputs no pulse
“HOLD” Holds the pulse to the value obtained just before the critical status
condition occurred.

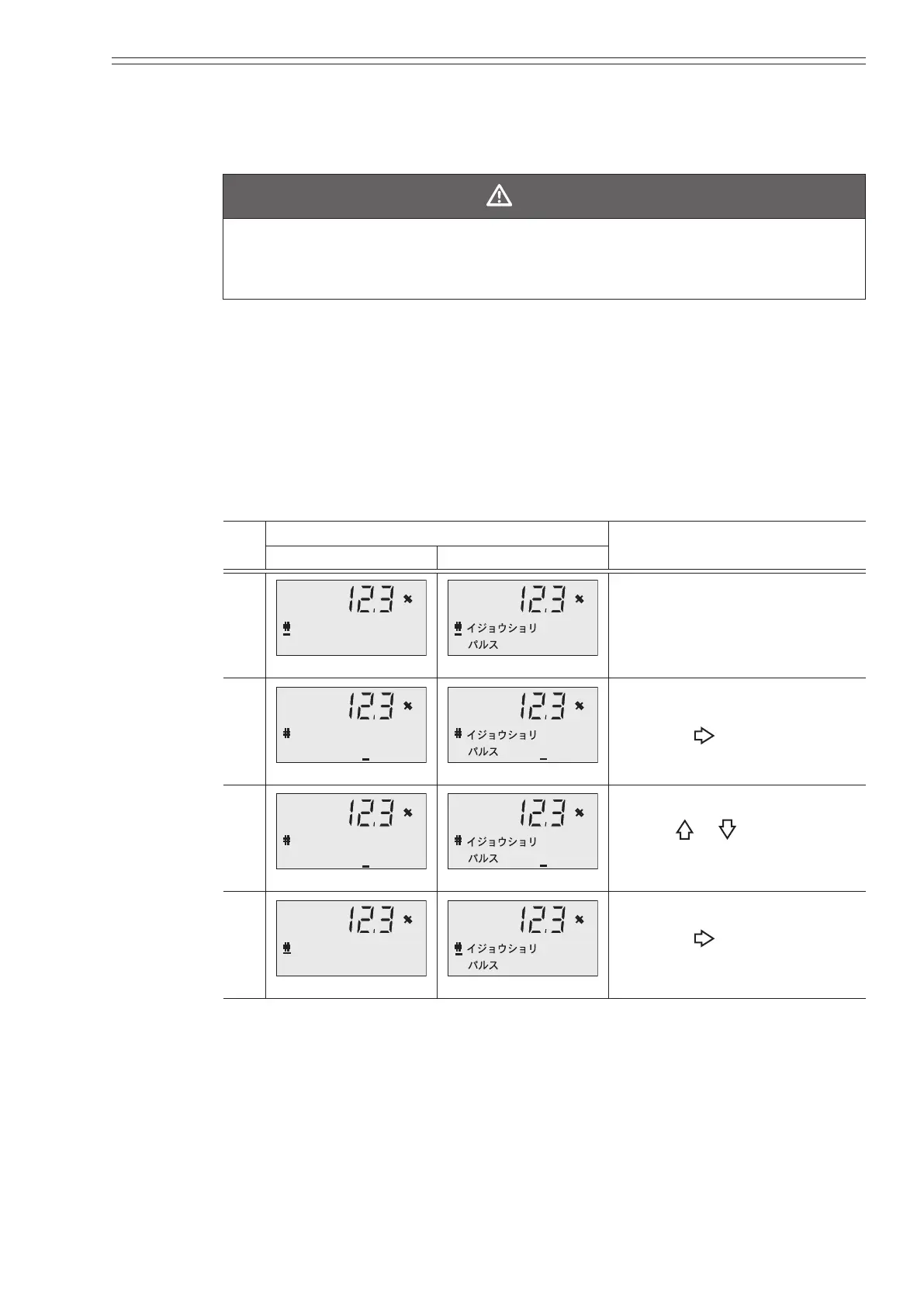

Step
Screen
Procedure
(English) (Japanese)
1
FAIL SAFE MODE
P.OUT LOW
LOW
Open the fail-safe mode for
the pulse output screen by
following the steps to enter the
engineering mode.
2
FAIL SAFE MODE
P.OUT LOW
LOW
Touch the key.
3
FAIL SAFE MODE
P.OUT HOLD
HOLD
Use the or key to
determine the fail-safe direction.
4
FAIL SAFE MODE
P.OUT HOLD
HOLD
Touch the key to move the
cursor to the “#”.
