Azbil MagneW FLEX+/PLUS+ MGG10C User Manual

Using the display panel Azbil Corporation
4-30 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter
Range functions
Single range
Measures a single range in the normal direction.
The output for a reverse ow will be as follows
Analog output: Possible to approx. -20% (0.8 mA). With communication, to
approx. -5% (3.2 mA).
Pulse output: No output
Display: A minus (-) symbol appears.
Pulse output
(Hz)
Analog output
(mA)
Input
(%)
Input
(%)
Input
(%)
Display (%)
22.4
20
4
0.8
-20.0 0100 115
115
115
-115
115
-115 0

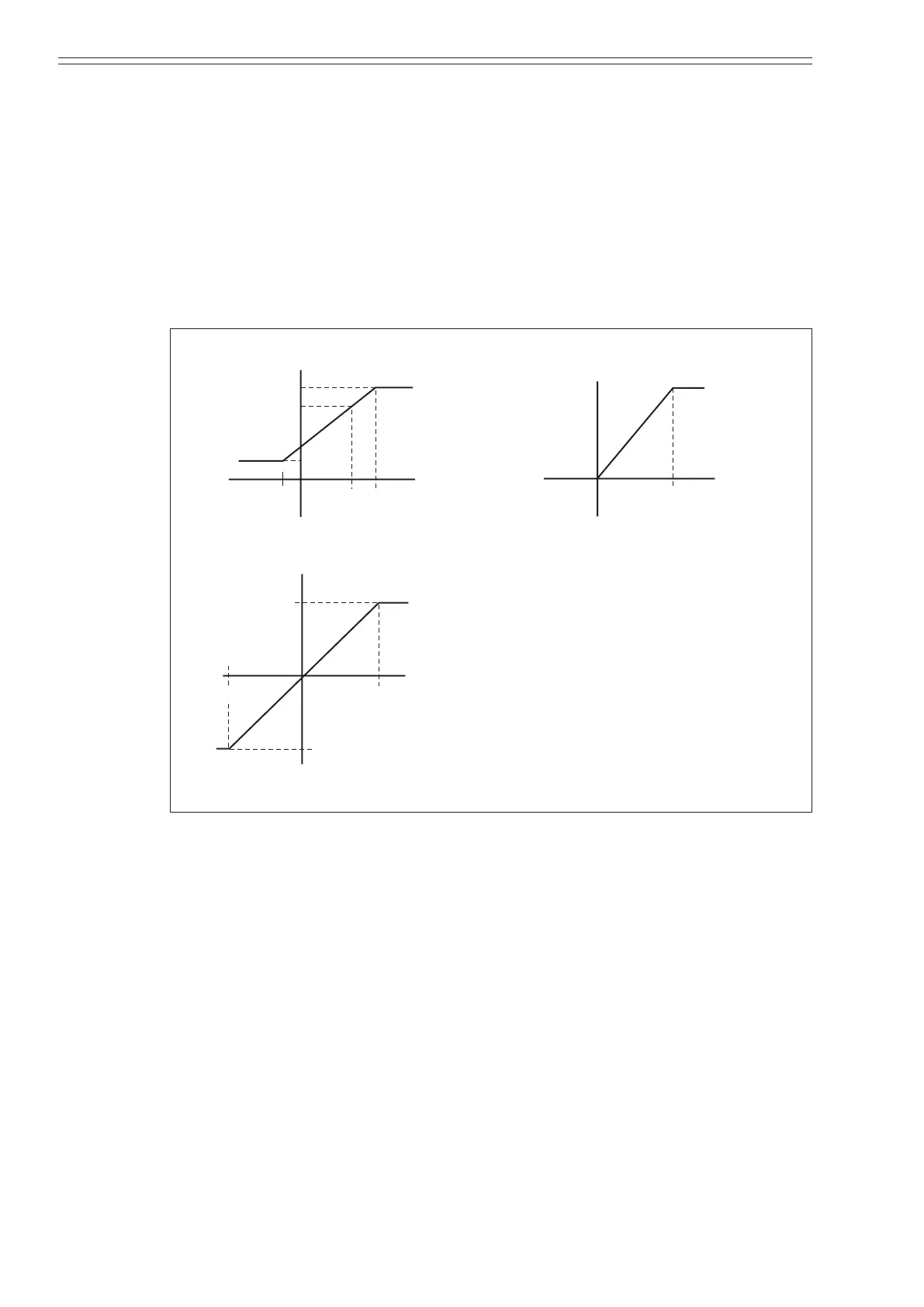

Figure 4-1 Single range
