Azbil Corporation Installation
Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-7
Integral wiring - 2 (2-contact input)
To wire a remote system, the following cables are required:
• Analog output cable - see page 2-16
• Pulse output cable - see page 2-17
• Contact input/output cable - see page 2-17
The following pages provide information on selecting the correct cables and wiring
the system. A diagram of the terminal block for a remote system is shown below.
2-contact input
AC
POWER
E
STATUS IN 1STATUS IN 2
+-+-
+-+-
POWER AC
LN
I. OUTP. OUT
E
STATUS IN 1STATUS IN 2
+-+-
+-+-
POWER AC
LN
I. OUTP. OUT
SB SA CA
BXY
SB SA CA
BXY

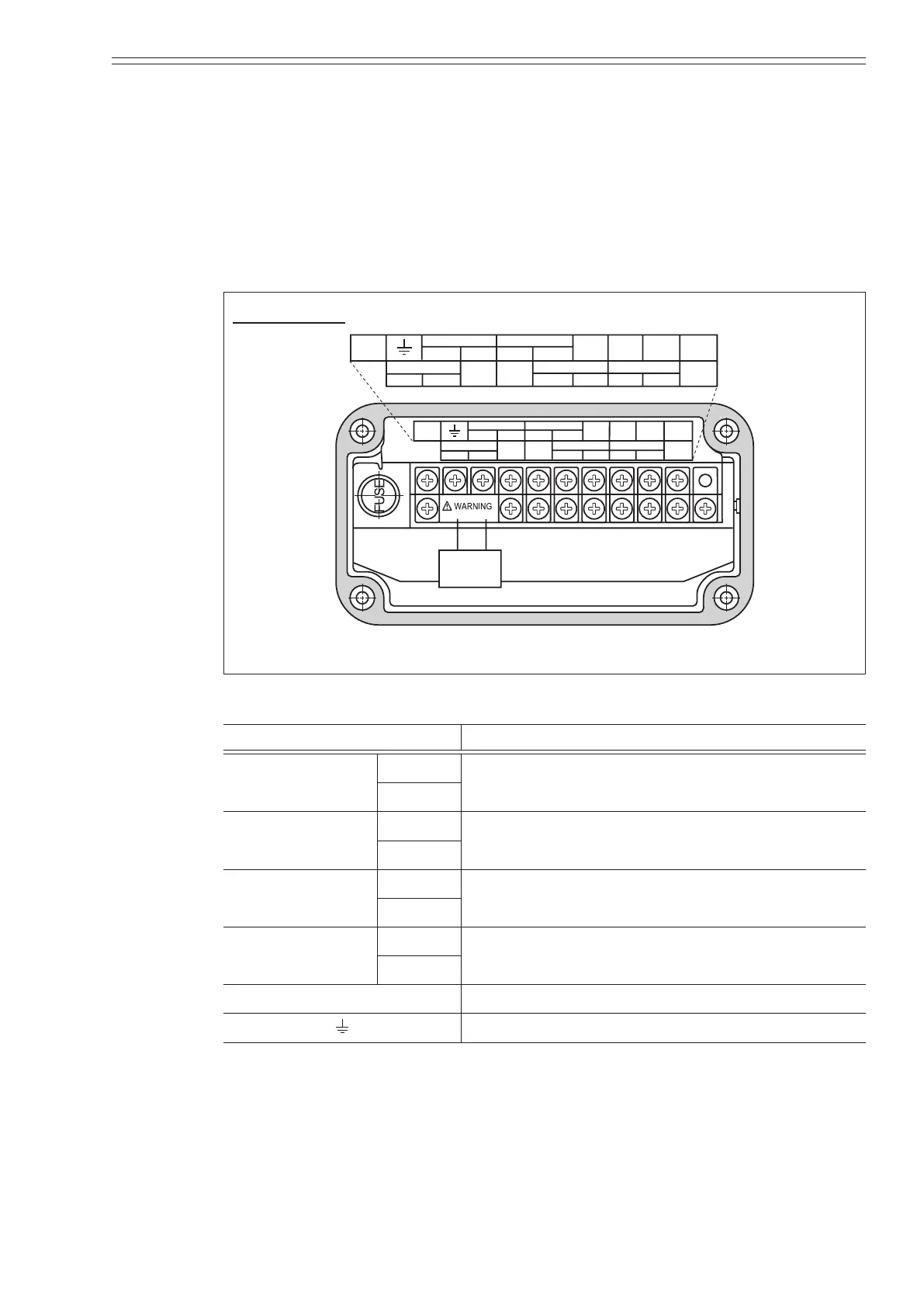

Figure 2-5 Integral converter terminal block
Table 2-2 Remote converter terminal descriptions (2-contact input)
Symbol Description
I. OUT
+
Analog output
–
P. OUT
+
Pulse output
–
STATUS IN 1
+
Contact input 1
–
STATUS IN 2
+
Contact input 2
–
E Not used
Grounding (grounding resistance must be <100 W)
~ Note
In case of DC24V and DC110V power supply, the symbol of the “L” and “N” of the
power supply become “+” and “–”.
