Azbil Corporation Maintenance and Troubleshooting
Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 5-3

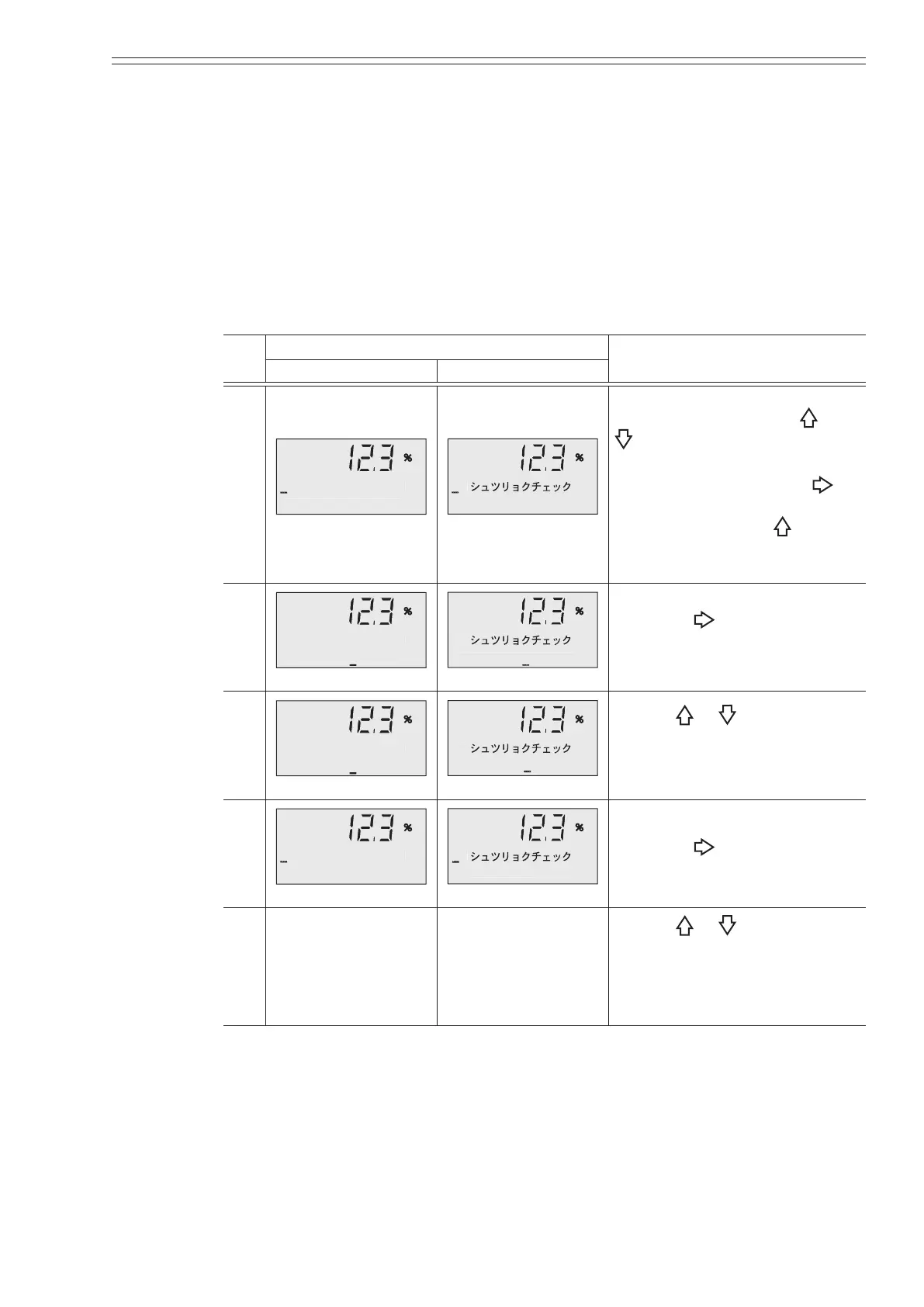

Analog output check
The analog output can be checked by using the electromagnetic owmeter as a
constant-current generator.
Default setting
Existing analog output
Setting range
000.0 to 115.0%
Step
Screen
Procedure
(English) (Japanese)
1
>
OU
TP
U
T CHEC
K
I. OUT 000.0
%
>
4 - 20 000.0
%
Enter MAINTENANCE MODE
(see page 4-24). Use the
or
key to cycle through screen
until “OUTPUT CHECK”
screen appears. Touch the
key once to move the cursor
to “OFF”. Touch the
key to
switch the OFF screen to ON
screen.
2
>
OU
TP
U
T CHEC
K
I. OUT 000.0
%
>
4 - 20 000.0
%
Touch the key to move the
cursor at the percent value to be
checked.
3
>
OU
TP
U
T CHEC
K
I. OUT 100.0
%
>
4 - 20 100.0
%
Use the or key to set the
desired value. In this example,
the analog output is set as 100%,
i.e. 20mA.
4
>
OU
TP
U
T CHEC
K
I. OUT 100.0
%
>
4 - 20 100.0
%
Touch the key to move the
cursor to “>”.
5
Use the
or key to move
other screen. Then the analog
output is back to the value
according to the measured ow
rate.
~ Note
If no operation is done for ten minutes, the output check mode automatically nishes
and return to the Measuring mode.
