Using the display panel Azbil Corporation
4-44 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter
Setting / Changing the preset value of the built-in ow counter
This changes the contact output status from H to L or from L to H when the ow
counter reaches a preset value.
This function is used when contact output has been selected.
Also, be sure to select the preset counter for the contact output in function setting.
(See page 4-25)
Default setting
The preset value is set to “0000000000” at shipment.
Setting range
0000000000 - 9999999999
Step

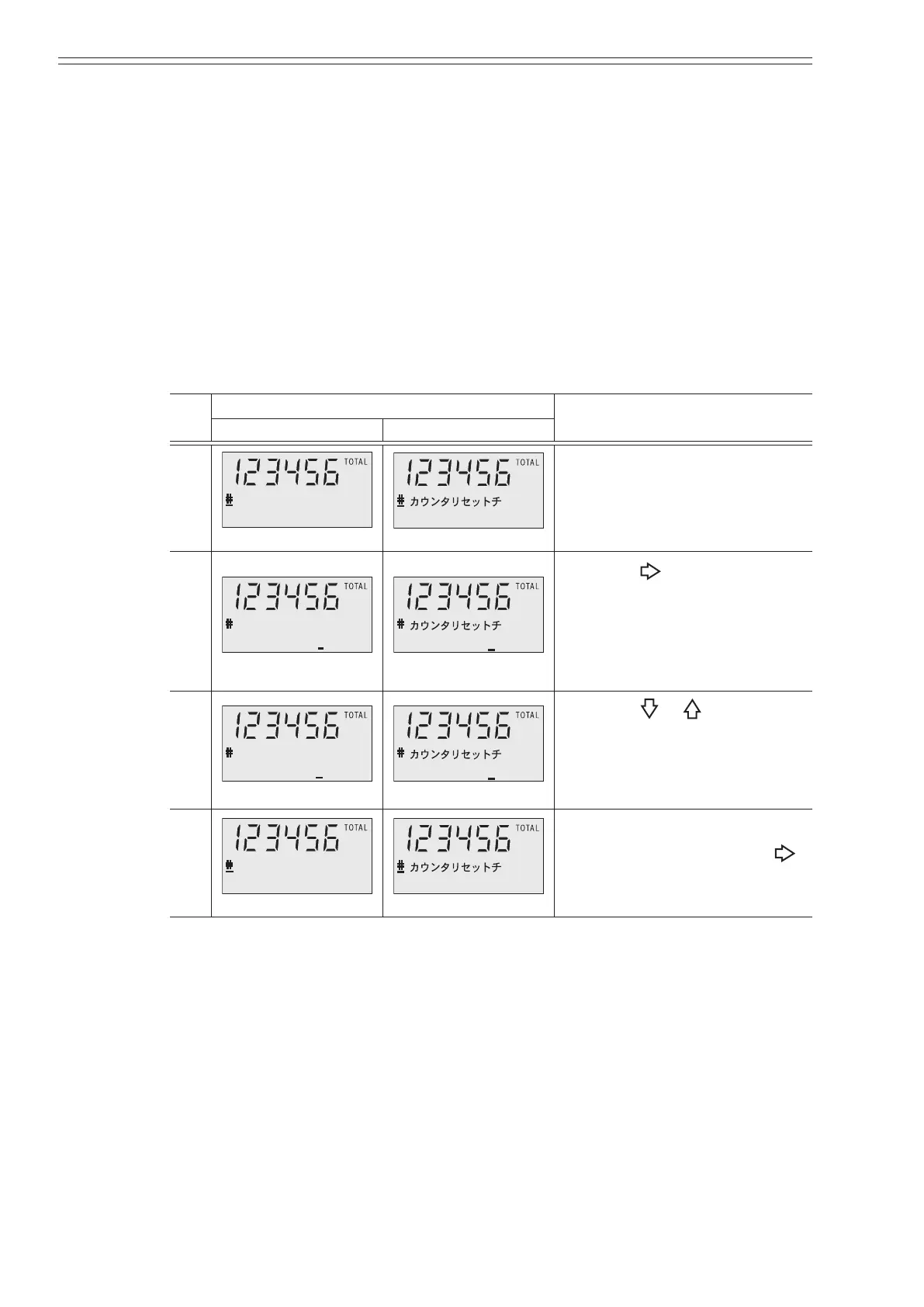

Screen
Procedure
(English) (Japanese)
1
COUNTER PRESET
0000200000
0000200000
Open the built-in ow counter
preset value setup screen by
following the steps to enter the
Engineering mode.
2
COUNTER PRESET
0000200000
0000200000
Touch the key to move the
cursor to the desired digits.
In this example, the cursor is
moved to the “2” position by
touching the RIGHT SHIFT key
ve times.
3
COUNTER PRESET
0000500000
0000500000
Touch the or key to set the
desired numbers.
In this case, the numeral “2” is
changed to “5” by three touches
of the increment key.
4
COUNTER PRESET
0000500000
0000500000
When the counter reset value
has been changed, touch the
key to return the cursor to the
“#”.
