Azbil MagneW FLEX+/PLUS+ MGG10C User Manual

Azbil Corporation Installation
Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-21
Setting the communication via the HART
To check the communication switch position on the main card:
1. Remove the four screws holding the display cover to the main body of the
converter and remove the cover.
2. Locate the communication switch
Empty detection function switch
Wr
ite
protec
tion
switch
Main car
d
C
ommunication
switch

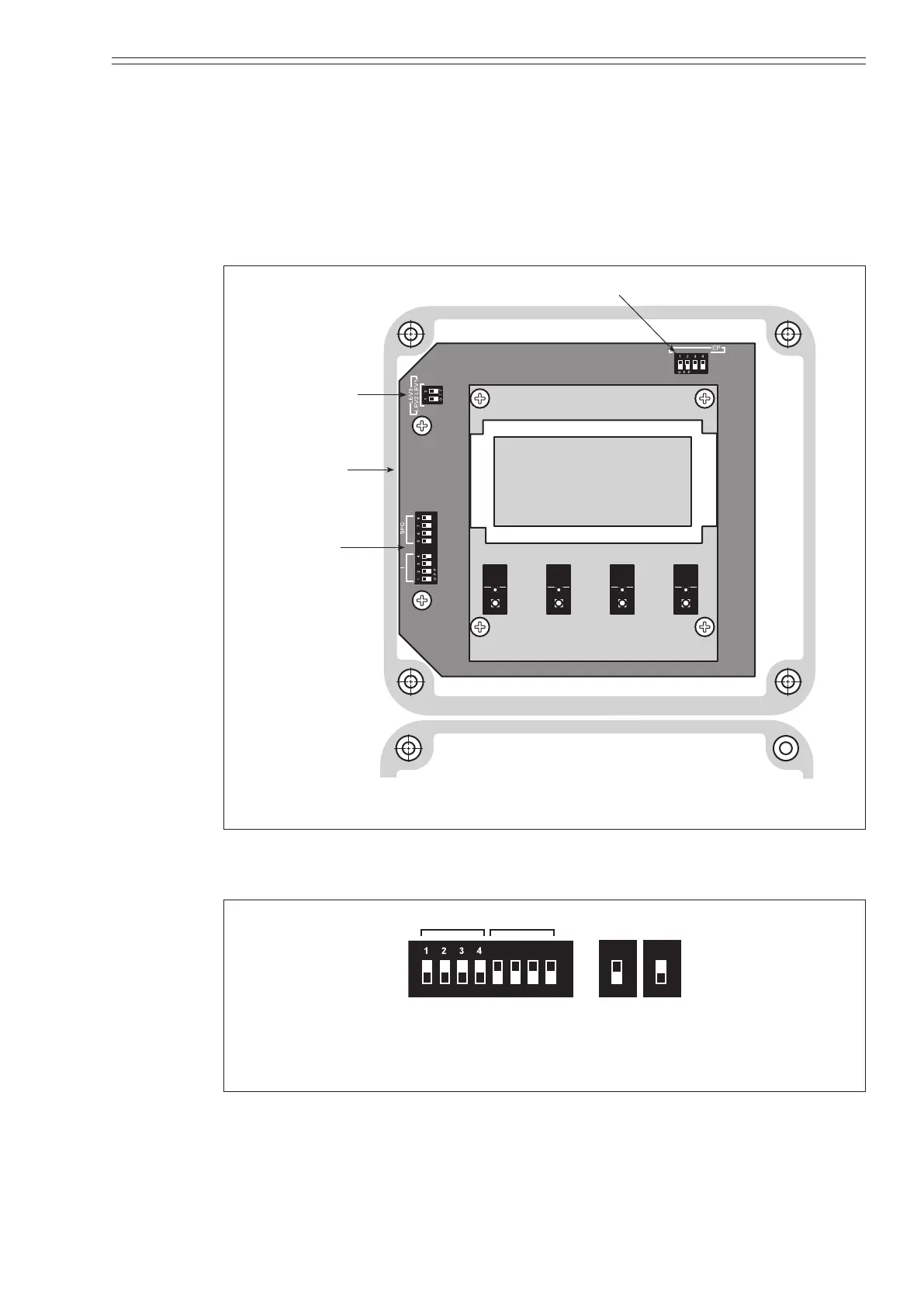

Figure 2-22 Switch locations on main card
3. Make sure that position of the I switch (1-4) are ON and positions of the SFC
switch (5-8) are OFF.
OFF ON
5678
I SFC
FSKOFF
(Move the switches to the white positions)
Figure 2-23 HART communication switch positions
~ Note
Refer to the Figure 2-15 Wiring diagram for current output for the wiring
