Azbil MagneW FLEX+/PLUS+ MGG10C - Setting the Drop-Out

Azbil Corporation Using the display panel
Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-63
Setting the drop-out
A drop out is set to prevent incorrect integration of the ow rate. Pulse counting will
pause when the ow rate is at the preset percentage of the set range.
Default setting
2%
Setting range
0 - 10%
Step

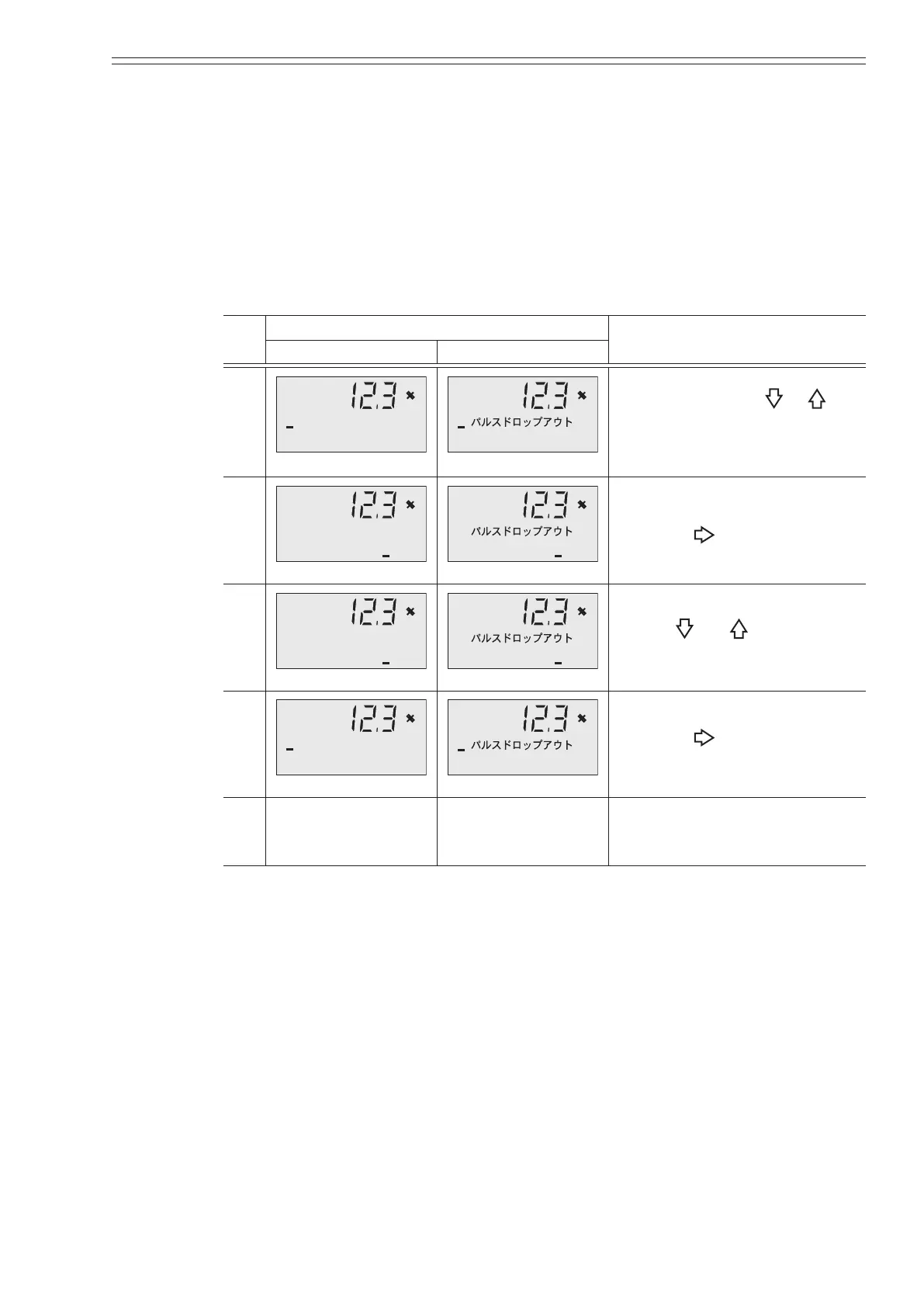

Screen
Procedure
(English) (Japanese)
1
DROP OUT
02 %
&
02 %
&
Enter ADVANCED MODE (see
page 4-23). Use the
or
key to cycle through the screens
until the DROPOUT screen
appears.
2
DROP OUT
02 %
&
02 %
&
Touch the key.
3
DROP OUT
05 %
&
05 %
&
Use the and keys to
change the numbers.
4
DROP OUT
05 %
&
05 %
&
Touch the key to move the
cursor to the “&”.
5
Touch the MODE key return to
the MEASURING MODE and
save the data.
