Introduction Azbil Corporation
1-6 Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter
System conguration WITH the HART communication function with
the internal power supply

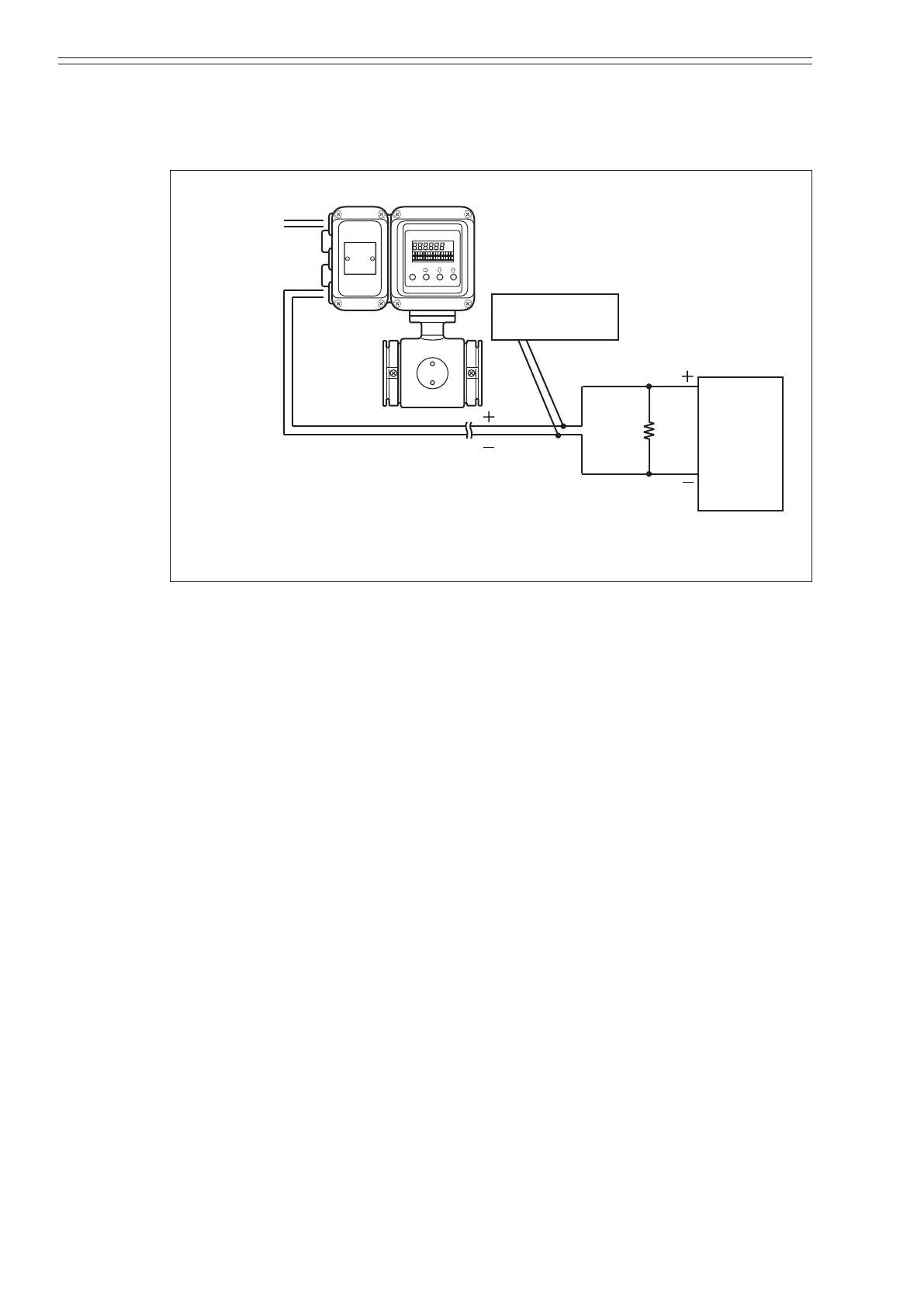

Figure 1-4 shows a sample system conguration in with the HART communication.
A
C or DC
power
supply
Device
HART375
communicator
4 - 20 mA
analog output
250Ω
Host
control
system
Figure 1-4 System conguration of with the HART communication with internal
power supply
Smart Electromagnetic Flowmeter (device)
• Measures ow rate and outputs an analog signal.
HART Communicator:
• Communicate with the MagneW
FLEX+/PLUS+ and congure the data of the MagneW
FLEX+/PLUS+. For the HART communication by the HART 375 communicator, the
necessary DD le needs to be downloaded.
