Azbil Corporation Installation
Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 2-11
Remote wiring - 3 (2-contact output)
To wire a remote system, the following cables are required:
Signal cable - see page 2-12
Excitation cable - see page 2-12
Analog output cable - see page 2-16
Pulse output cable - see page 2-17
Contact input/output cable - see page 2-17
The following pages provide information on selecting the correct cables and wiring
the system. A diagram of the terminal block for a remote system is shown below.
2-contact output
AC
POWER
E
STATUS OUT 2STATUS OUT 1
+-+-
+-+-
XY
POWER AC
LN
SB SA CA
B
I. OUTP. OUT
E
STATUS OUT 2STATUS OUT 1
+-+-
+-+-
XY
POWER AC
LN
SB SA CA
B
I. OUTP. OUT

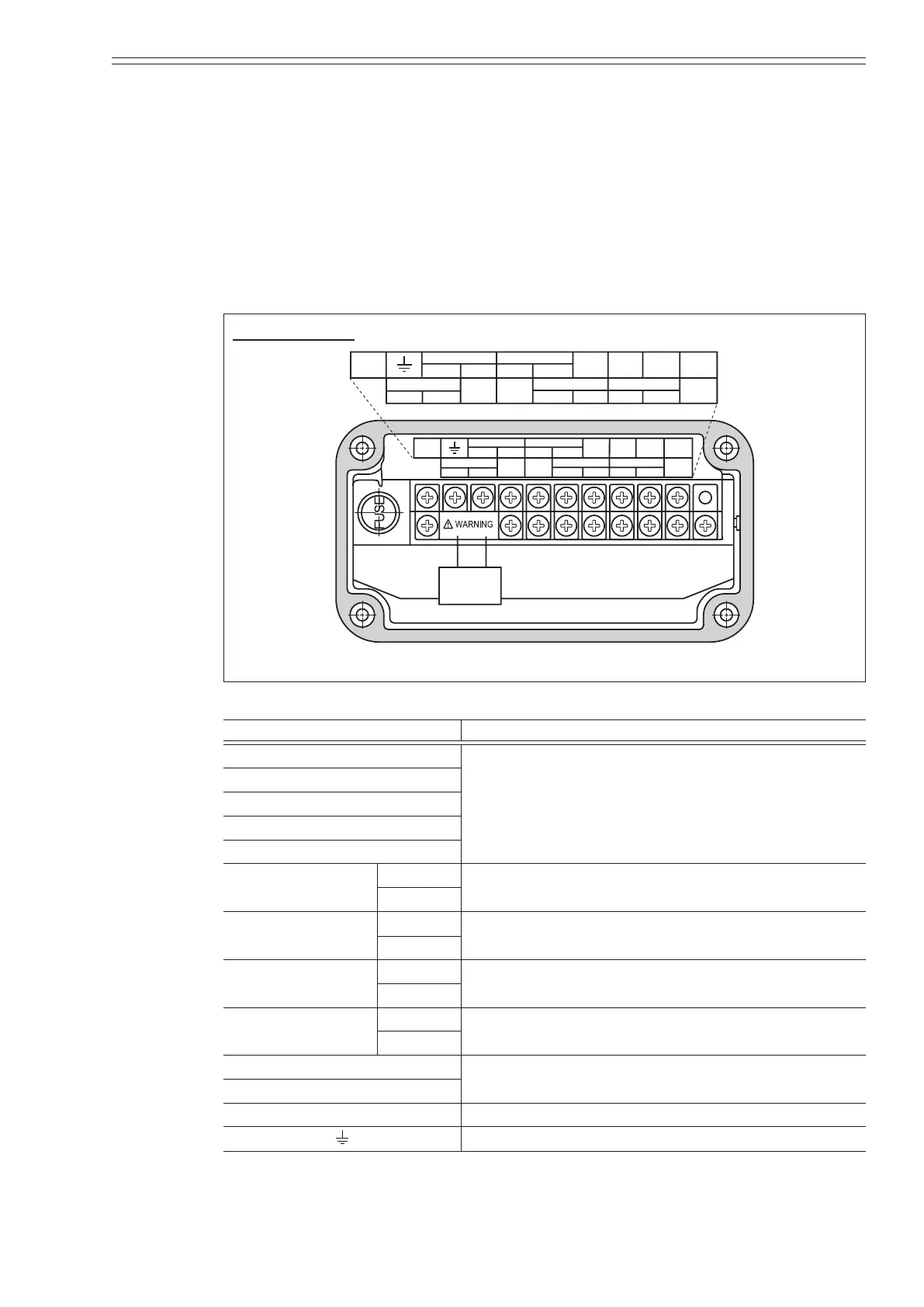

Figure 2-9 Remote converter terminal block
Table 2-6 Remote converter terminal descriptions (2-contact output)
Symbol Description
A
Flow rate signal input
B
C
SA
SB
I. OUT
+
Analog output
P. OUT
+
Pulse output
STATUS OUT 1
+
Contact output 1
STATUS OUT 2
+
Contact output 2
X
Excitation
Y
E Not used
Grounding (grounding resistance must be <100 W)
~ Note
In case of DC24V and DC110V power supply, the symbol of the “L” and “N” of the
power supply become “+” and “–”.
