Azbil Corporation Using the display panel
Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-43
Selecting the current output method for dual range
This is used as a range function with the normal direction dual range or normal/
reverse direction dual range, to select how to output the 4-20 mA analog output: with
either the range switching method or the wider range method.
Output (mA DC)
Output (mA DC)
WIDE WIDE
20
4
0 100
20
4
0 100
Input
(%)
Input
(%)
Normal direction dual range Normal/reverse direction dual range

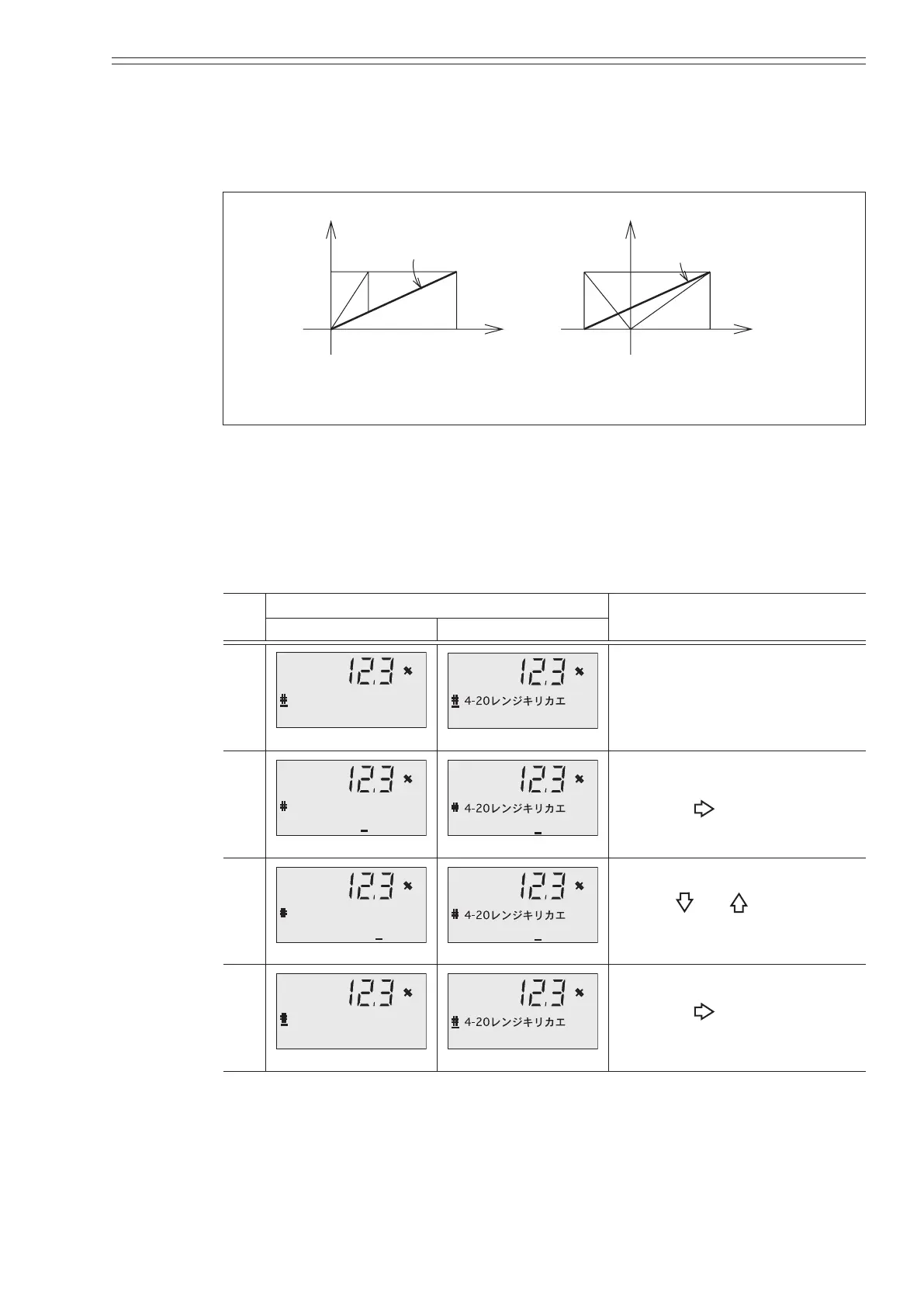

Figure 4-5 Selecting the current output method for dual range
Default setting
AUTO
Setting the range
Either AUTO or WIDE
Step
Screen
Procedure
(English) (Japanese)
1
I. OUT RANGE
AUTO
AUTO
Open the current output method
selection screen by following
the steps to enter the engineering
mode.
2
I. OUT RANGE
AUTO
AUTO
Touch the key once.
3
I. OUT RANGE
WIDE
WIDE
Use the and keys to select
the AUTO or WIDE.
4
I. OUT RANGE
WIDE
WIDE
Touch the key to move the
cursor to the “#”.
