Entering BASIC SETUP MODE

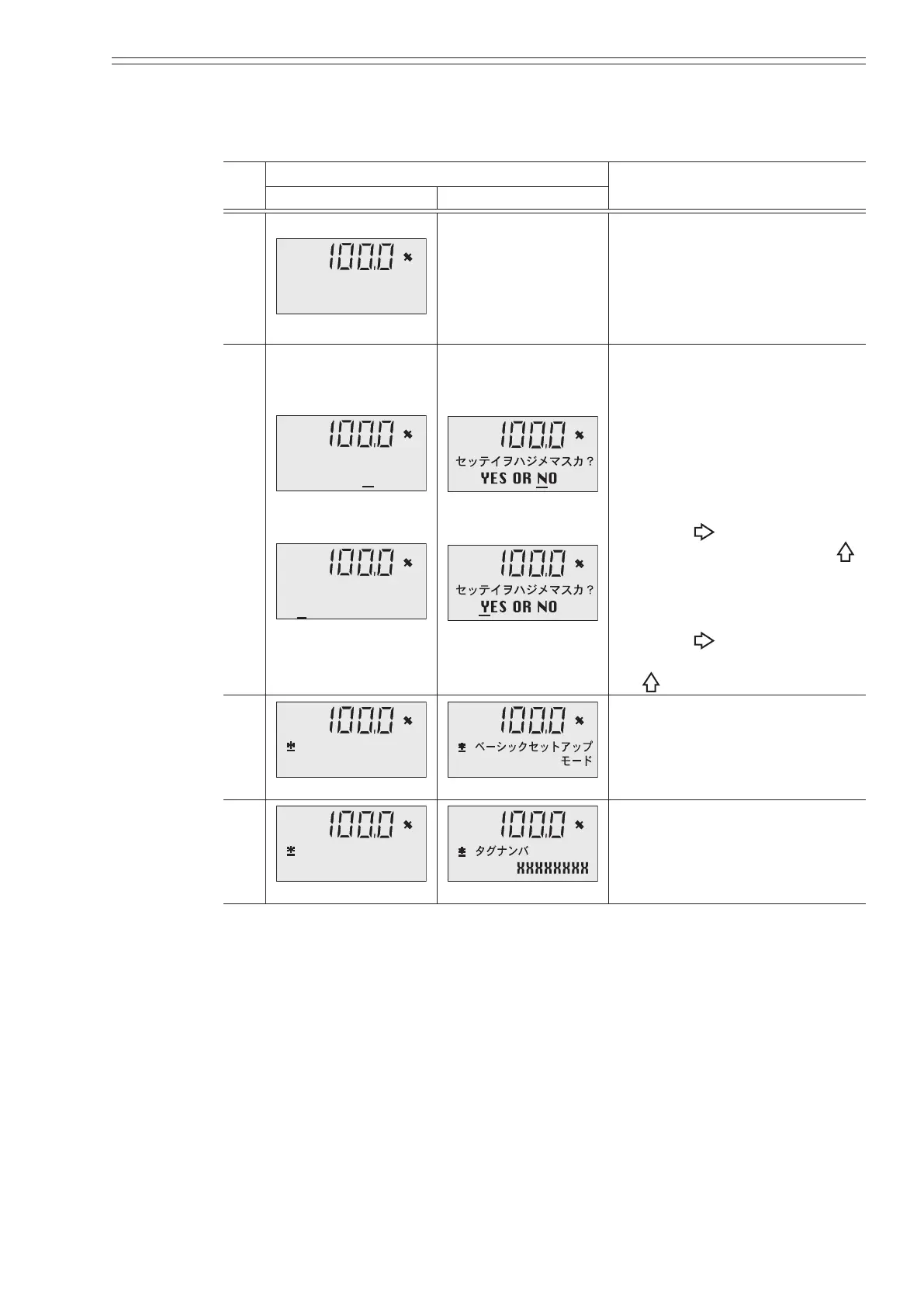

The following screens appear in this order in BASIC SETUP MODE.
Step
Screen
Procedure
(English) (Japanese)
1
10.0 m3/h
WPO 0000000020
Left display is an example of
MEASURING MODE.
Touch MODE key and hold
for three seconds. The BASIC
SETUP MODE ENTER screen
appears.
2
ENTER BASIC SETUP
YES OR NO
i
ENTER BASIC SETUP
YES OR NO
i
Make sure to operate the
following within 8 seconds.
If no operation is done
in 8 seconds, the screen
automatically returns to the
MEASURING MODE.
1) In case of entering BASIC
SETUP MODE
Touch the
key twice to move
the cursor to YES. Touch the
key once.
2) In case of back to
MEASURING MODE
Touch the
key three times to
move the cursor to NO. Touch
the
key once.
3
BASIC SETUP
MODE
With the operation of 1), the
BASIC SETUP MODE screen
appears for two seconds.
4
TAG
XXXXXXXX
TAG setting screen appears two
seconds after.
