Azbil Corporation Introduction
Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 1-9
The converter consists of the components shown in the gure below.
A
D
B
C

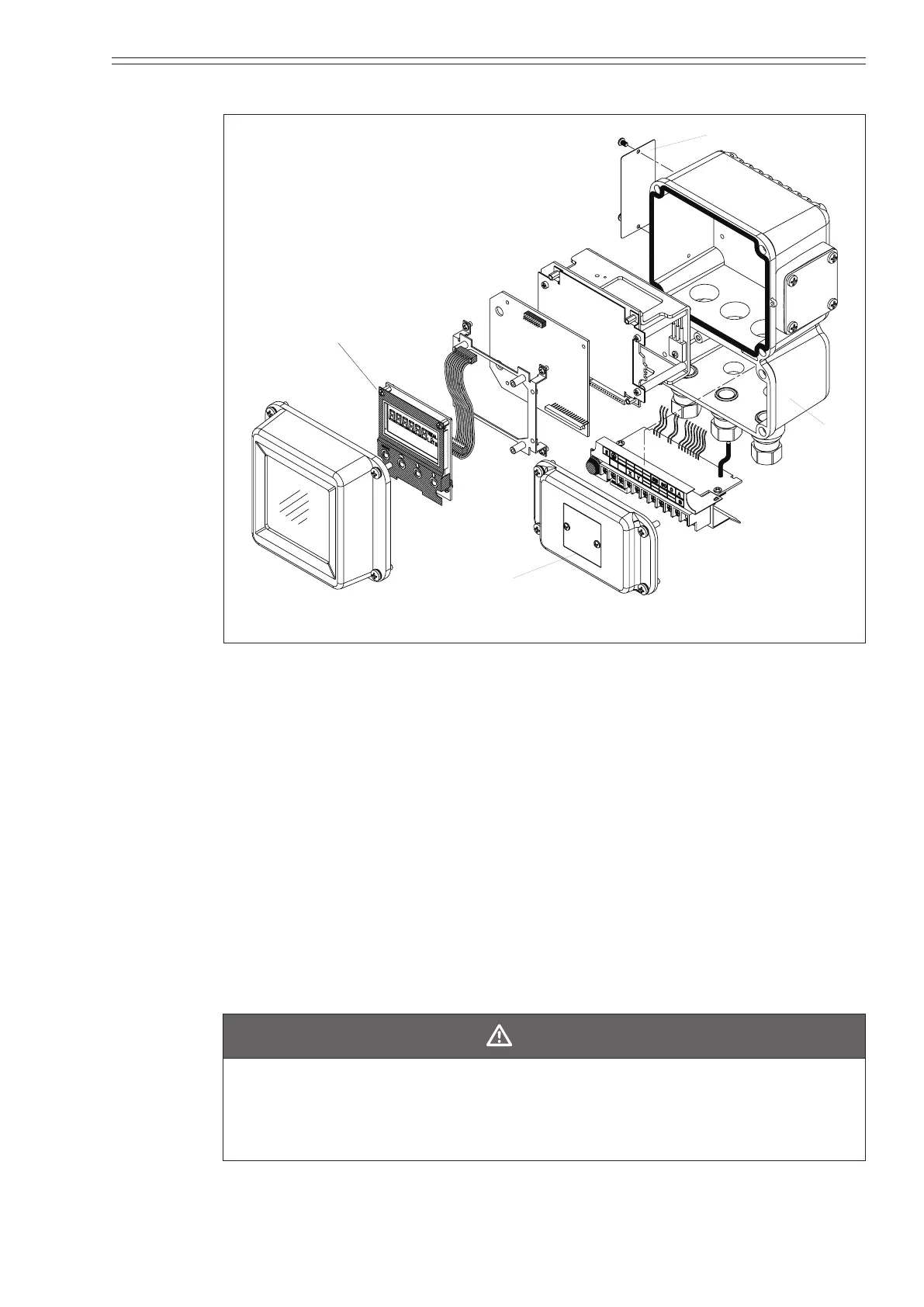

Figure 1-7 Parts of the converter
Converter
• Converts electromotive force by the detector to the ow rate signal.
• Transmits the analog output or the digital output as the ow rate signal.
Data setting device (A)
• Displays the ow rate and the totalized value.
• The Data can be congured through the four infrared sensor keys.
Terminal box (B)
• Encloses the inputs/outputs terminals.
• Equipped with lightning arrestor.
Name plate (C)
• Indicates model numbers, product numbers and the detector factor (EX).
Tag number plate (D)
• Indicates the tag number as specied in the product order.
CAUTION
Do not apply over-voltage that exceed following lightning arrestor specication.
The converter may be damaged.
• Power supply terminal: series mode 1kV, common mode 2kV
• Input/Output terminal: series mode 1kv, common mode 1kV
