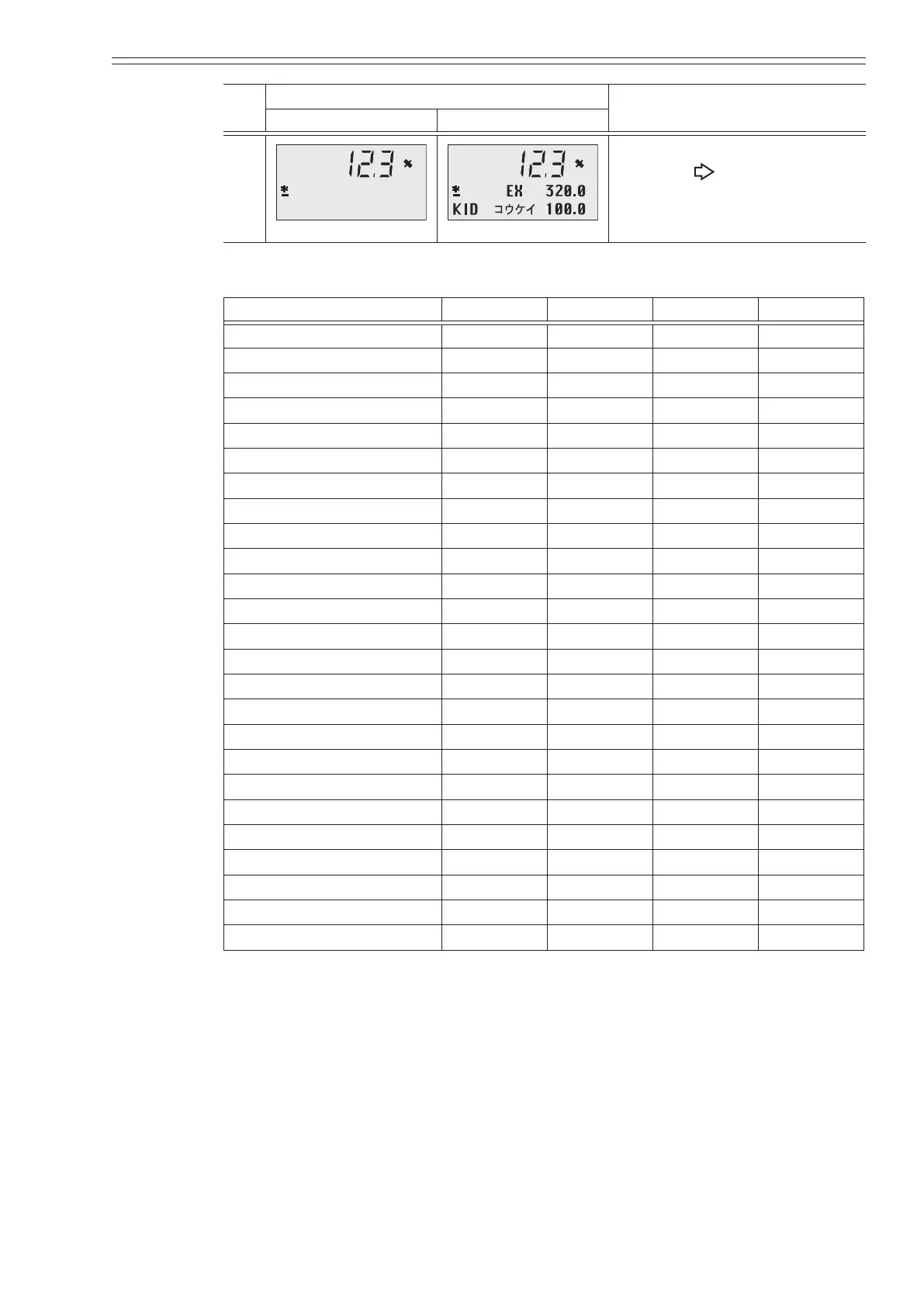

Azbil Corporation Using the display panel
Model MGG10C/14C - MagneW FLEX+/PLUS+ Converter 4-19
Step
Screen
Procedure
(English) (Japanese)
5
EX 320.0
KID DIA 100.0
Touch the key until the
cursor is back at the mode
indicator
a: Can be used
Size/Detector Model No. MGG KID NNM NNK
2.5
a a
5.0
a a
10.0
a a
15.0
a a
25.0
a a a
40.0
a a a
50.0
a a a a
65.0
a
80.0
a a a
100.0
a a a a
125.0
a
150.0
a a a
200.0
a a a a
250.0
a a a
300.0
a a a
350.0
a a a
400.0
a a a a
450.0
a a
500.0
a a
600.0
a a a a
700.0
a a
800.0
a a
900.0
a
1000.0
a
1100.0
a
~ Note
For MGG and KID type detectors, set the detector factor (EX) as the value stamped
on the name plate. For NNM and NNK if you need to replace a converter with a new
one, contact an Azbil Corp. representative.
