9. ICMP

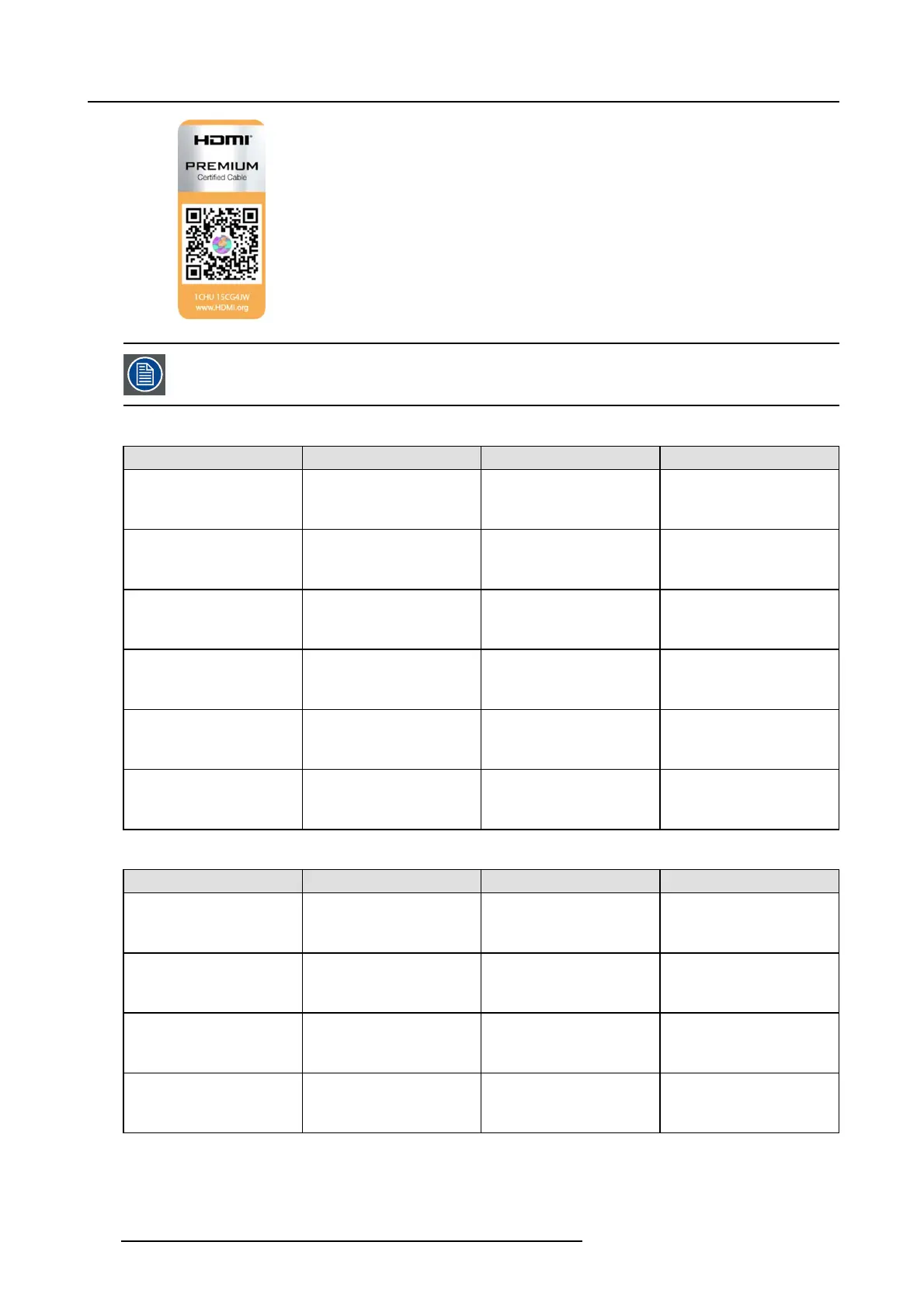

The “Pr emium Certied HDMI” cables are tested to work w ith high bandwidth as is the case
with 4K HDR content. These can be more exp ensive though. W hen using active and/or optical
cables you should v erify if the integrated receiver and sender are HDMI certied to guara ntee
to work compliant with the HDMI protocol. You can request the HD MI certicate to the manu-
facturer of the cable.
The ICMP is not supporting Ethernet-over-HDMI and such specic c ables are thus not required.
HDMI 2.0 Supported 2D Formats
Format Frame Rate Color coding Bit depth
1280x720 23.976, 24, 25, 29.97, 30, 50,
59.94, 60
RGB
YCbCr 4:4:4
YCbCr 4:2:2
8
10
12
1280x720 100, 119.88, 120 RGB
YCbCr 4:4:4
YCbCr 4:2:2
8
1920x1080
2048x1080
23.976, 24, 25, 29.97, 30, 50,
59.94, 60
RGB
YCbCr 4:4:4
YCbCr 4:2:2
8
10
12
1920x1080
2048x1080
100, 119.88, 120 RGB
YCbCr 4:4:4
YCbCr 4:2:2
8
3840x2160
4096x2160
23.976, 24 25, 29.97, 30 RGB
YCbCr 4:4:4
YCbCr 4:2:2
8
10
12
3840x2160
4096x2160
50, 59.94, 60 RGB
YCbCr 4:4:4
YCbCr 4:2:2
8
HDMI 2.0 Supported 3D (Frame Pac king) Formats
Format Frame Rate
Color coding
Bit depth
1920x1080
2048x1080
23.976, 2 4, 25, 29.97, 30
RGB
YCbCr 4:4:4
YCbCr 4:2:2
8
10
12
1920x1080
2048x1080
50, 59.94, 60
RGB
YCbCr 4:4:4
YCbCr 4:2:2
8
3840x2160
4096x2160
23.976, 24 25, 29.97, 30
RGB
YCbCr 4:4:4
YCbCr 4:2:2
8
10
12
3840x2160
4096x2160
50, 59.94, 60
RGB
YCbCr 4:4:4
YCbCr 4:2:2
8
104 R5906753 DPXK BLP SERIES 20/11/2017
