12. Removal and installation of the projector covers

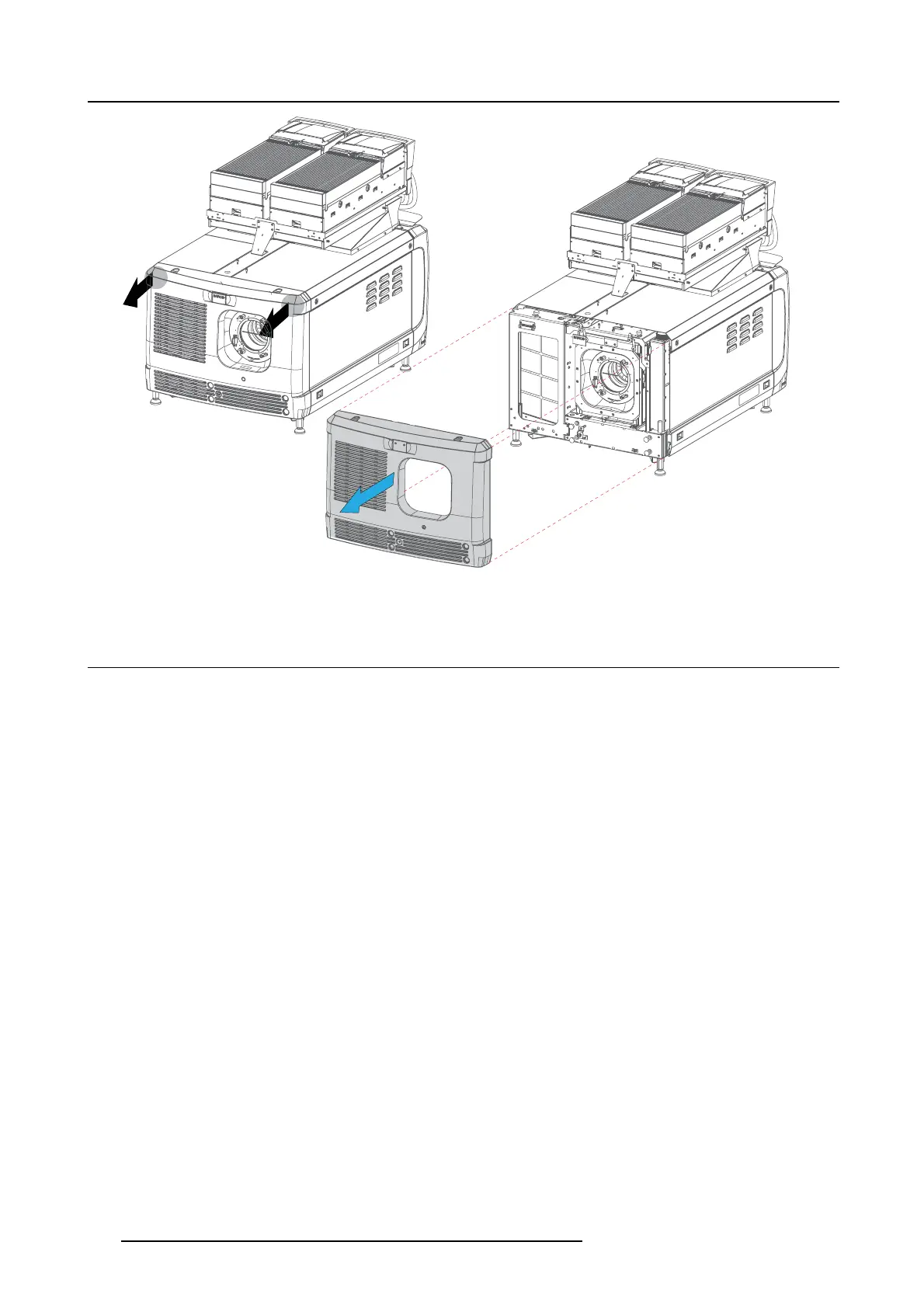

Image 12-9

Remove front cover

12.5 Removal of the side cover

Necessary tools

Flat screwdriver

How to remove

1. Release both captive screws on top of the side cover.

126

R5906753 DPXK BLP SERIES 20/11/2017
