12. Removal and installation of the projector covers

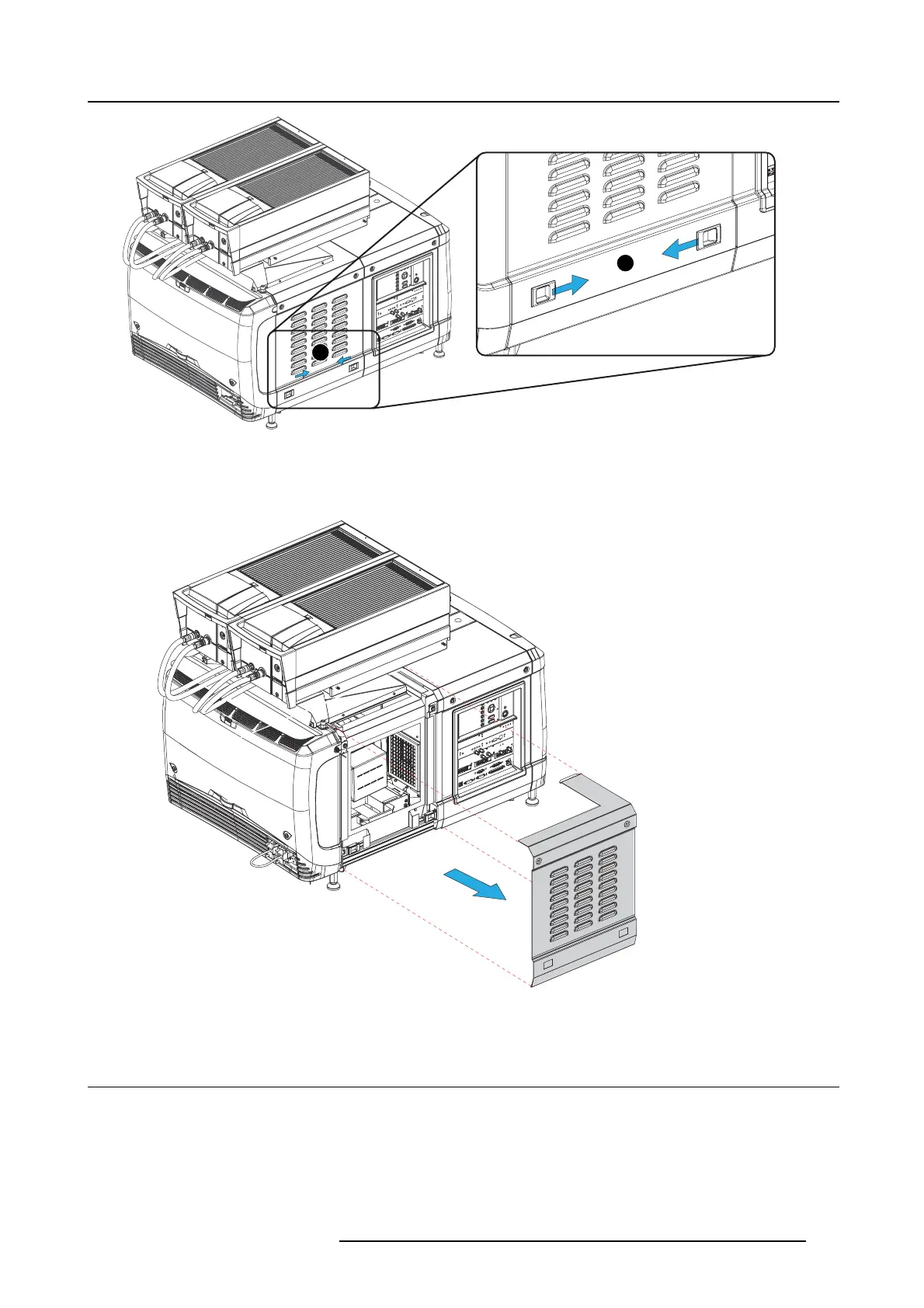

Image 12-3

Lamp cover, locks

3. Remove the cover.

Image 12-4

Lamp cover, remo val

12.2 Removal of the rear cover

Necessary tools

Flat screwdriver

How to remove

1. Release both captive screws almost at the bottom of the rear cover using a ﬂat screw driver (1).

R5906753 DPXK BLP SERIES 20/11/2017

121
