12. Removal and installation of the projector covers

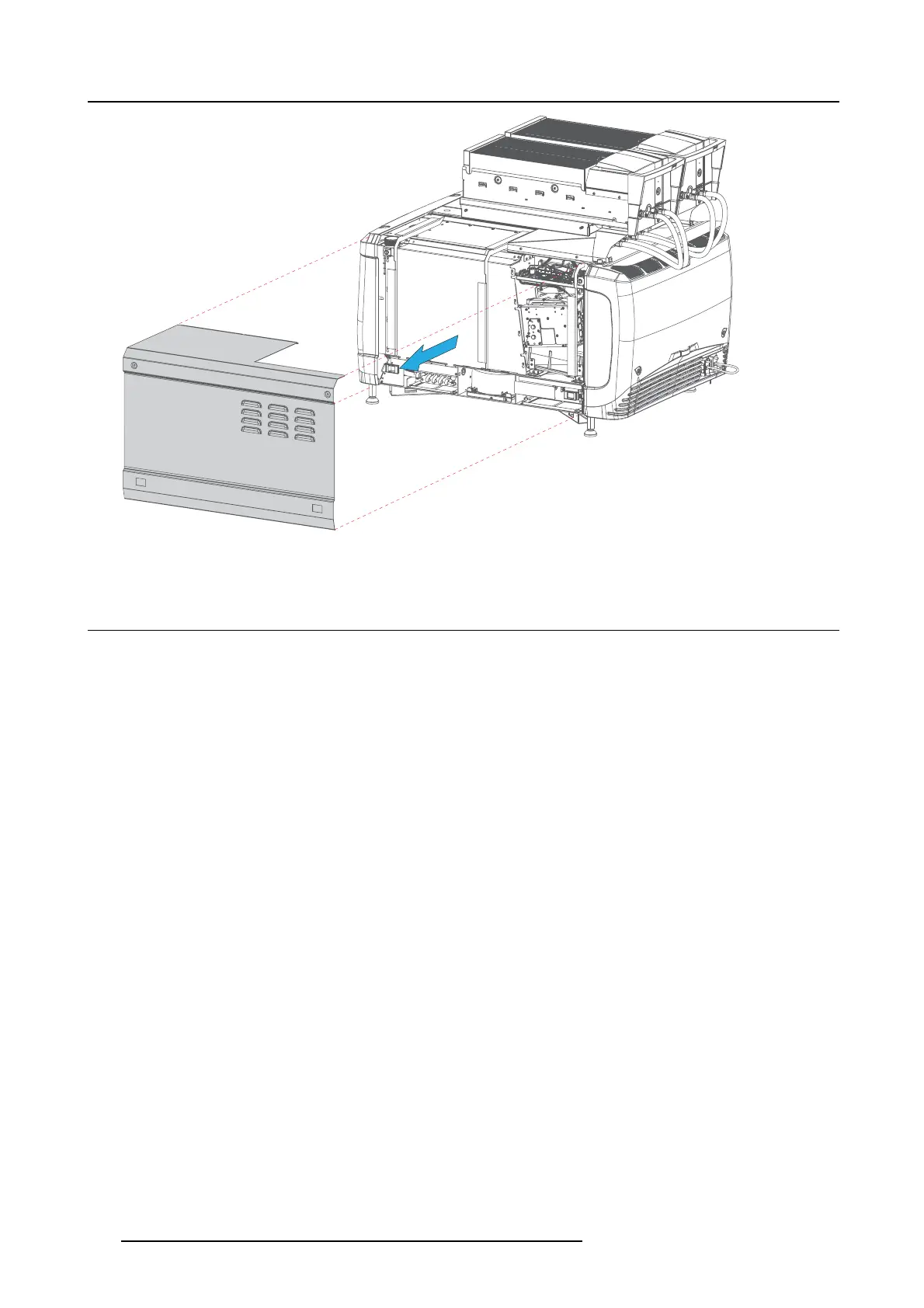

Image 12-12
Side co ver
12.6 Installation of the front cover
Necessary tools
Flat screwdriver
How to install
1. E nsur e that no lens is mounted.
2. E xec ute the next steps to install the front cover:
a) Ho ok the bottom side of the cover to the projector.
b) Gently push the top side of the cover into positi
on.
c) Ensure that the locking studs click into their rec eivers.
128
R5906753 DPXK BLP SERIES 20/11/2017
