12. Removal and installation of the projector covers

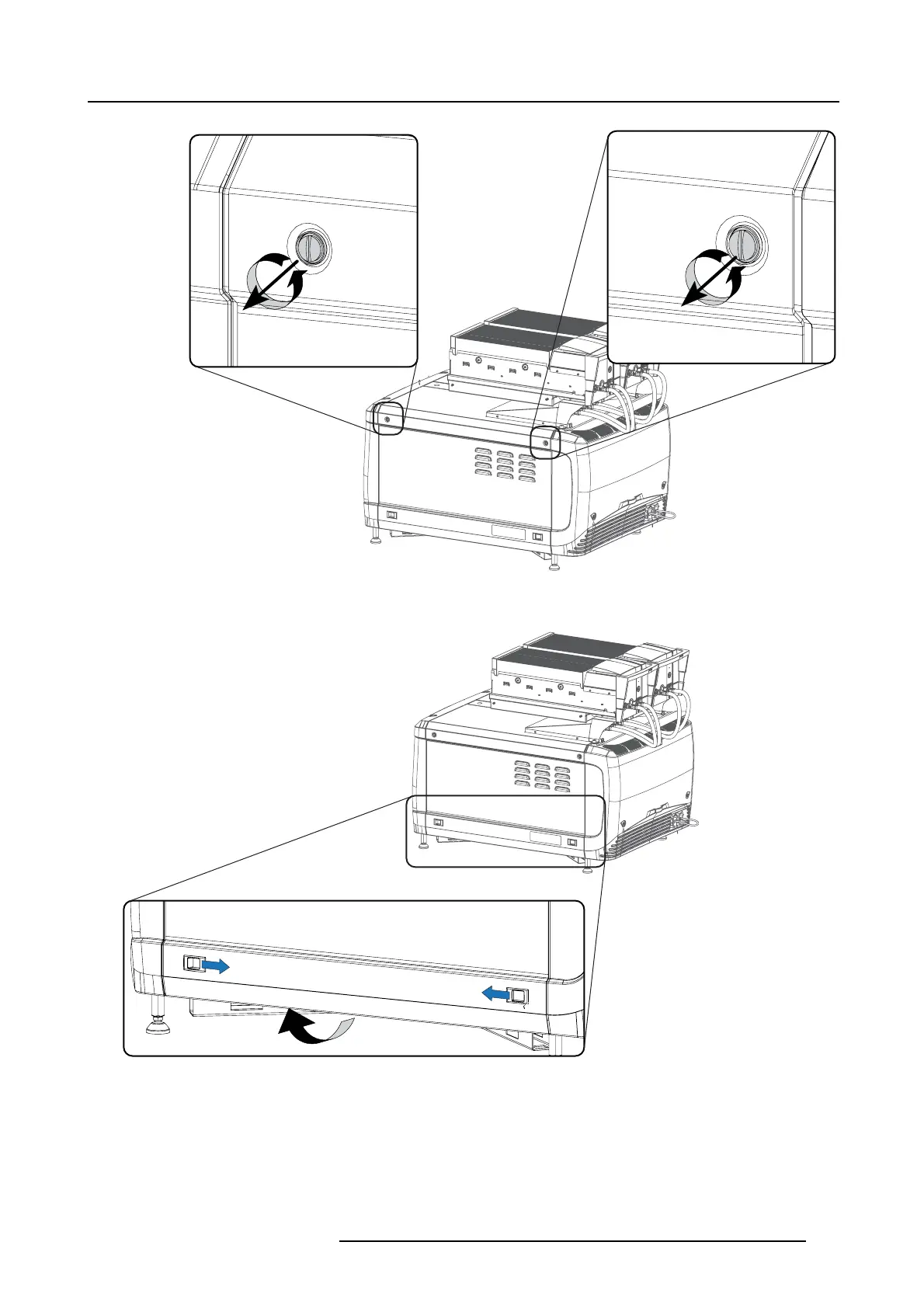

Image 12-10

Captive screws

2. P ush both lock to eac h other to release the locks and pull at the sam e time the bottom side of the cover away form the projector.

Image 12-11

Unlock side cover

3. Take off the c over.

R5906753 DPXK BLP SERIES 20/11/2017

127
