6. Physical installation stand alone cooler

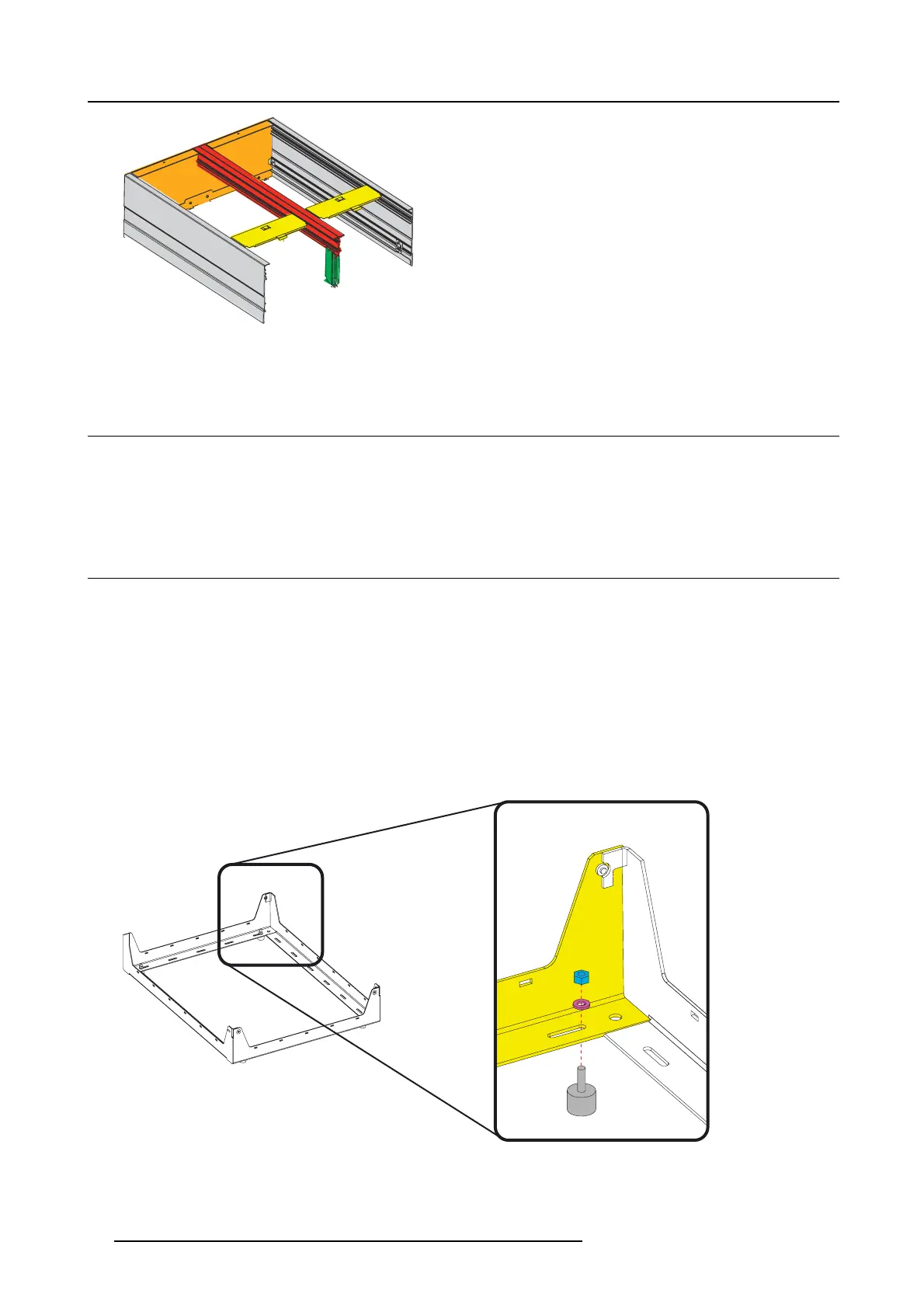

Image 6-7
For m ore info about how to asse mble the cooler housing, see "Assembling the housing", page 37.
6.3 Mounting the cooler housing on the cooler f rame
What has to be done?
The co oler hous ing must be placed on the c ooler fram e and correctly fixed on it. For more info about how to mount the cooler
housing on the cooler frame, see "Mounting the housing on the frame", page 43.
6.4 Preparing the stand alone frame
Necessary tools
• Allenkey3mm
• Nut driver
Necessary parts
• Stand alone frame
• 4 feet ( floor mounting option)
Floor mounting
To install the s tandalone cooler in floor mounting mode follow this procedure:
1. M ount the 4 feet in suc h a way that the frame can stand s table. E.g. 2 on eac h short side or 2 on each long s ide.
Image 6-8
2. P ush the threat axle through one
of the holes and secure with a washer and a nut.
Continue with "Installing the brack ets on the cooler housing", page 55.
54
R5906753 DPXK BLP SERIES 20/11/2017
