6. Physical installation stand alone cooler

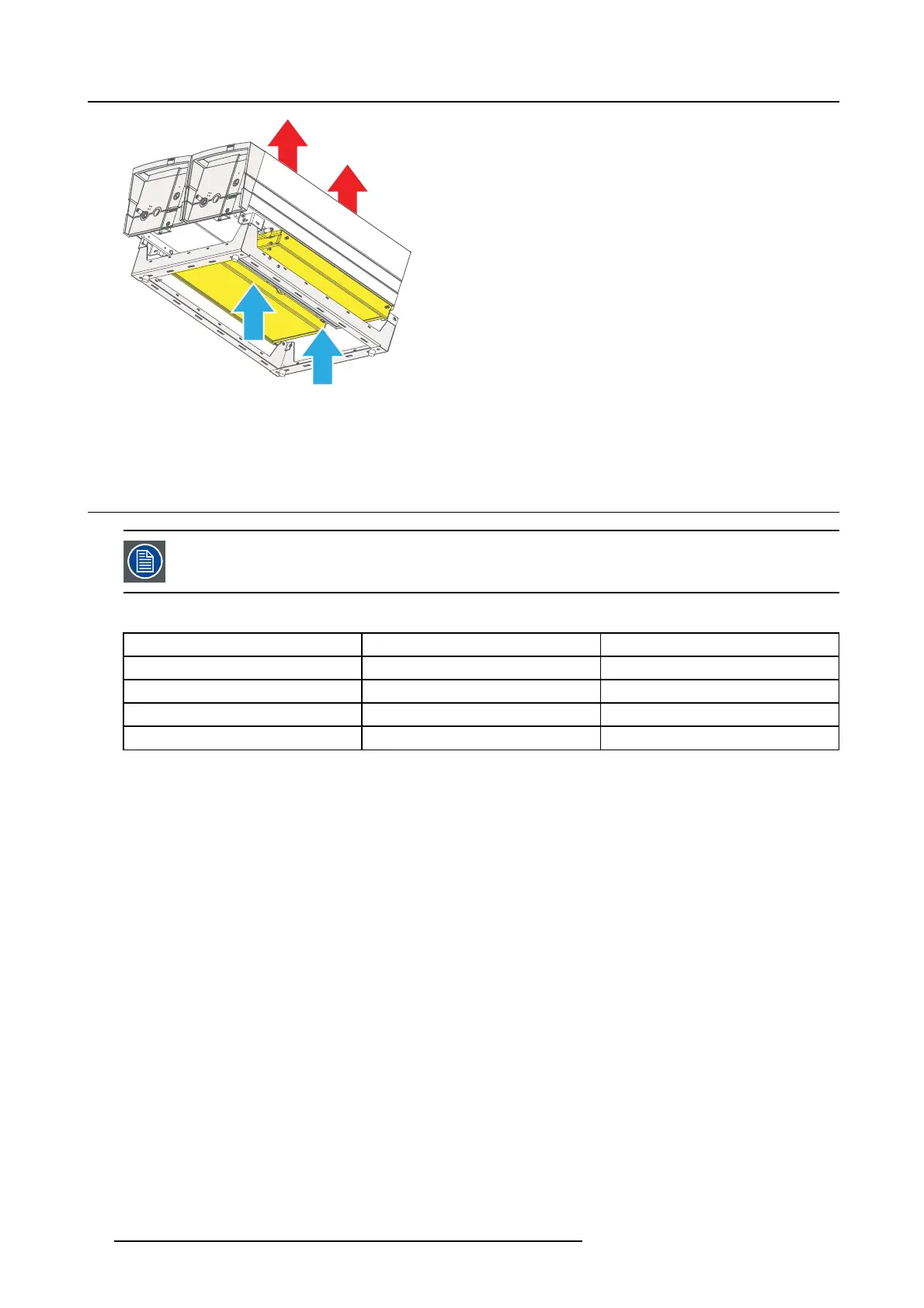

Image 6-19
3. P lace the cover plate back on its location and drive in b oth xation screws by hand.
Note: Please, don’t use any tool! Only hand tighten these screws.
6.9 Cabling and tubing
Always conn ect t he right cooler w ith right group of connectors at the backside of the projector. Connect the
left cooler with the left group of connectors at the backside of the projector.
Tubing
From projector connector plate To cooler
Tube 1 1f 1m
Tube 2 1m 1f
Tube 3 2f 2m
Tube 4 2m 2f
60 R5906753 DPXK BLP SERIES 20/11/2017
