15. Convergence
1

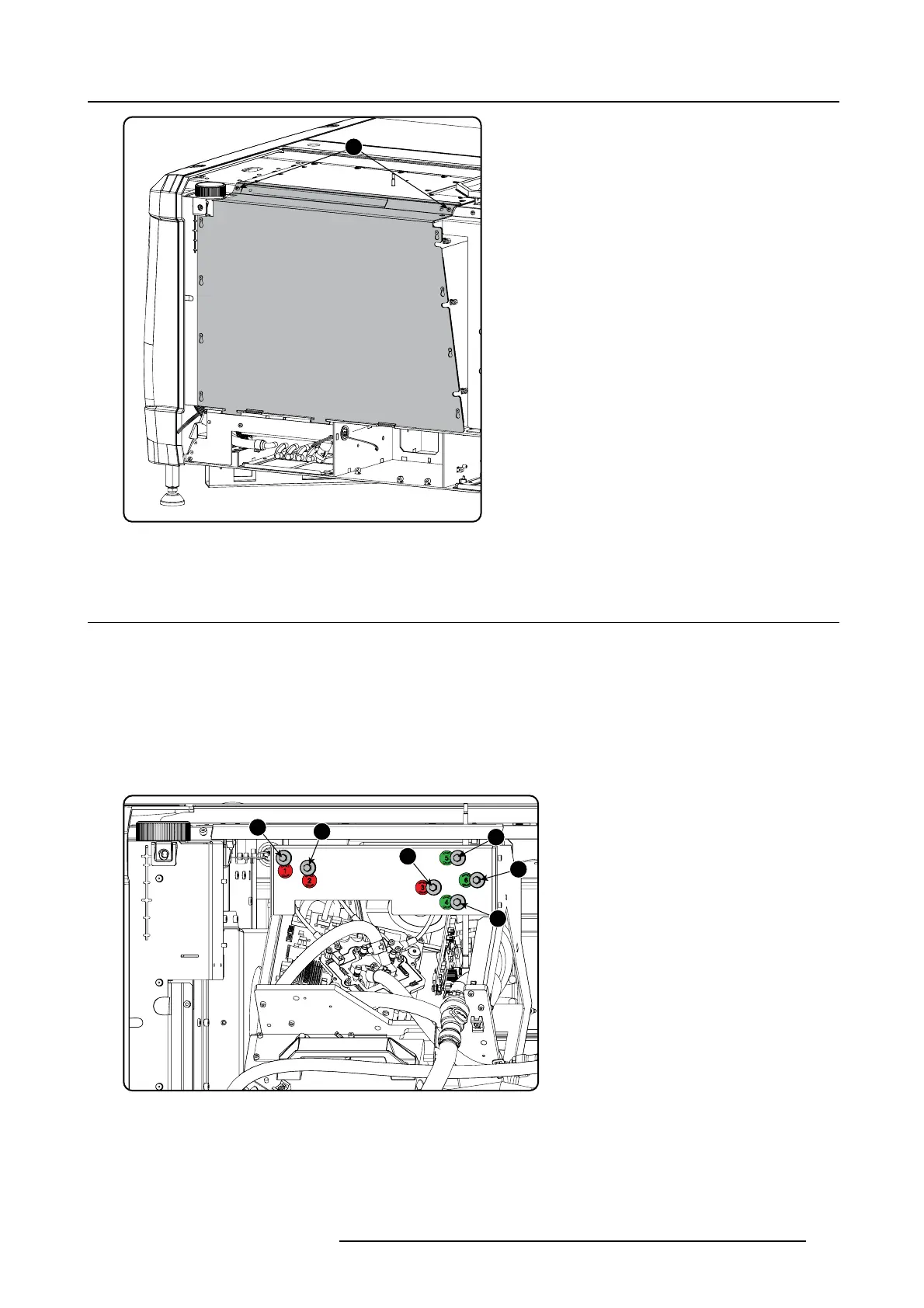

Image 15-4
Sealed cover, fixation
15.3 Convergence controls
Definitions-Abbreviations
• X: Horizontal d irection on the screen, with origin in the centre of the screen an d + to the right
• Y: Vertical direction on the screen, with origin in the cen tre of the screen and + to the top
• Z rotation: Tilting of the X and Y axes in their plane: + is clockwise rotation
• [1] ; [2] ; [3] ; [4 ] ; [5] ; [6] : these ar e the 6 adjustments available as they appear on the standard convergence adjustment
screen.
Convergence controls, location
1
2
3
4
5
6
Image 15-5
Convergence knobs
1 Red channel, knob number 1 (position of knob can slightly differ)
2 Red channel, knob num ber 2
3 Red channel, knob num ber 3
4 Green channel, knob number 4
5 Green channel, knob number 5
6 Green channel, knob number 6
R5906753 DPXK BLP SERIES 20/11/2017 151
