15. Convergence
2. To translate RED v ertically in the Y - direction, turn both [1] a nd [2] anti-clockwise. Turn screws in equal increments.
3. To translate RED horizontally in the X + direction, turn [3] clockwise.
4. To translate RED horizontally in the X - direction, turn [3] anti-clockwise.
5. F or clockwise rotations of RED, turning [1] anti-clockwise would generally sufce. If much rotation is required, [2] may als o be
turned in the opposite direction. Slight corrections to Y may be required after rotation.
6. F or anti-clockwise rotations of RE D, turning [1] clockwise would generally sufce. If much rotation is required, [2] may also be
turned in the opposite direction. Slight corrections to Y may be required after rotation.
2
3
1
1
1
1
Red

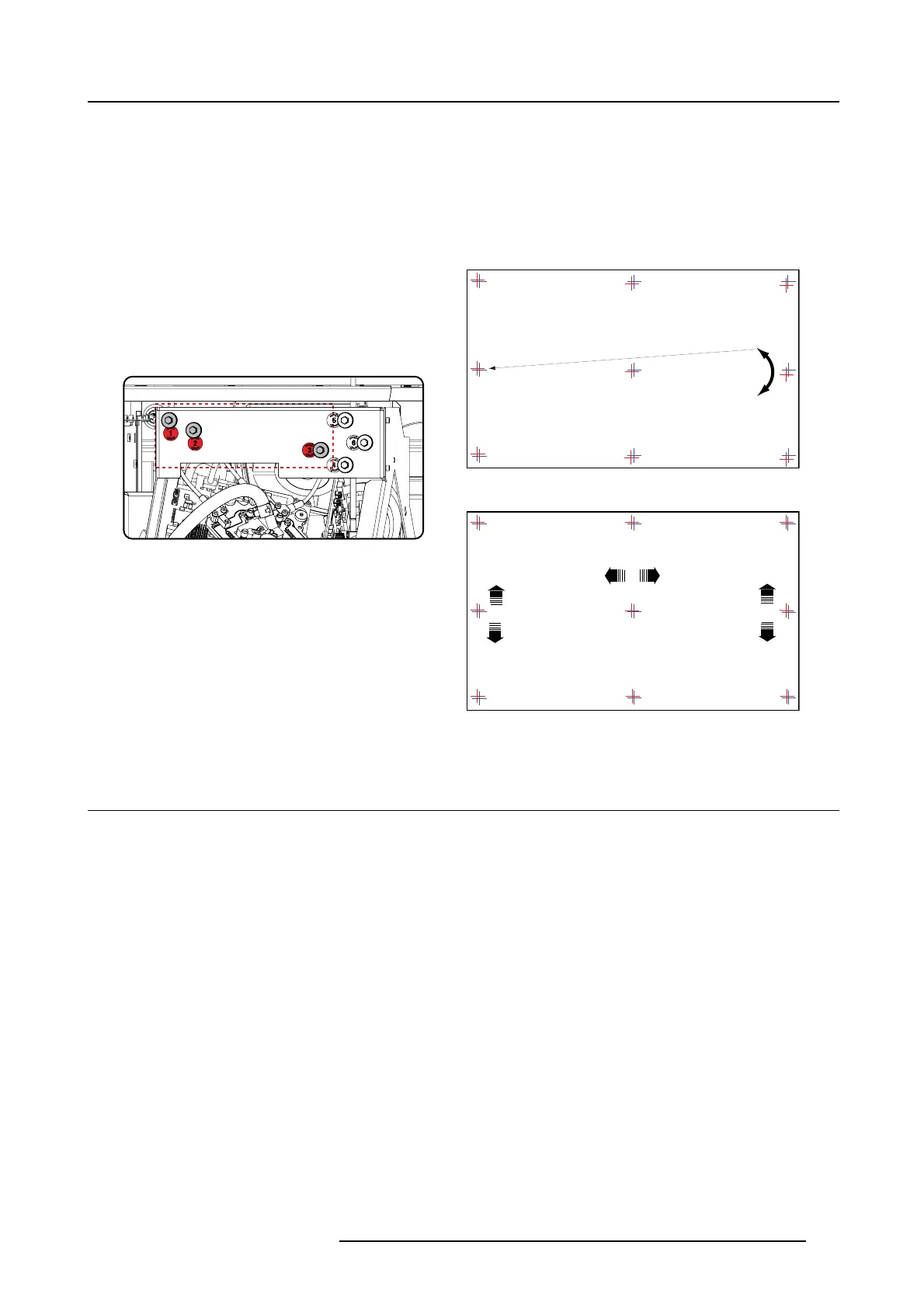

Image 15-7
Red on blue convergence
15.5 Green on blue convergence
Necessary tools
No tools.
Converging the GREEN pattern onto the BLUE pattern
Next , align the GREEN DMD in the vertical directions [4] and [5] and then proceed with t he horizontal d irection [6].
1. To translate GREEN vertically in the Y + direction, turn both [4] and [5] clockwise. Turn screws in equal increments.
2. To translate GREEN vertically in the Y - direction, turn both [4] an d [5] anti-clockwise. Turn screws in equal increments.
3. F or clockwise rotations of GREEN, turning [5] anti-clockwise would generally sufce. If m uch rotation is required, [4] may also
be turned in the opposite direction. Slight corrections to Y may be required after rotation.
4. F or anti-clockwise rotations of GREEN, turning [5] clockwise would generally sufce. If m uch rotation is required, [4] may also
be turned in the opposite direction. Slight corrections to Y may be required after rotation.
5. To translate GREE N hor izontally in the X + direction, turn [6] clockwise.
6. To translate GREEN horizon tally in the X - direction, turn [6] anti-clockwise.
R5906753 DPXK BLP SERIES 20/11/2017
