9.10 ICM P HDD status LEDs
ICMP HDD status LEDs
54

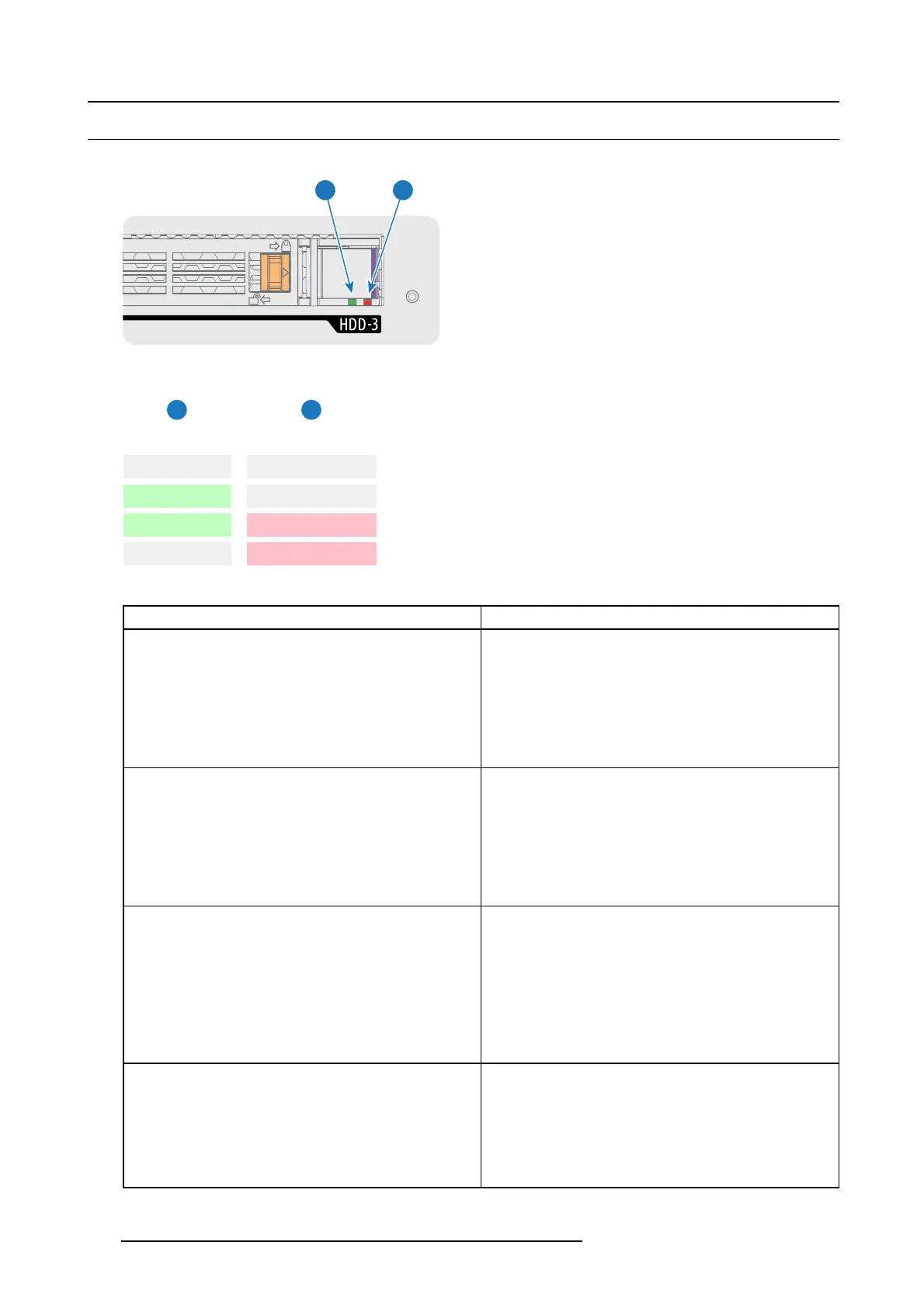

Image 9-10
Status overview P W R/ERROR and READY LED s:
4 5
HDD I/O
RAID
ICMP HDD Status
Off Off HDD idle / Disk in R AID O K.
Blinking Green Off HD D I/O activity / Disk in RAID OK .
Blinking Green
Blinking Red
HDD I/O activity / RAID rebuilding.
Off Red HDD idle / Disk error. See troubleshooting table below for curative actions.
Troubleshooting
Situation Solution
Onediskfailed(redLED)+RAID degraded.
The ongoing event is not interrupted.
Note: The disk status (RAID degraded) ca n be retrieved via the
(Web) Commander. S ee user guide of the (Web) Commander.
1. Switch off the power.
2. Replace the defect HDD with approved model of the
same storage capacity. See procedure "Rem oving a HDD
from the ICMP", page 11 0, and "Installing a HDD into the
ICMP", page 111. Ensure to insert the HDD firmly.
3. Switch on the power.
Result: As soo n the new HDD is detected by the ICM P the
rebuild of the RAID is started (Blinking red LED) .
One disk failed (red LED) + E rror 10580 “local storage not
available”.
Note: The disk status ( Error code) can be retrieved via the
(Web) Commander. S ee user guide of the (Web) Commander.
1. Switch off the power.
2. Replace the defect HDD with approved model of the
same storage capacity. See procedure "Rem oving a HDD
from the ICMP", page 11 0, and "Installing a HDD into the
ICMP", page 111. Ensure to insert the HDD firmly.
3. Switch on the power.
Result: As soo n the new HDD is detected by the ICM P the
rebuild of the RAID is started (Blinking red LED) .
Multiple disks failed (multiple red LEDs ) + RAID broken.
Note: The disk status (RAID broken) can be retrieved via the
(Web) Commander. S ee user guide of the (Web) Commander.
1. Switch off the power.
2. Replace all defect HDDs with approved m odels of the
same storage capacity. See procedure "Rem oving a HDD
from the ICMP", page 11 0, and "Installing a HDD into the
ICMP", page 111. Ensure to insert the HDDs firmly.
3. Switch on the power.
4. Start “RAID Initialize”. See user guide of the
Communicator.
Result: a new empty RAID is created.
All HDD LEDs remain off + Error 105 80 “local storage not
available”.
Note: The disk status ( Error code) can be retrieved via the
(Web) Commander. S ee user guide of the (Web) Commander.
1. Switch off the power.
2. Reseat all HDDs. S ee procedure "Removing a HDD
from the ICMP", page 11 0, and "Installing a HDD into the
ICMP", page 111. E nsure to insert the HDD
s firmly.
3. If problem remains try “RAID Initialize”. See user guide of
the Comm unicator. Note that all content will be lost!
4. If p roblem remains contact Service for further instructions.
108 R5906753 DPXK BLP SERIES 20/11/2017
