Barco DP2K-36BLP - Mounting the Housing on the Frame

5. Physical installation top cooler

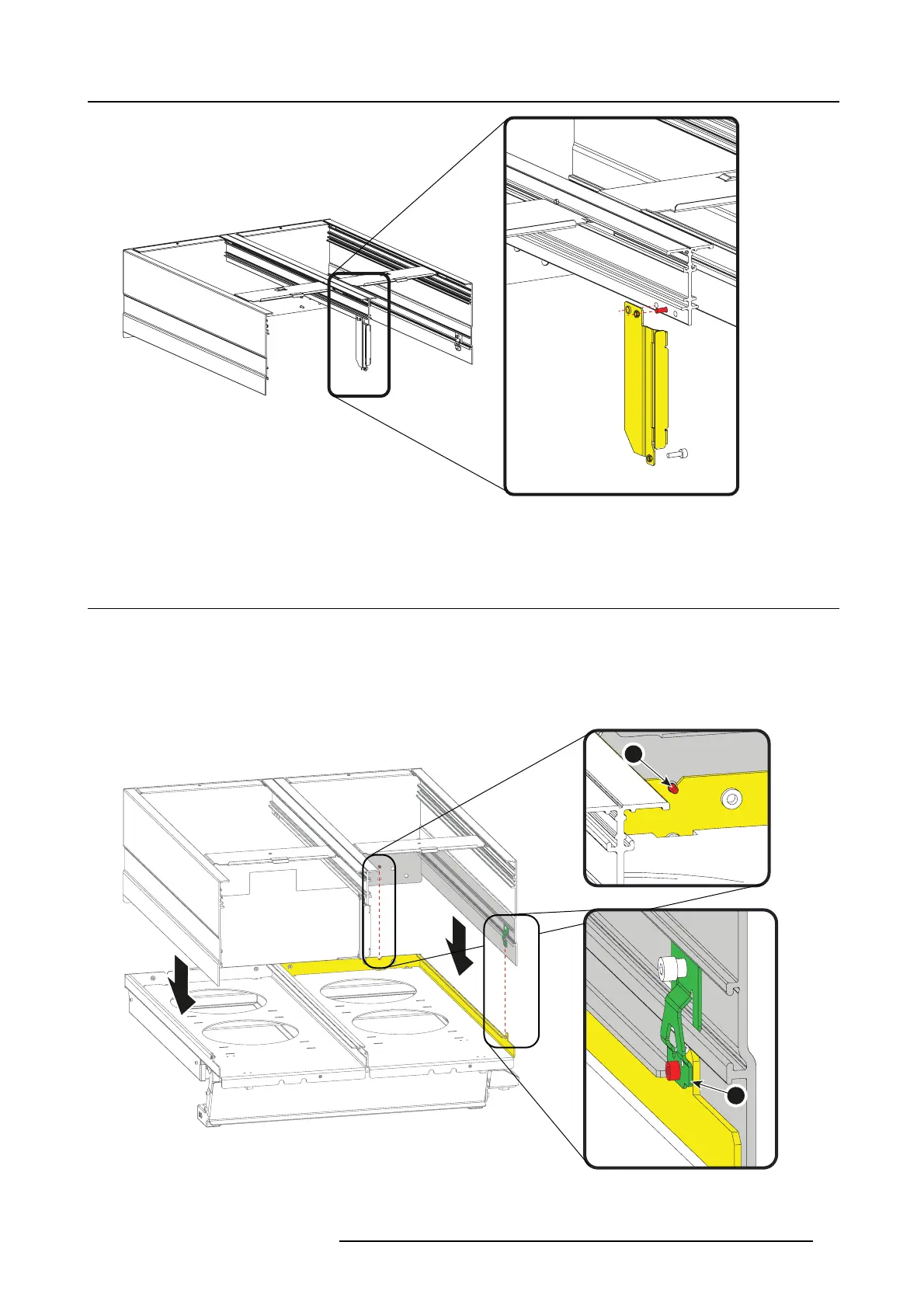

Image 5-9
The housing is ready to be m ounted on the frame.
5.2 M ounting the housing on the frame
Necessary tools
Allenkey3mm
How to mount
1. P lace the housing on the cooler frame so that bo th positioning pins (1) on the housing match the notches in the frame.
1
2
Image 5-10
R5906753 DPXK BLP SERIES 20/11/2017 43
