5. Physical installation top cooler
2. A lso make sure that the frame fits behind the clamp (2). If necessary, slide the c lamp a little b it in the housing. Fixate the clamp
fully so t hat it fits behind the rib on the housing.
Drive in a screw ( M3) to co nnect the clamp to the frame.
Repeat for the other side.
3. P lace the support for the middle bracket on the frame as indicated.
Driveinthefixation screw (M4).

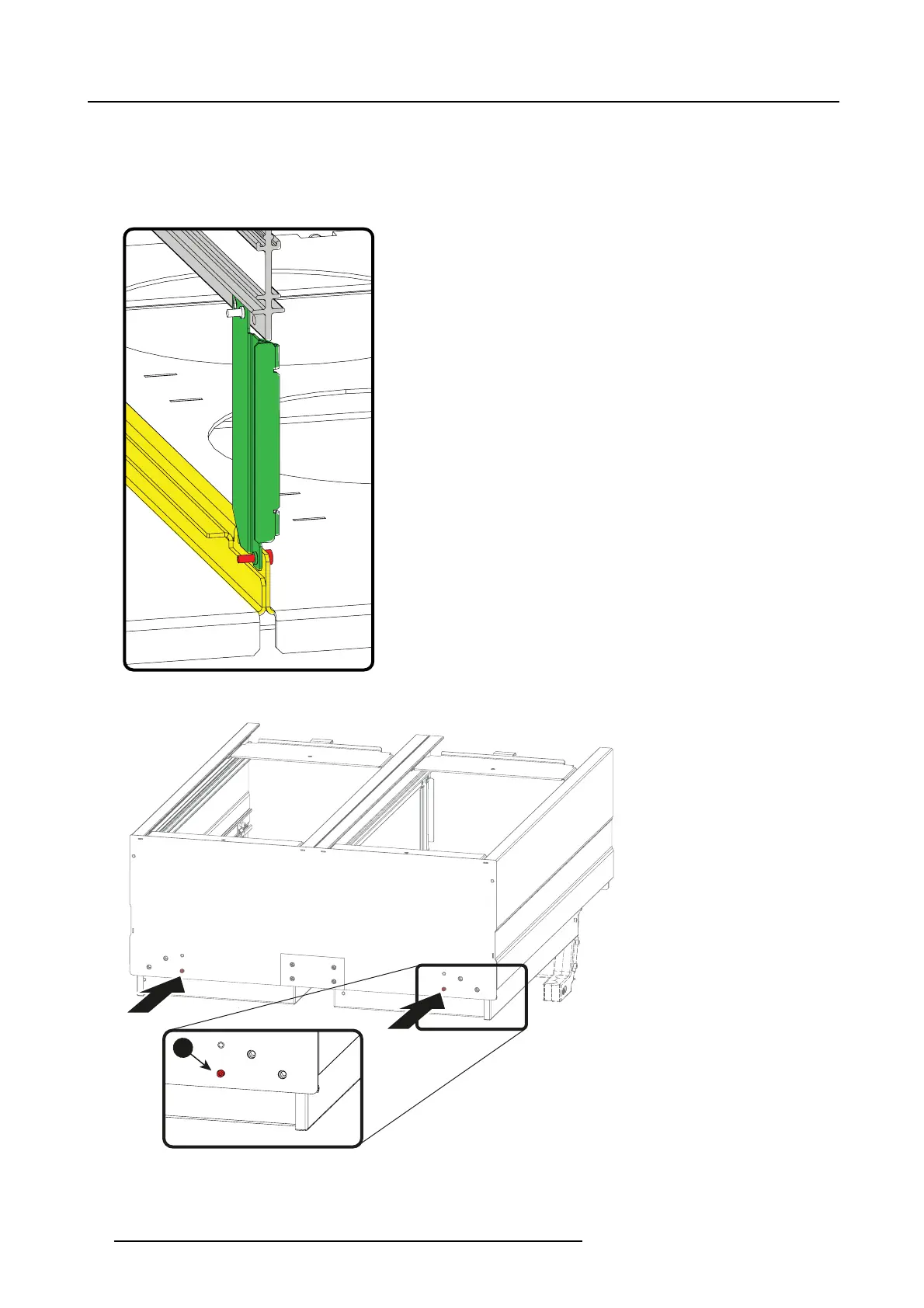

Image 5-11
4. O n the front side, drive in the 2 screws (M4), one at the left and one at right.
1
Image 5-12
Note: Only the hole referenced 1 must be us ed. The other holes around are not used at this s tep of the procedure.
