6. Physical installation stand alone cooler
• Wall mounting: When this option is chosen, the cooler must be fixed on the wall in portrait mode or in landscape mode.
In portrait mode, the cooler mus t be mounted with the cooling tubes up. The other position (cooling tubes down) is not authorized
because coolers are heavy (more or less 15kg) and if the s afety clic f ails and the cooler screw is not fix ed, the cooler w ill sim ply
fall to the ground! In this orientation it is also less practical to remove a cooler for service.

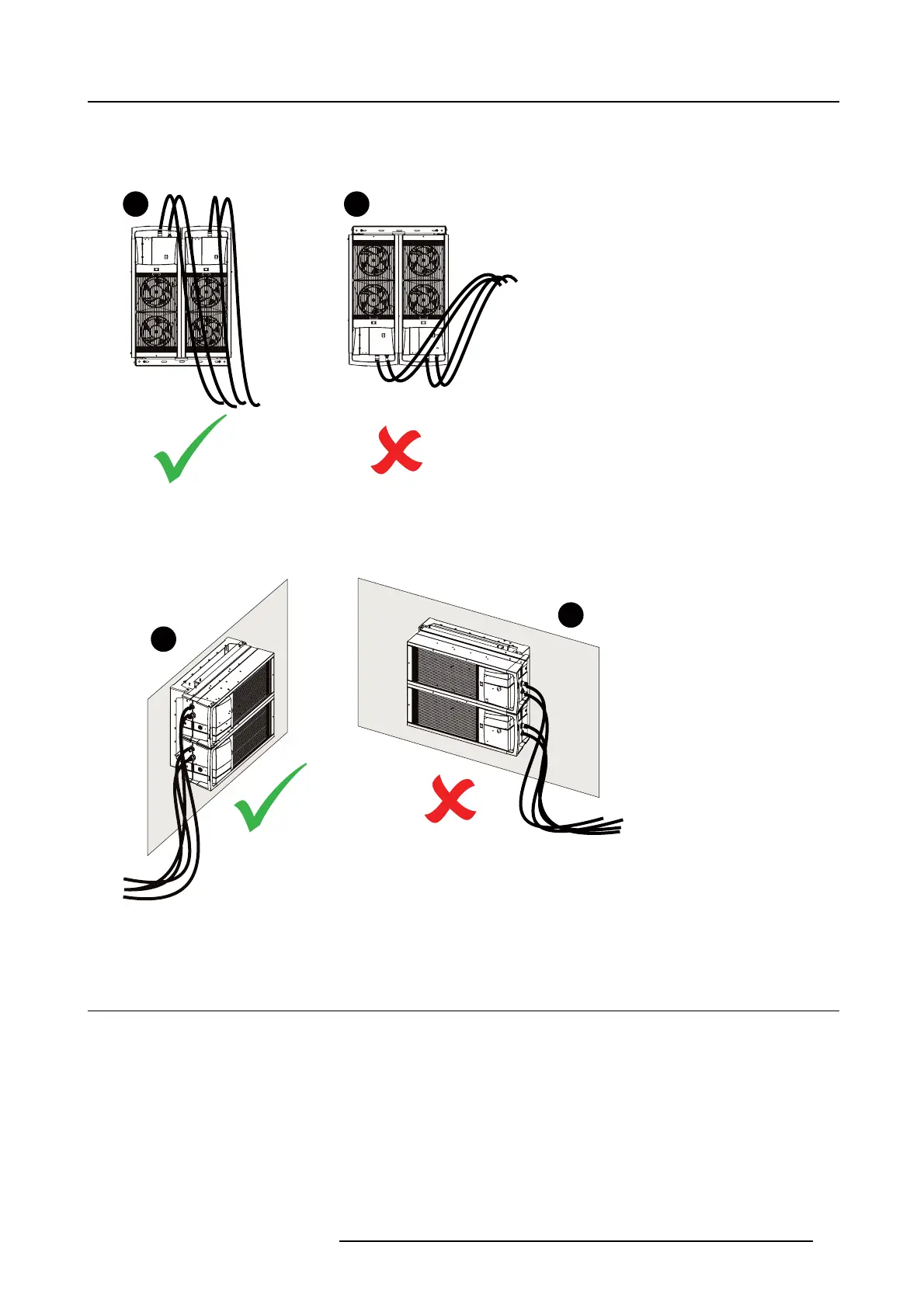

Image 6-5
A Portrait Mode with cooling tubes to the top.
B Portrait Mode with cooling tubes down (not authorized)
In landscap e mode the cooler m ust be mounted with the cooling tubes to the left. The other position (cooling tubes to the right)
is not authorized due to technical constraints. Functioning and lifetime o f internal pump could be impacted if the unit is installed
in this posit ion.
Image 6-6
A Landscape Mode with cooling tubes to the left (only one authorized position).
B Landscape M ode with cooling tubes to the right (not authorized).
6.2 Assembling the cooler housing
What has to be done?
The cooler h ousin
g is d elivered as a kit and must be assem bled during installation.
R5906753 DPXK BLP SERIES 20/11/2017
53
