6. Physical installation stand alone cooler
Details and limitations
Depending the m ounting option chosen, some limitations must be considered:
• Floor mounting: Wh en t his option is chosen, the co oler is installed on a flat and stable surface, in horizontal position. Fo ur
feet c orrec tly distributed (2 on each side) allow stabilize the device. The cooler c ould be tilted forward or back w ard, but for
security reasons it is strongly recommend ed to let the unit in horizontal position, the best way to a void the potential hazards of
falls and slips.
360°
1
x4

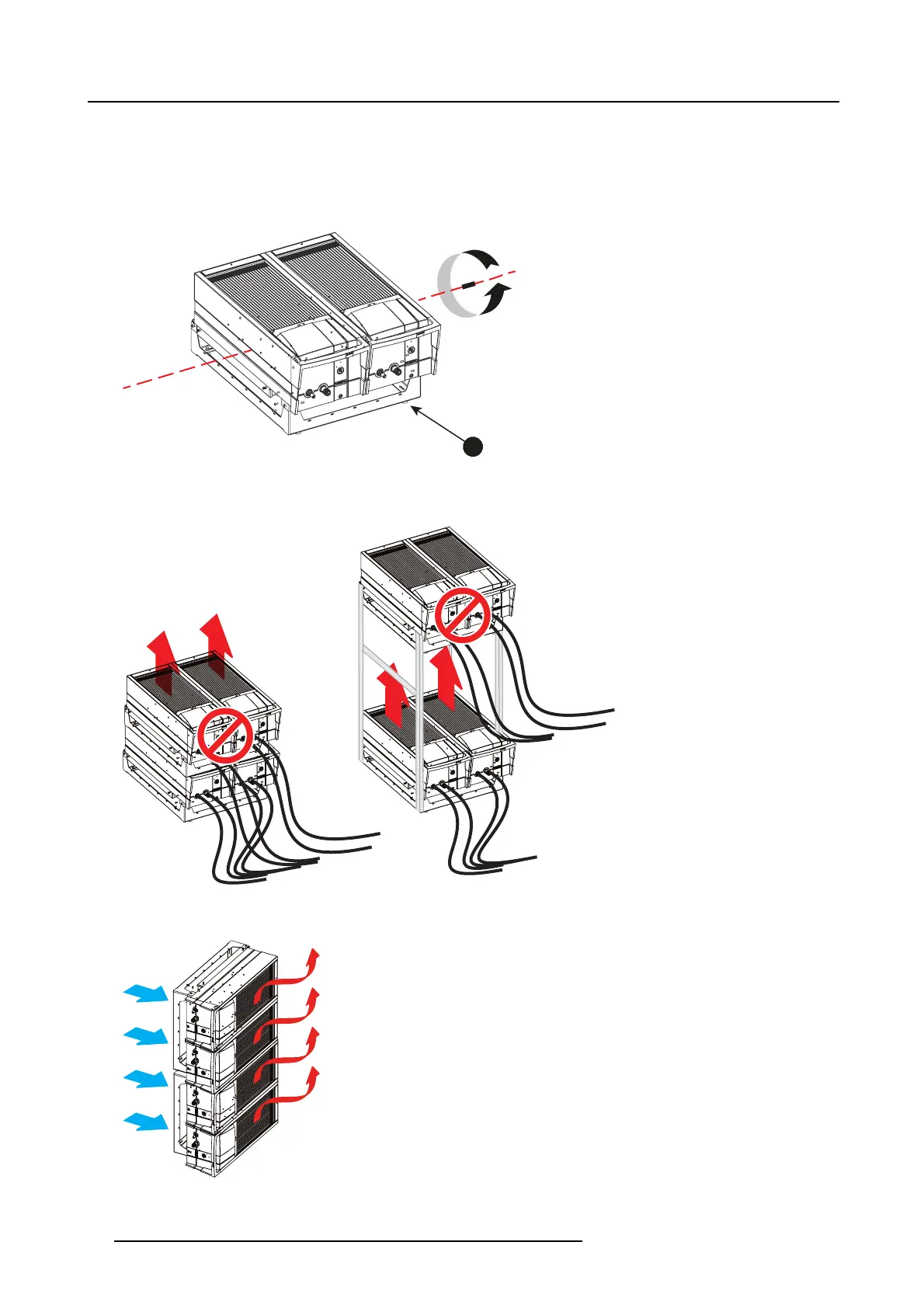

Image 6-2
1 Fo ur feet allo w s t abilize the unit.
Stacking S tandalone coolers: It is NOT allowed to s tack multiple cooler modules on top of each other. The air intake of the
upper c ooler would take in the “hot” air of the lower cooler, e ven at a distance of 1m ap art.
Image 6-3
A Stack of cooler positioned on their sides ma y be cons idered, but in this case, th e direction of the entire coolers need to be
the same, in order to forcing air flow in the same direction.
Image 6-4
Note: This positioning must be secularized with an adapted structure.
