8. Input & communication
8.5 Quad 3G-SDI Input Module (optional)

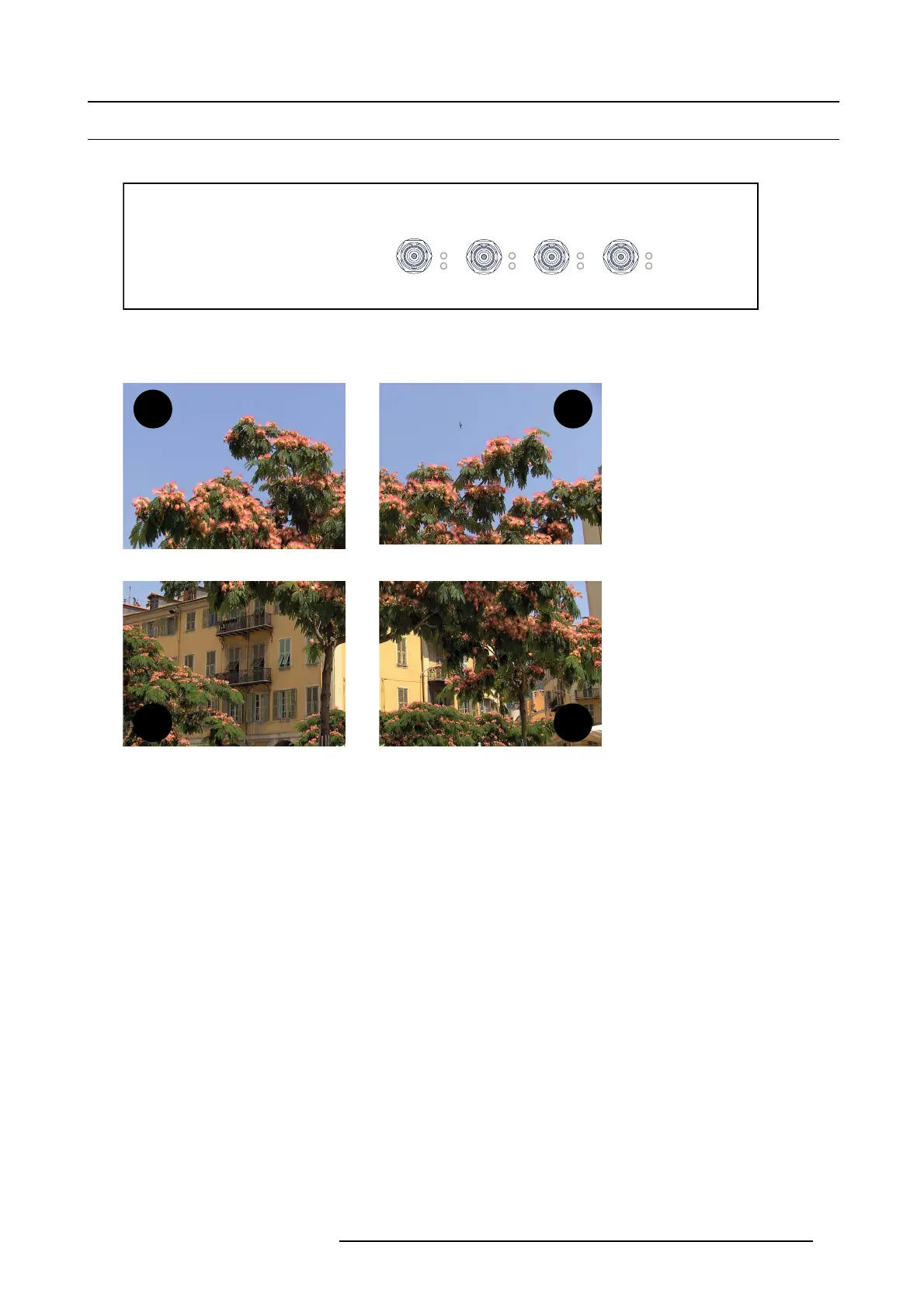

Location and source input ports
SEL
SYNC OK
SEL
SYNC OK
SEL
SYNC OK
SEL
SYNC OK
QUAD 3G/SDI INPUT
ABCD
Image 8-5
The following input c ombinations are possible : A, B, A+B , A+B+C+D
When using all 4 four inputs to cr eate the image connect the quadr ants of the image to the inputs as indicated on the drawing.
A B
DC
Image 8-6
Quadrant connection
To c on figure the input, consult the Comm unicator manua l
R5906753 DPXK BLP SERIES 20/11/2017 85
