8. Input & communication
Gener a l settings
Advanced settings
Source
Port Port type Mode
Scan type Color
space
Pixel m apping
Calibration
3G - Level B - Quad
Link
3G - Level A - Quad
Link
Progressive S F - 2nd
field dominant
XYZ/RGB
3G - Level B - Quad
Link
Single
Progressive
YCbCr HD-SDI - Quad Link Single
Progressive SF - 1st
field dominant
YCbCr HD-SDI - Quad Link Single
HD-SDI - 4K
4:2:2 10
bits/color
Progressive S F - 2nd
field dominant
YCbCr HD-SDI - Quad Link Single

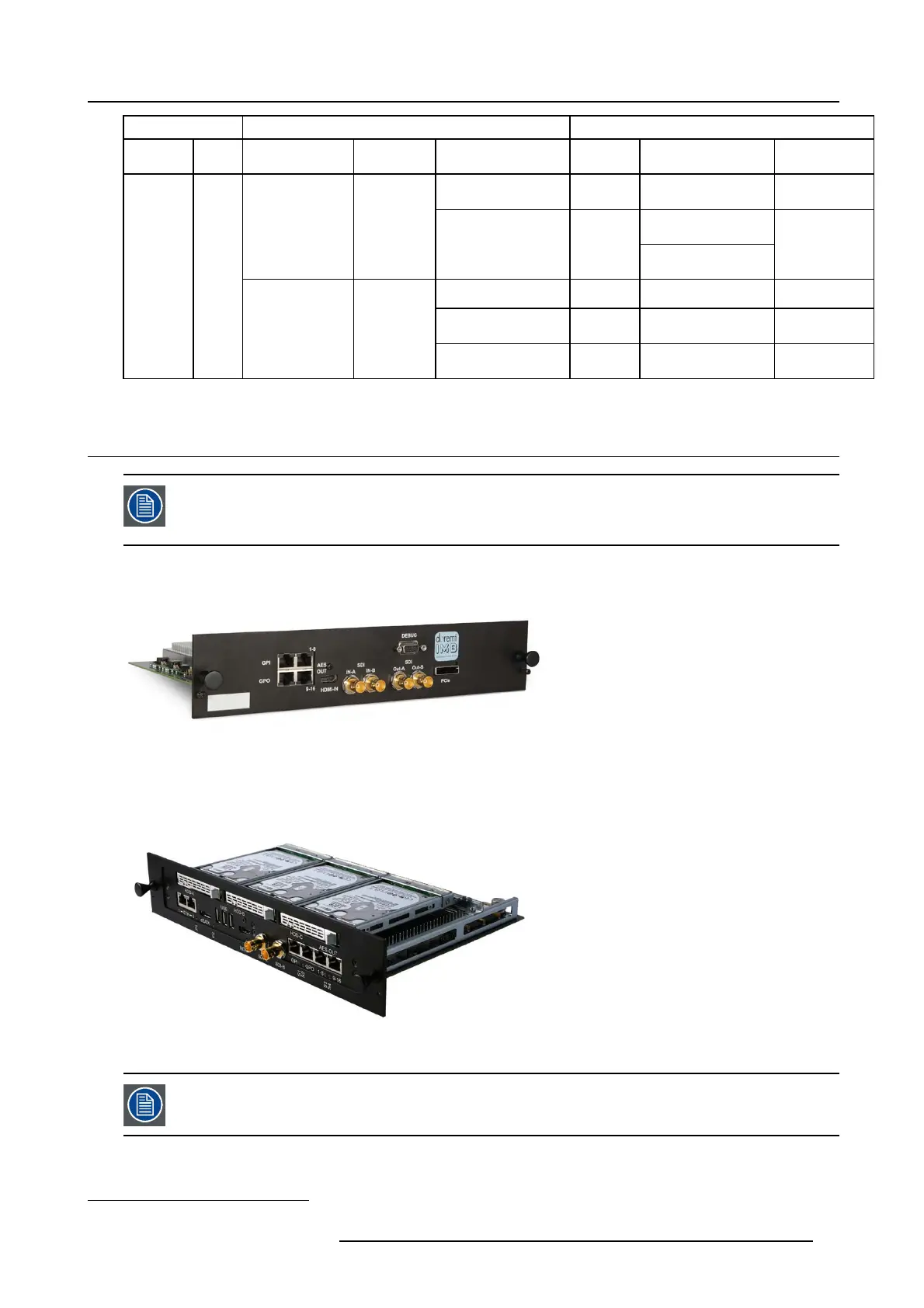

8.6 Integrated Media Block/Server (optional)
Depending on the projector configuration the projector card cage is either equipped with an ICP or ICMP. In
case an ICP is installed then an IMB, IMS, or HDSDI input module can be optionally inserted into the slot below
the ICP. This is n ot the case if the I CMP is installed. Fo r more informa tion ab out the ICMP see chapter called
ICMP.
Integrated Media Block (IMB)
Image 8-7
Example of IMB powered by Doremi.
Integrated Media Server (IMS)
Image 8-8
Example of IMS powered by Doremi.
Configuration and ope
ration instructions for I MB and IM S are not included in this document. See manufactur-
ers website of the installed IMB/IMS for technical documentation and s upp ort.
1. Only for Quad input board (this is a split screen setting, when selected, it turns on split-screen)
