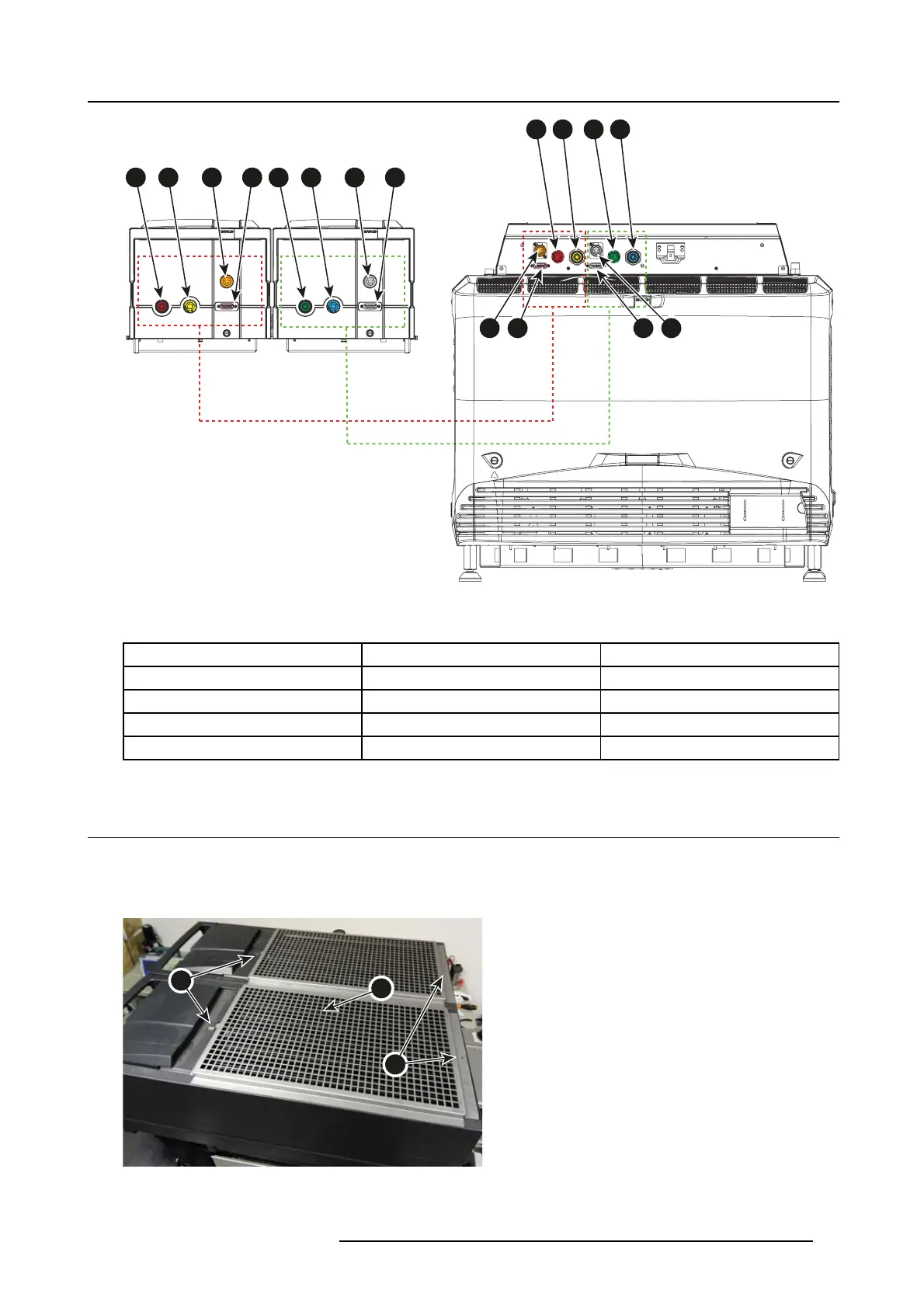

6. Physical installation stand alone cooler
1m 1f 1a 1b 2m 2f 2a 2b
1f 1m 2f 2m
1a 1b 2b 2a
Image 6-20
Cabling & tubing
Cabling
From projector connector plate To cooler
XLR c able 1 1a 1a
Control cable 1 1b 1b
XLR c able 1 2f 2m
Control cable 2 2b 2b
6.10 Mount protection grid f or the LCM cooler modules (option)
General
An m etal grid (with two fixing screws) is provided in the delivery package. This optional grid can be u se to protect the radiators from
damage due to direct blows or falling objects and such.
1
3
2
Image 6-21
1 Metal grille
2 Fixation tabs
3Screws
R5906753 DPXK BLP SERIES 20/11/2017 61
