12. Removal and installation of the projector covers

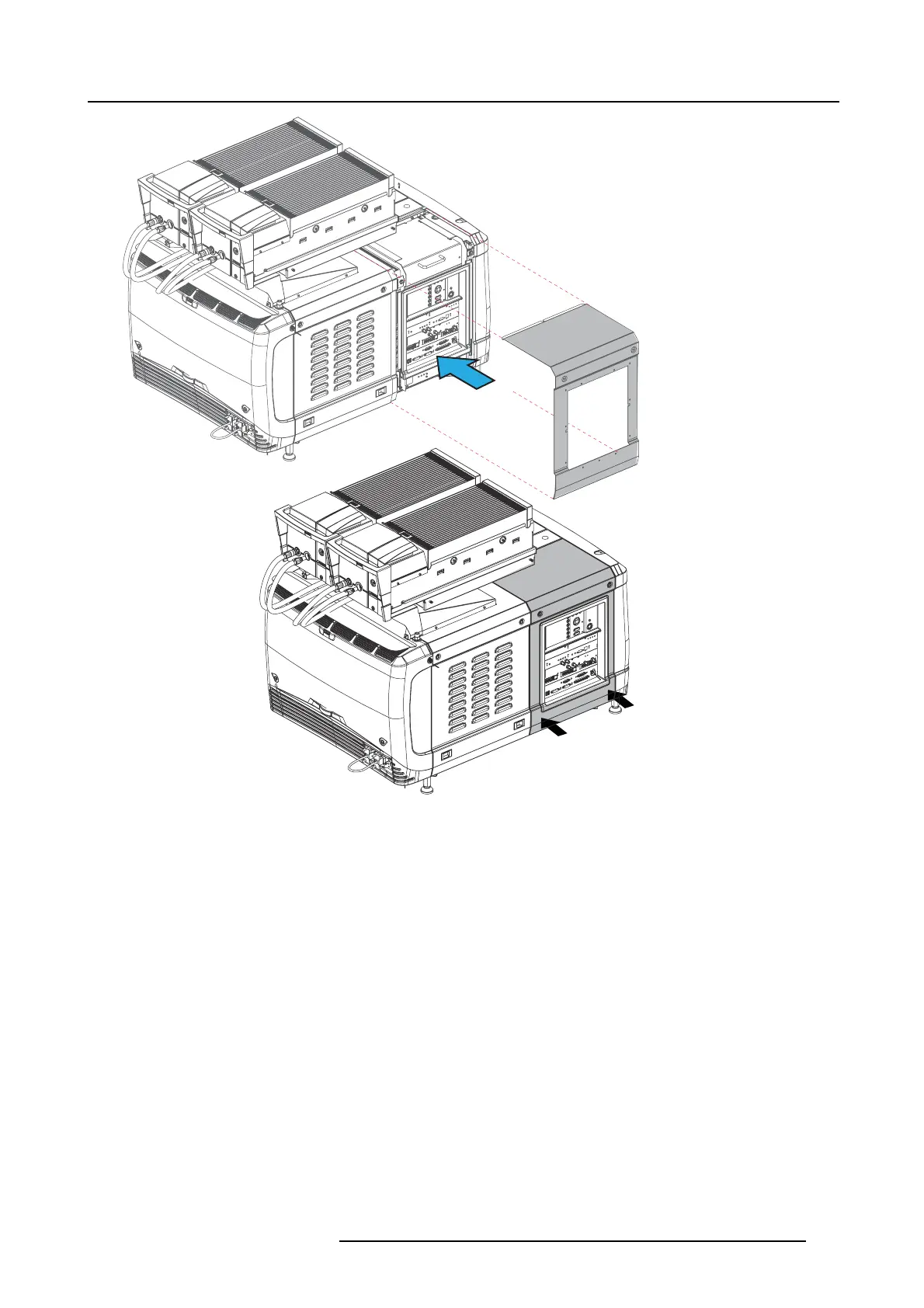

Image 12-15

Mount input cover

2. G ently move the bottom side of the cover towards the projector and push the bottom side until the locking studs click in the

receivers.

R5906753 DPXK BLP SERIES 20/11/2017

131
