12. Removal and installation of the projector covers

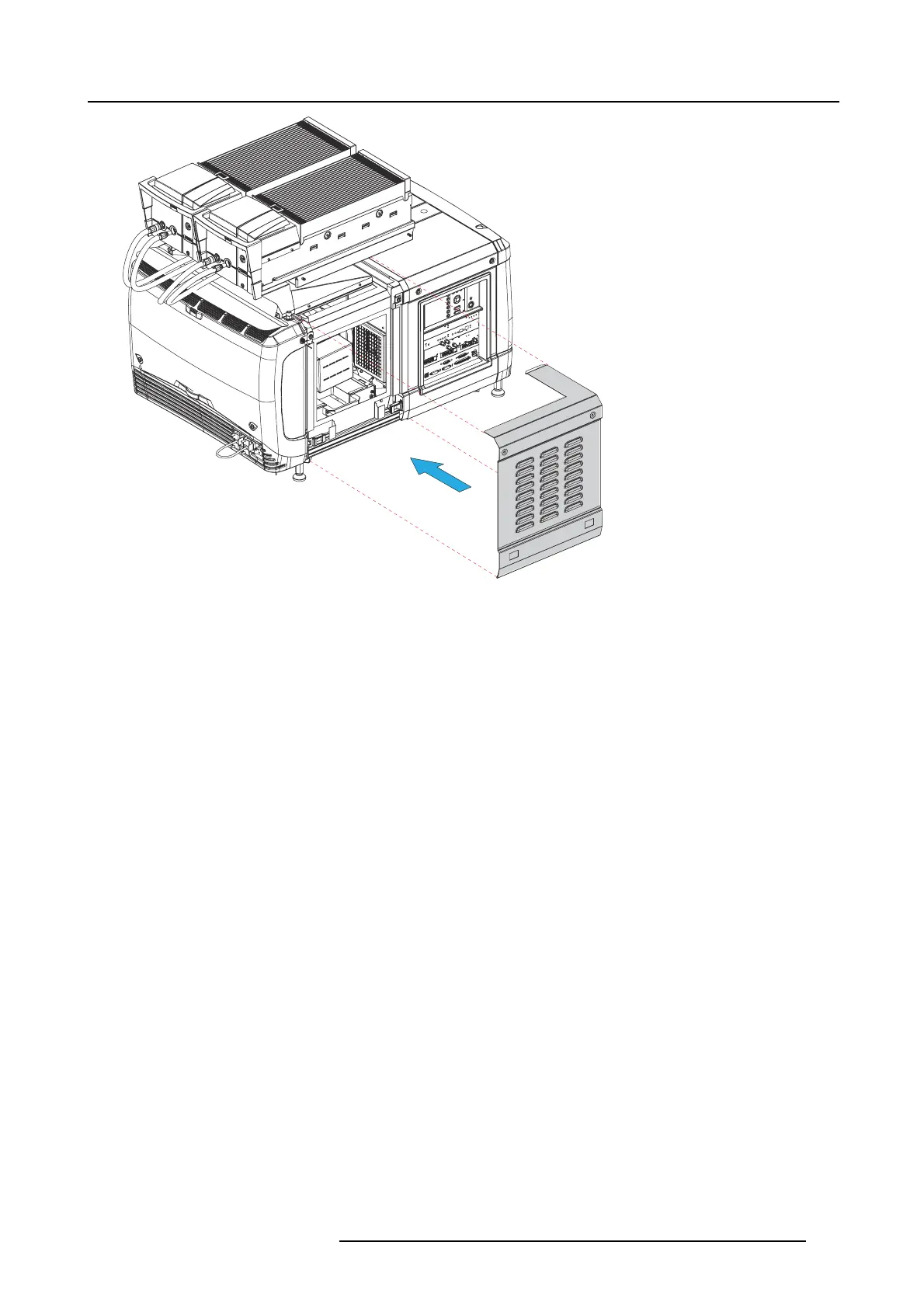

Image 12-17
Mount lamp cover
Close t he cover as follow:
a) Gently move the bottom side of the cover towards the projector
b) P ush both lock to each other and pus h at the same time the cover against the projector frame.
c) Release both locks so that they lock in their rec eivers.
2. Secur e the cover by f a stin g both captive scr e w s.
R5906753 DPXK BLP SERIES 20/11/2017
133
