7. Lenses & lens holder

1

F

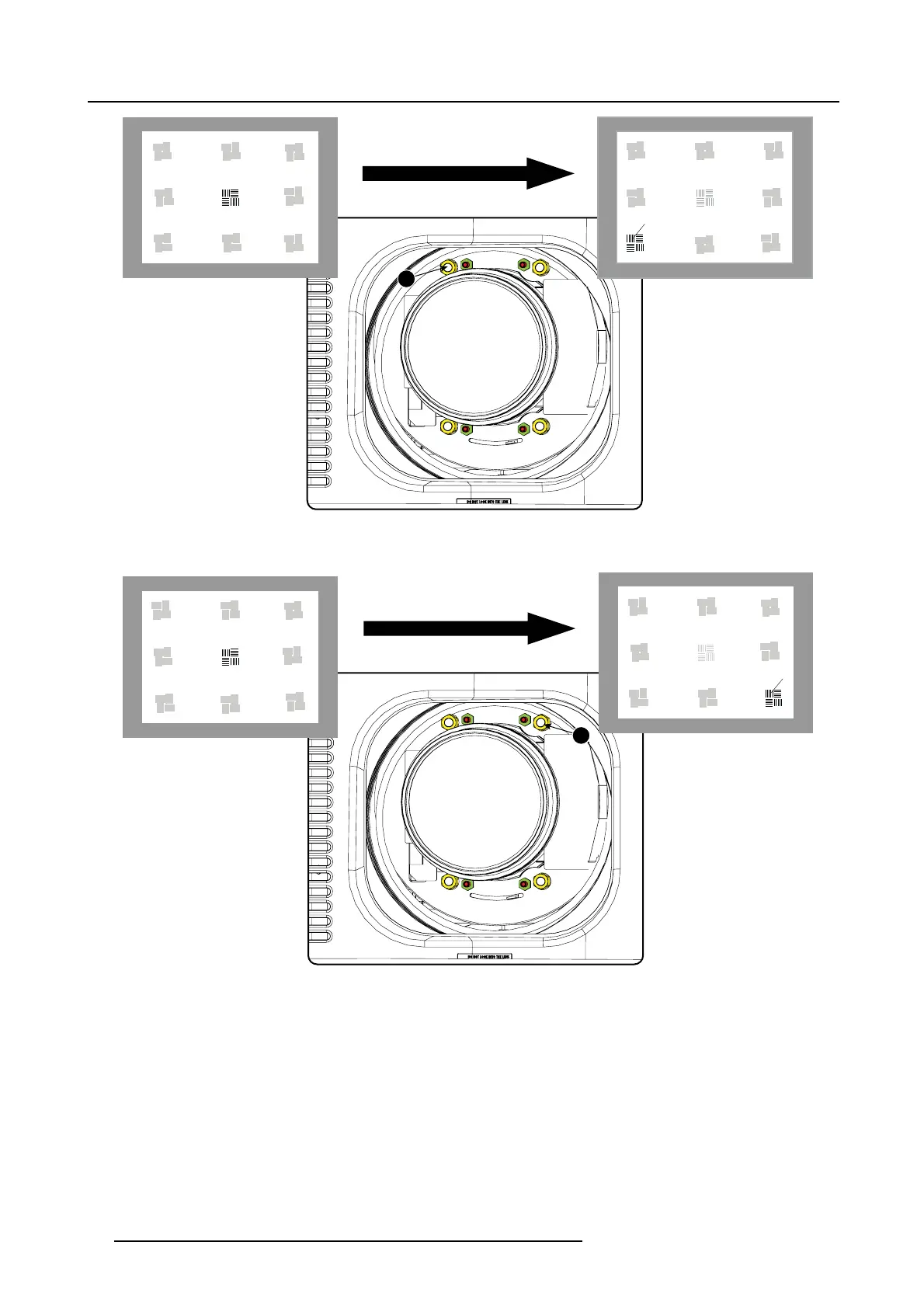

Image 7-33

Left bottom focusing

7. S harpen bo ttom right corner of the screen by adjusting nut 2.

2

F

Image 7-34

Right bottom focusing

8. S harpen top right corner of the screen by adjusting nut 3

76

R5906753 DPXK BLP SERIES 20/11/2017
