8. Input & communication
RS232
An Electronic Industries Association (EIA) serial digital interface standard specifying the characteristics of the com mu-
nication path between two devices using either D-SUB 9 pins or D-SUB 25 pins connectors. This standard is used for
relatively short-range communications and do es no t specify balanced control lines. RS-232 is a se rial control standard
with a s et number of cond uctors, data rate, word length and type of connector to b e use d. T he standard specifies com -
ponent connection standards with regard to computer interface. It is also called RS-232-C, which is the third version
of the RS -232 standard, and is functionally identical to the CCITT V.24 standard. Logical ’0’ is > + 3V, Logical ’1’ is < -
3V. The range between -3V and +3V is the transition zone.

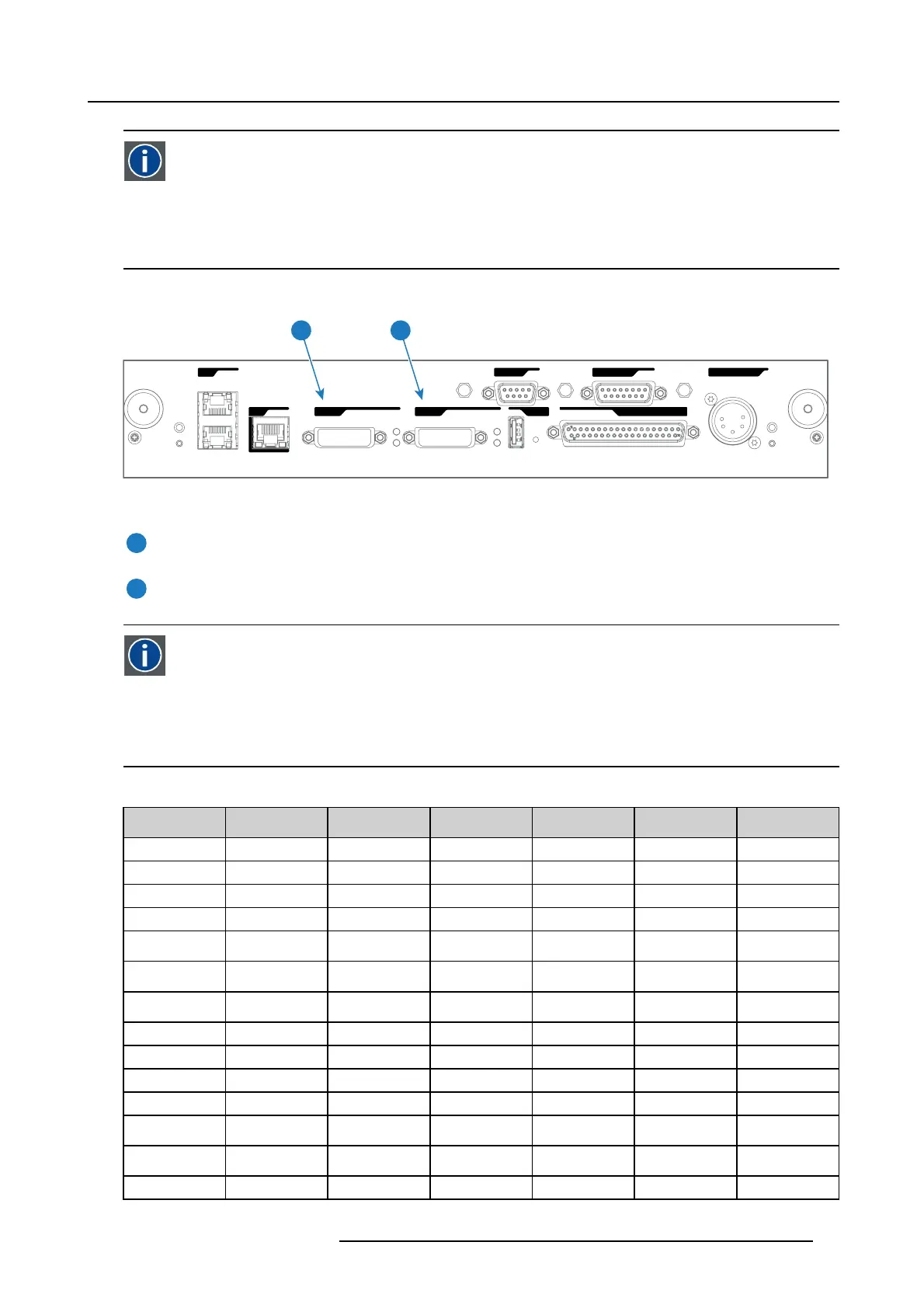

Location of the source input ports (DVI)
PERIPHERAL PORT
WAN
LAN
GENERAL INTERFACE I/0USB 2.0DVI IN A
DVI IN B
RS 232 IN 3D INTERFACE
8 9
Image 8-10
Legende
8
DVI-D input, port A, Single link + HD CP
9
DVI-D input, port B, Single link + HD CP
DVI
Digital Visual Interface is a display interface developed in
response to the proliferation of digital flat panel displays.
The digital video conn ectivity standard that was developed by DDWG (Digital Display Work Group). This connection
standard offers two different connectors: one with 24 pins that handles digital video signals only, and one with 29 pins
that hand les both digital and analog video. This standard uses TMDS (Transition Minimize d Differential Signal) from
Silicon Image and D DC (Display Data Channel) from VESA (Video Electronics Standards Association).
DVI can be s ingle or dual link.
DVI I nput formats
Input
Source
standard
Vertical rate
Scan type Color space S amp ling Color depth
Single DVI V ESA (640x480)
60 Progressive
RGB
4:4:4 8 bit
Single DVI V ESA (640x480)
72 Progressive
RGB
4:4:4 8 bit
Single DVI V ESA (800x600)
60 Progressive
RGB
4:4:4 8 bit
Single DVI V ESA (800x600)
72 Progressive
RGB
4:4:4 8 bit
Single DVI VESA
(1024x768)
60 Progressive
RGB
4:4:4 8 bit
Single DVI VESA
(1024x768)
70 Progressive
RGB
4:4:4 8 bit
Single DVI VESA
(1280x1024)
60 Progressive
RGB
4:4:4 8 bit
Single DVI
1280x720 60 Progressive
RGB
4:4:4 8 bit
Single DVI
1920x1080 60 Prog ressive
RGB
4:4:4 8 bit
Single DVI
2048x1080
50/60
Progre ssive
RGB
4:4:4 8 bit
Single DVI
1920x1080i
50/60
Interlaced
RGB
4:4:4 8 bit
Twin DVI
ACS
(2048x1080)
50/59.94
Progre ssive
RGB
4:4:4 10 bit
Twin DVI
ACS
(2048x1080)
50/59.94
Progre ssive
RGB
4:4:4 12 bit
DVI-3D
3D (2048x1080) 24/eye
Progre ssive
RGB
4:4:4 2x8 bit
R5906753 DPXK BLP SERIES 20/11/2017 91
