C8000 Battery Testing System User Manual
224 3 Cadex BatteryLab

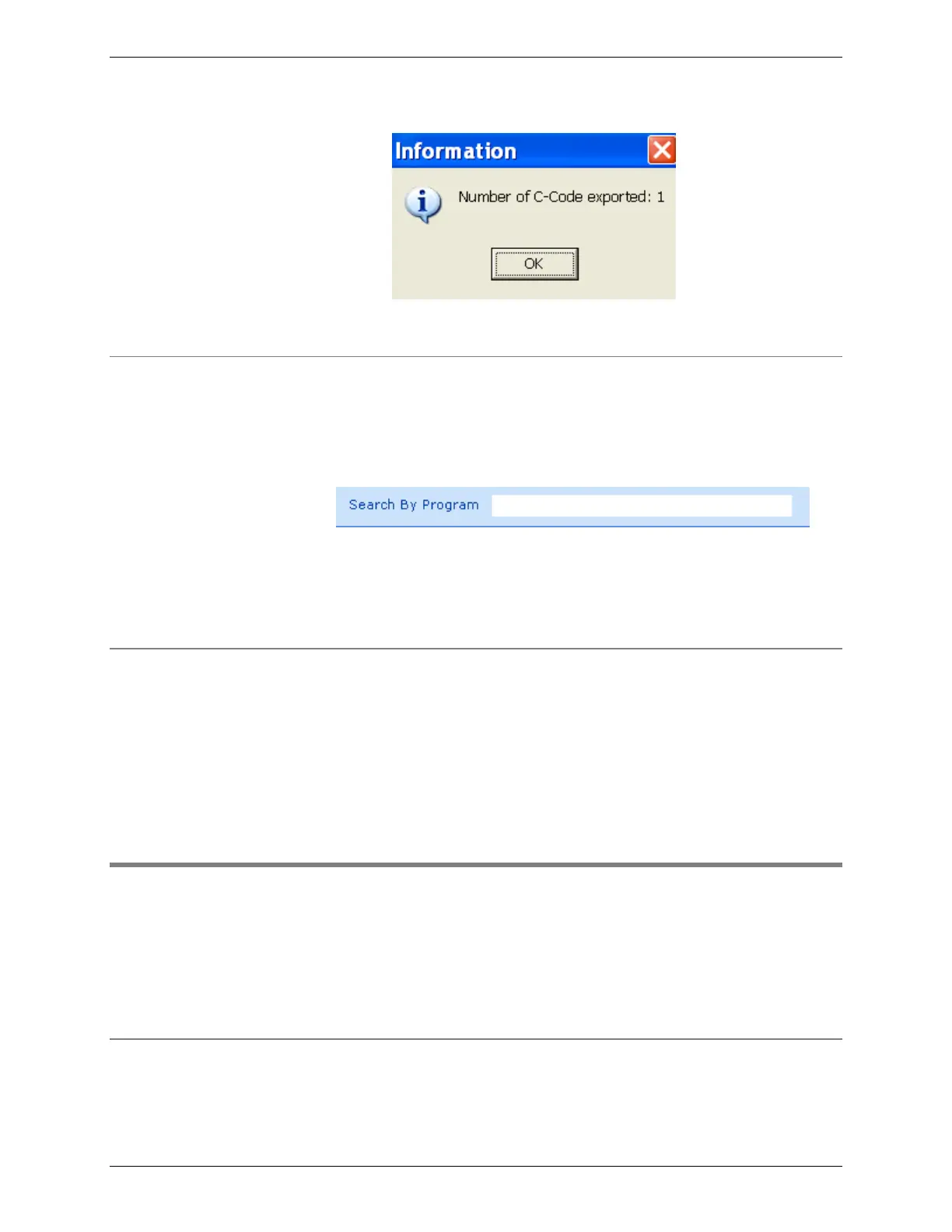

7. Click OK.
3.11.8 Search for a Load Capture Program
The BatteryLab database may contain hundreds, or even
thousands, of load capture programs. To find a load capture
program, click the Search By Program field to move the cursor to
that field.
Next, type the first one or two characters of the load capture
program’s name to find. As BatteryLab locates the partial load
capture program, it will highlight the corresponding c-code in the
Program Database window.
3.11.9 Sort the Load Capture Programs
The BatteryLab database may contain many load capture
programs. To sort the load capture programs in ascending order,
click the Name column in the Program Database window. Click
the column a second time to sort the load capture programs in
descending order.
3.12 Waveforms
The Waveforms window lists the custom waveforms available to
the C8000. For each waveform, the Waveforms Database window
shows the waveform’s name. A waveform contains one or more
steps that will be executed in the order specified and will be
continuously repeated until a program termination has occurred.
3.12.1 Sample Custom Waveform
The following shows how to create a custom waveform for one
variable of GSM pulse. In this waveform, we create a 2A load on
