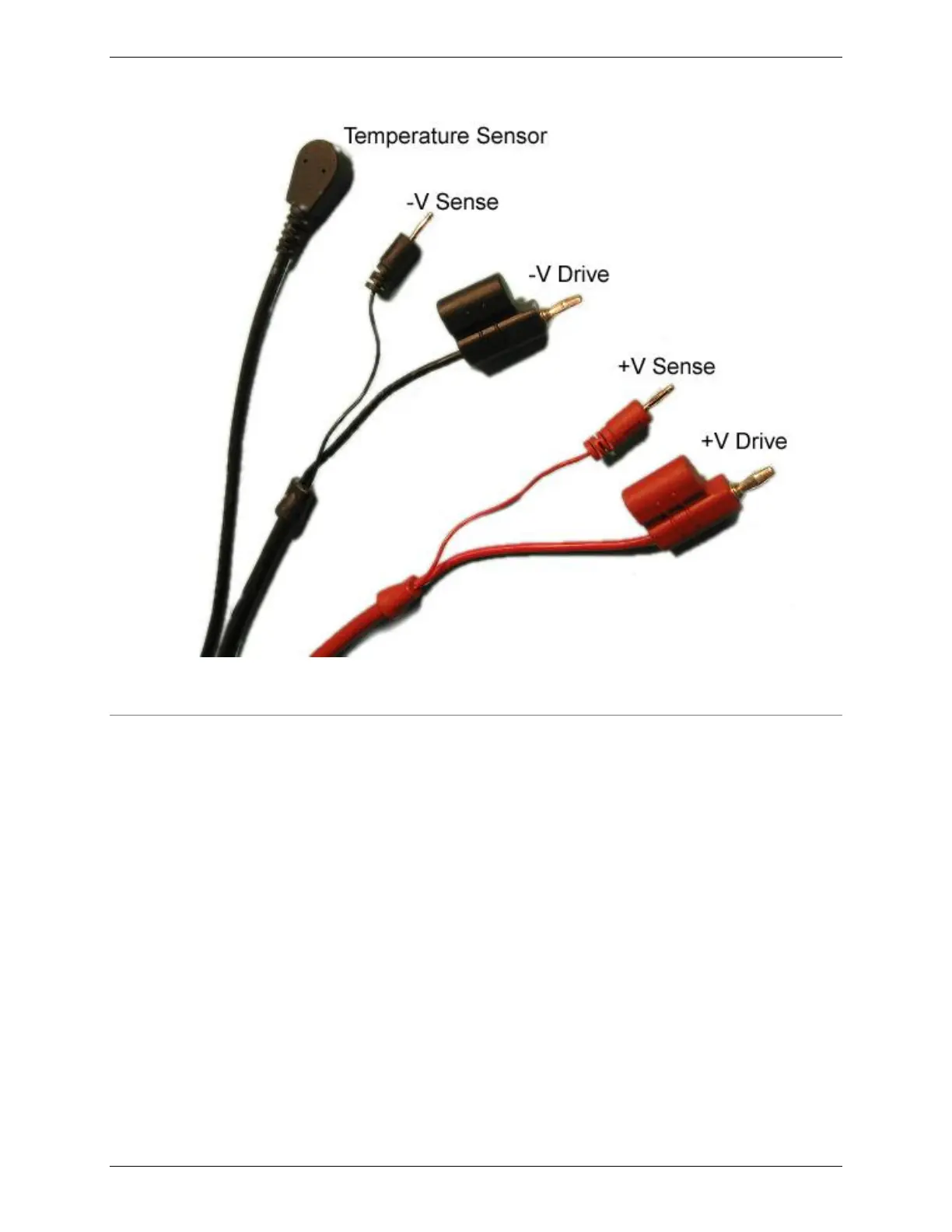

2.3.3 Auxiliary data cables (for I/O ports)
The Auxiliary data cables (for I/O ports) enables the C8000 to
interface with third-party devices, the Cadex
SnapLock/RigidArm series (when using the C8000 Adapter Unit),
and SM-Bus batteries.
Custom programs can be configured to control and respond to
states of the configurable lines.
The connector provides the following interfaces:
 SM-Bus
 Four configurable Digital Inputs or Outputs (Program
Configurable) (Pull-up Required)
 Two Analog outputs (Program Configurable)
 Four Differential Analog inputs with selectable ranges
(Program Configurable).
