C8000 Battery Testing System User Manual
24 2 Battery Tester
Note: Once theC8000 Adapter Unit is connected, the input/output
ports become reserved.
The following diagrams show the pin and electrical specifications
of interfaces for the Auxiliary Input/Output Connector.

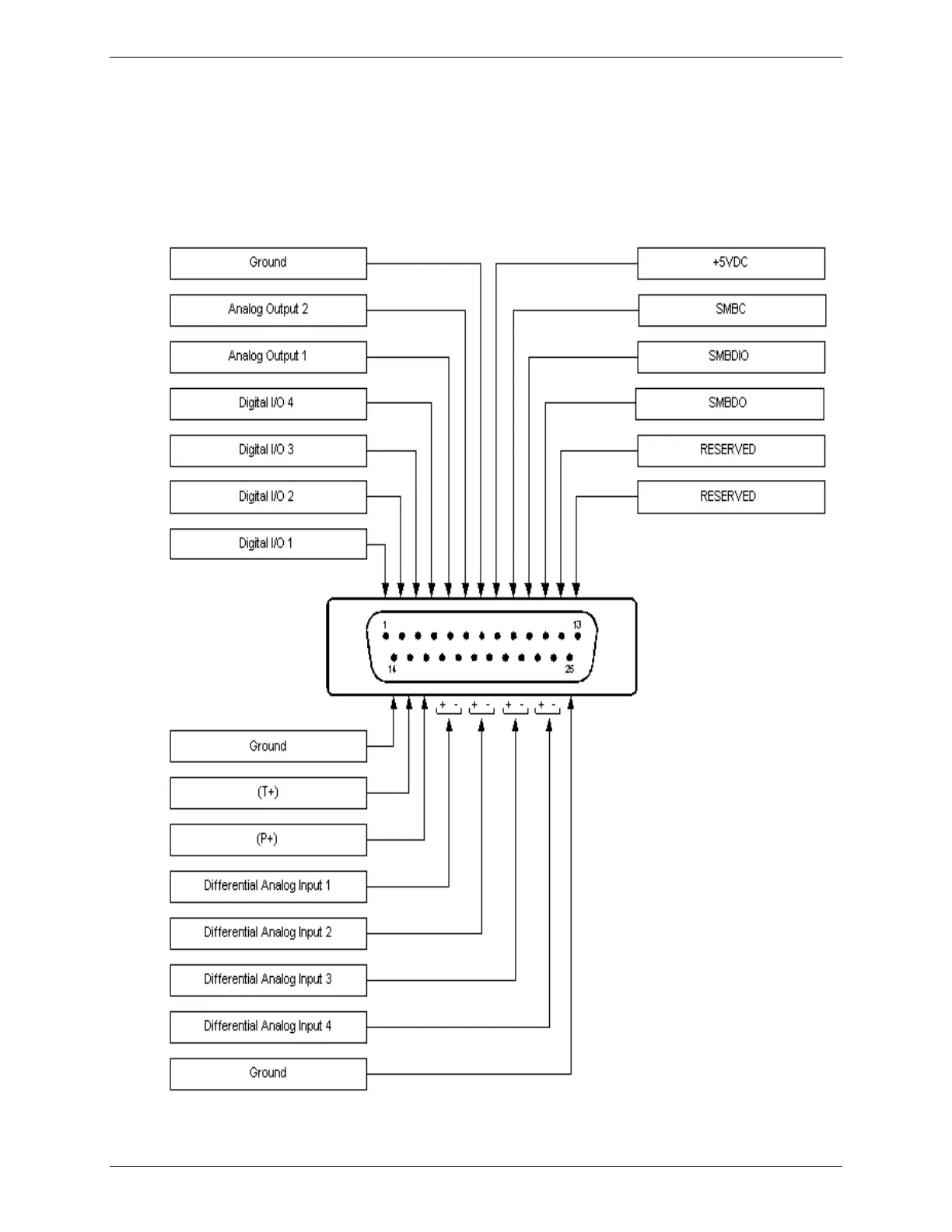

Auxiliary data cables (for I/O ports) Pinout Diagram
