Cadex C8000 - Import a Waveform

C8000 Battery Testing System User Manual
3 Cadex BatteryLab 237
7. Click OK. The new waveform appears in the Waveform
Database window.

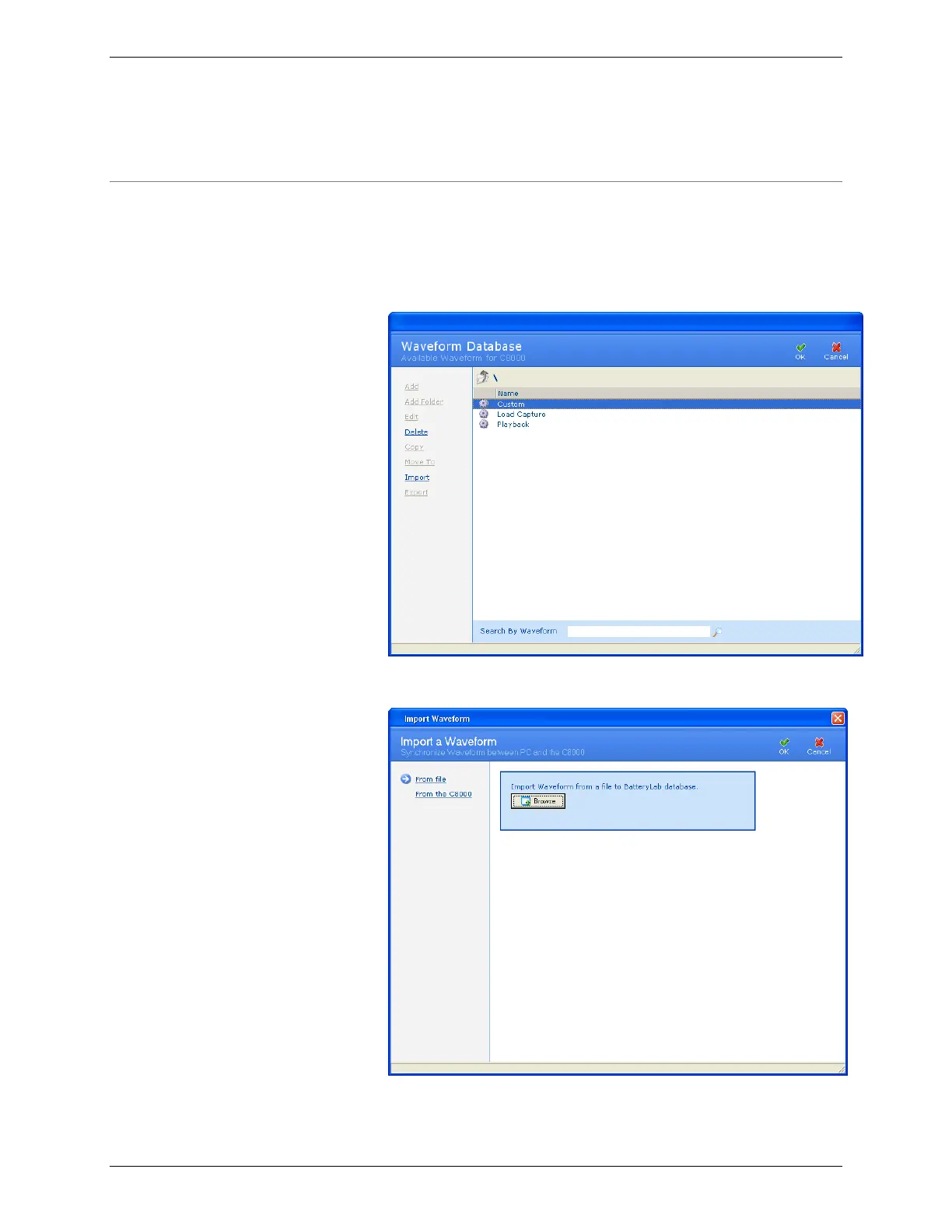

3.12.7 Import a Waveform
To import a waveform from a file:
1. From the Database menu, click Waveforms. The
Waveform Database window appears.
2. Click Import. The Import a Waveform window appears.
