Routing Audio
120 APOLLO
Digital Broadcast Production Console
Fader assign keys are made to strobe
to indicate fully routed paths and also
show the ‘Routed’ label in the fader
displays. The layer select buttons also
strobe for layers that are not in view that
contain paths routed to the output being
interrogated (see Fig 4). The layer select
bank buttons (1-6/7-12) for the selector
buttons not currently in view also strobe
if there is a route made from any of those
layers.
Partial Routing Indication
If only some of the legs of a Stereo or
5.1 path are routed the assign keys flash
rather than strobe and this partial route is
further indicated by showing the ‘Partial’
label in the fader displays
By scanning the assign buttons of the
current fader layer, the layer select
buttons, and the bank select buttons,
users are guided to the faders that are
routed to the bus under interrogation in
contribution mode.
In addition, users are informed of
routes made from other user areas by
notification in the top central contribution
box as in Fig 5 which shows ‘Track 1’ on
the contribution screen which is being
contributed to from User 2.
While in contribution mode, routes from
multiple paths to the selected buss may
be made or removed by pressing the
relevant path assign buttons. The path
assign buttons will strobe if the route is
made. The Layer and ALL A/B buttons
may be switched whilst in this mode.
Note that the assign buttons no
longer alter the current assignment in
Contribution mode when pressed and
released.
However this can still be achieved
by holding the access button for a
second longer.

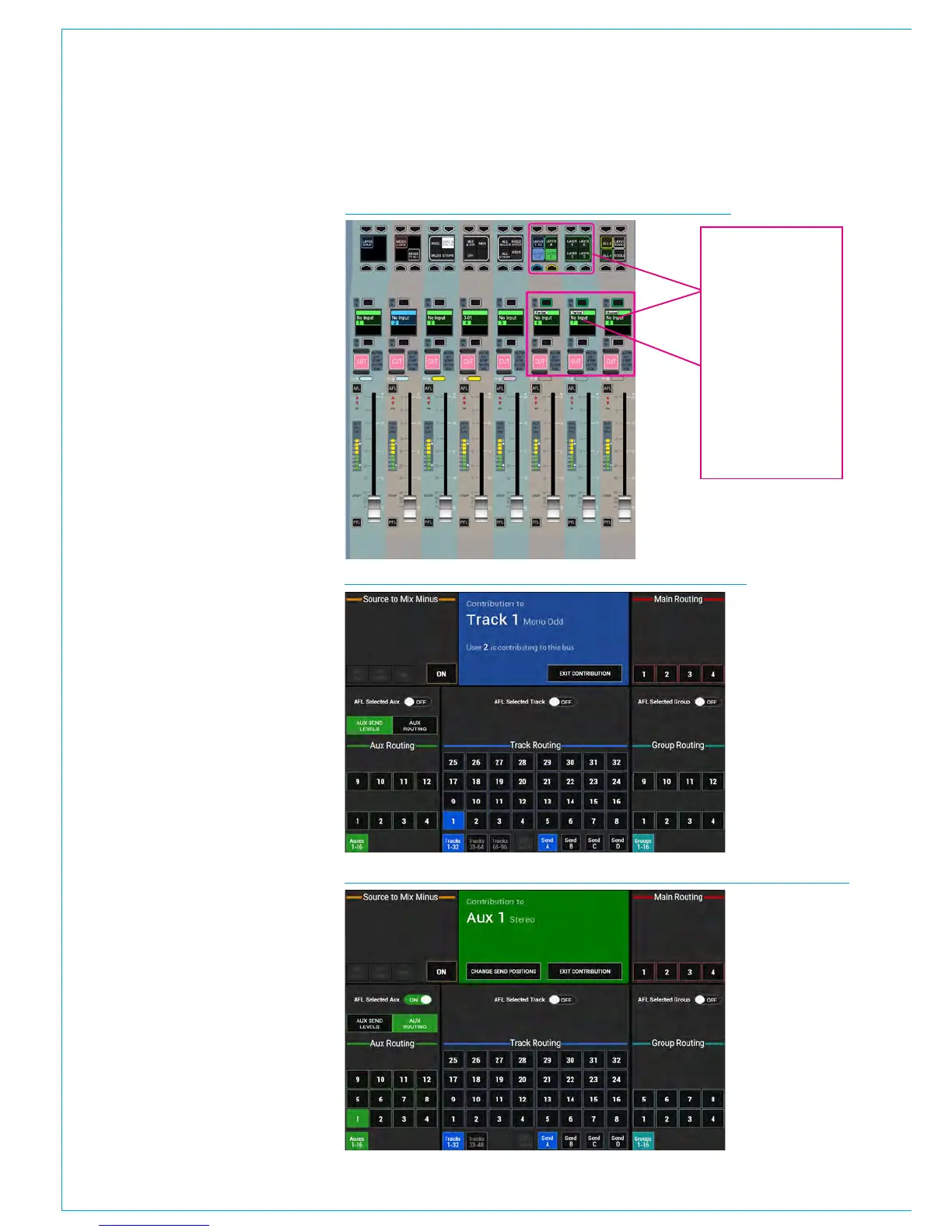

FIG 4 - STROBING/FLASHING INDICATES ROUTED PATHS
Layer Select and Fader
assign
buttons strobe
to indicate fully routed
paths which is further
indicated as ‘routed’ in
the fader displays.
They flash to indicate
partially routed when
only some of the legs of
a Stereo or 5.1 path are
routed which is further
indicated as ‘Partial’ in
the fader displays
FIG 5 - TRACK 1 ON BUS CONTRIBUTION ROUTING SCREEN
FIG 6 - AUX 1 ROUTING ON BUS CONTRIBUTION ROUTING SCREEN
