MONITOR MODE
Monitor mode compliments the
dedicated monitor panel, providing
control over monitor configuration and
source selection as well as standard
monitor controls that can be accessed
from any location on the control
surface along with provision for
independent monitoring for multiple
operators.
The four monitor pre-selectors, along
with four meter selectors are located in
the bottom row. Pressing SEL on any
of these makes it the focus of the right
hand side of the TFT screen, allowing
for the source to be changed and for
miscellaneous settings to be applied.
The button cell to the left of the meter
selectors allows for the panel to switch
between controlling monitor output 1 and
monitor output 2. See Fig 1.
The button cell at the bottom left switches
the left hand side of the TFT screen
between talkback functions and a user
memory load / save screen see Fig 2.

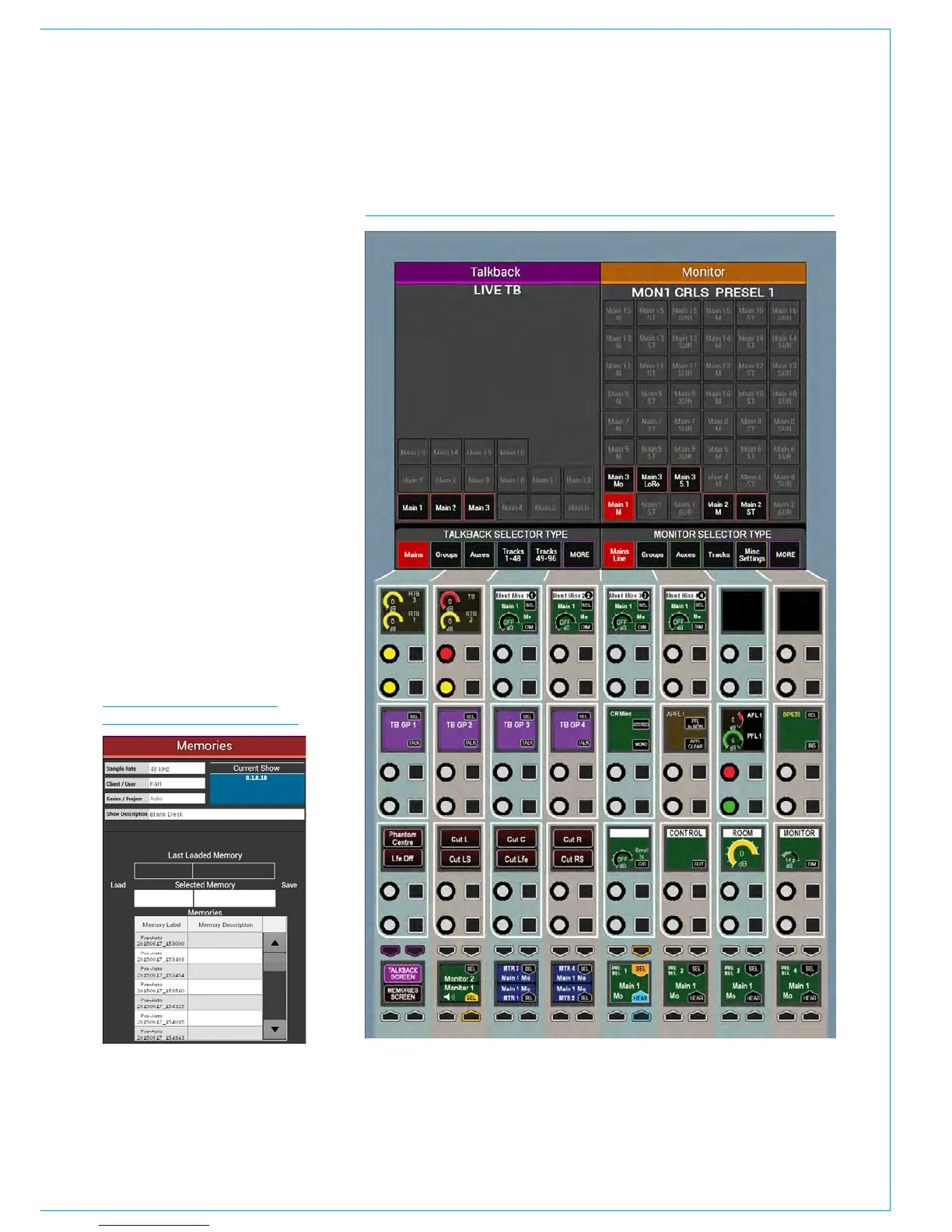

FIG 1 - MONITOR MODE CONTROL LAYOUT
FIG 2 - MEMORIES SCREEN
ON CONSOLE MONITOR MODE
