Control Panel Modes
44 APOLLO
Digital Broadcast Production Console
OUTPUT MODE
Outputs mode provides controls for
manipulating output paths such as
Main outputs, Track outputs, Aux
outputs and Groups.
The TFT display provides audio bargraphs
for Main and Aux buses. The control cells
below are colour coded by output type,
providing level controls and cut buttons if
applicable for each output / bus. Button
cells in the bottom row allow for different
groups of outputs / buses to be viewed in
the control cells above.
Pressing down on a rotary control
highlights that output/bus in the bottom
row for additional controls such as listens,
tone and talkback selectors.
For Main and Group buses, this area also
includes an Assign button, allowing that
bus to be assigned and be the focus of
PROCESSING & SEND-ROUTE panel
modes without the need to have the bus
on a physical fader. See Fig 1.

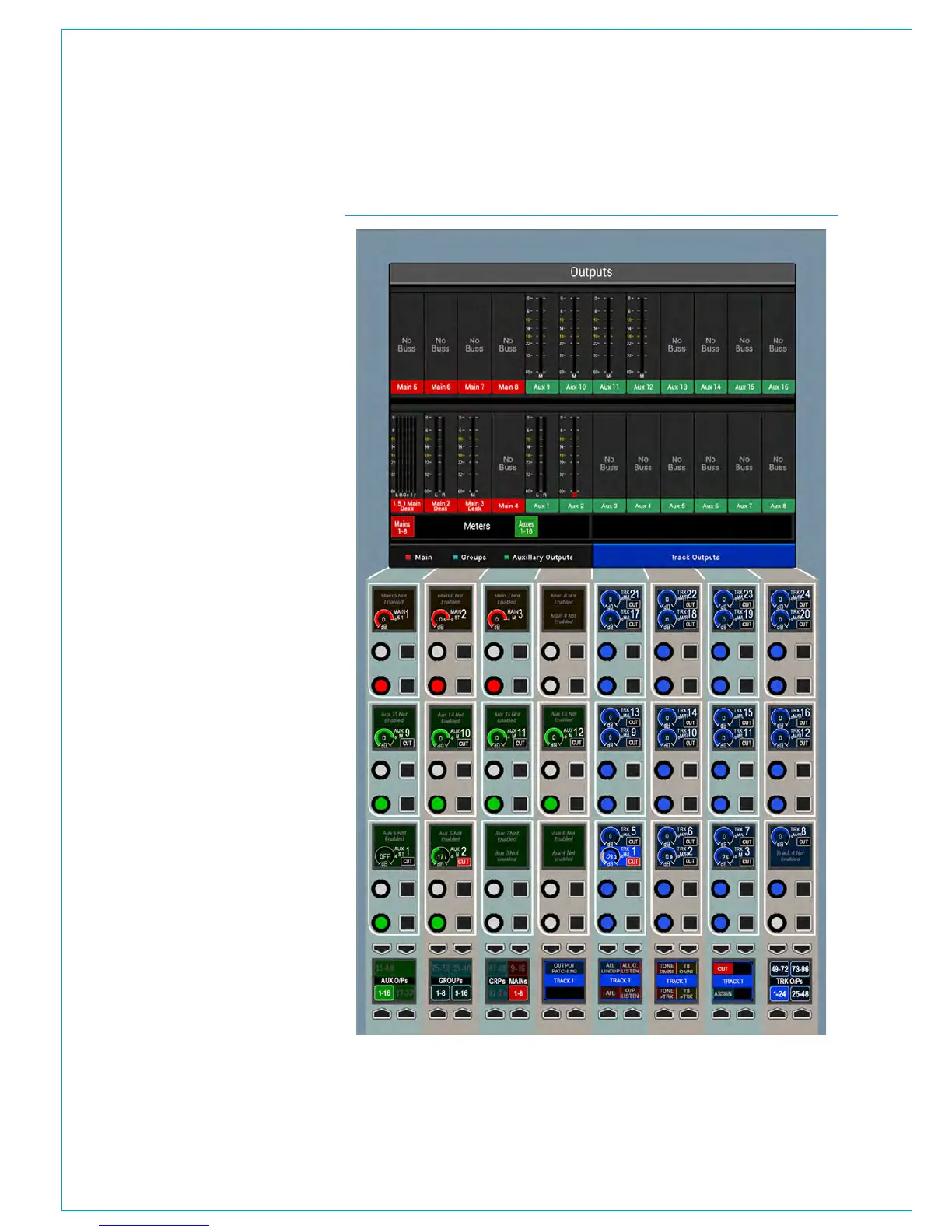

FIG 1 - OUTPUTS MODE CONTROL LAYOUT
