SYSTEM RESET
In the unlikely event that a failure
should occur at any point in the Apollo
system, the failed component may
be reset individually from the other
system components.
Fail warning indicator
System Status will detect any errors
in the system and issue a warning to
the operator. One warning indicator,
the FAIL WARNING button, is located
on the Broadcast Facilities Panel, as
shown in Fig 1. This will flash when an
error is detected. It can be pressed to
acknowledge the error and will stop
flashing, but will remain lit until the error
has been corrected.
Reset buttons
Buttons on the Broadcast Facilities
Panel allow the DSP, Surface and Control
systems to be individually reset. To do this
hold the appropriate button for the failed
component and then press the ENABLE
button as shown at the bottom right of
Fig 1.
Similar buttons are also available on the
rack, with the addition of the Hydra2
Router reset button.
Be extremely cautious when resetting
the Hydra2 Router/Expander system.
If any other consoles on the same
network are accessing ports on your
system, they will experience signal
loss during the reset period.

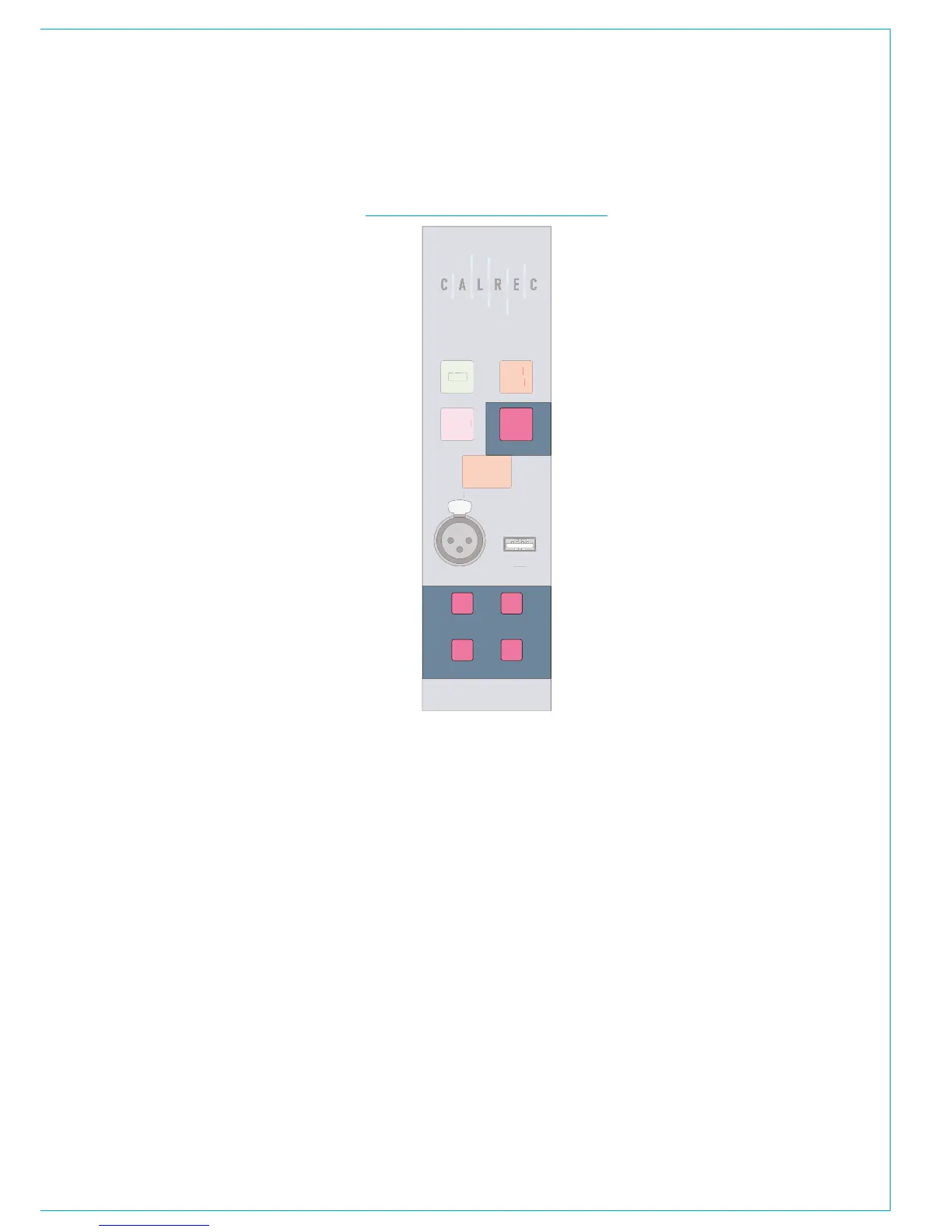

FIG 1 - FAIL WARNING AND RESETS
