Monitor Panel
The monitor panel can act as either a spill
controller, downmix controller or a main
output controller. These functions are
accessed with the four 60mm motorised
faders.
Each fader has its own PFL/AFL/CUT
controls and a set of A/B assign keys
either side of an control cell display.
The panel also contains a subset of the
main monitoring controls including the
large CR Monitor level knob, small LS trim
and changeover, Dim level, AFL and PFL
levels and the 4 preselected monitor Hear
controls.
At the bottom of this panel are 8
customer illuminating buttons which can
be configured to act as general purpose
controls or indicators. See Fig 8.

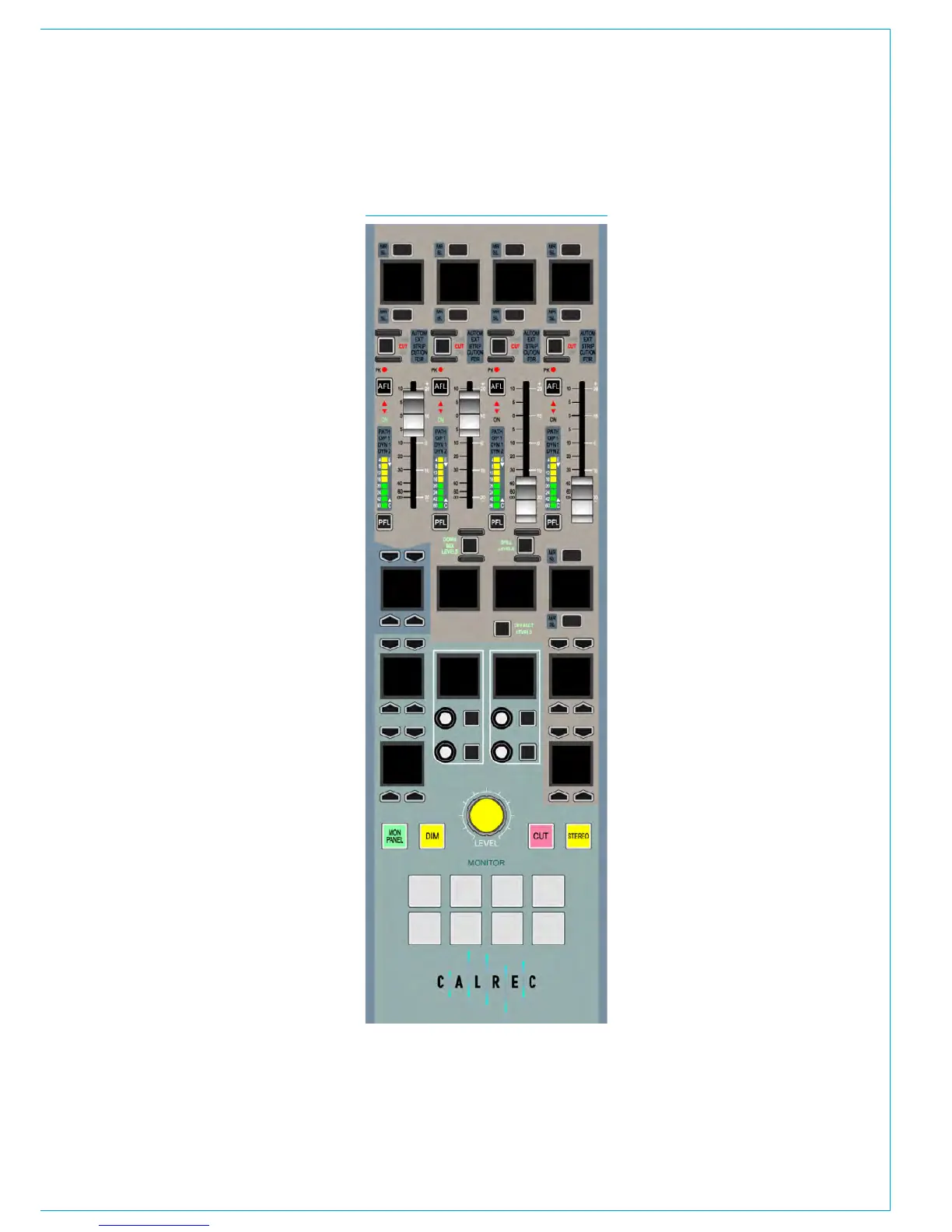

FIG 8 - MONITOR PANEL
