Monitoring
138 APOLLO
Digital Broadcast Production Console
A wild assign panel can be set into
Monitor mode providing controls for
monitoring, metering and talkback
features.
Fig 1 shows the layout of controls in
Monitor mode. To set a wild assign panel
into Monitor mode, touch the MONITOR
button on the Modes row.
MONITOR MODE

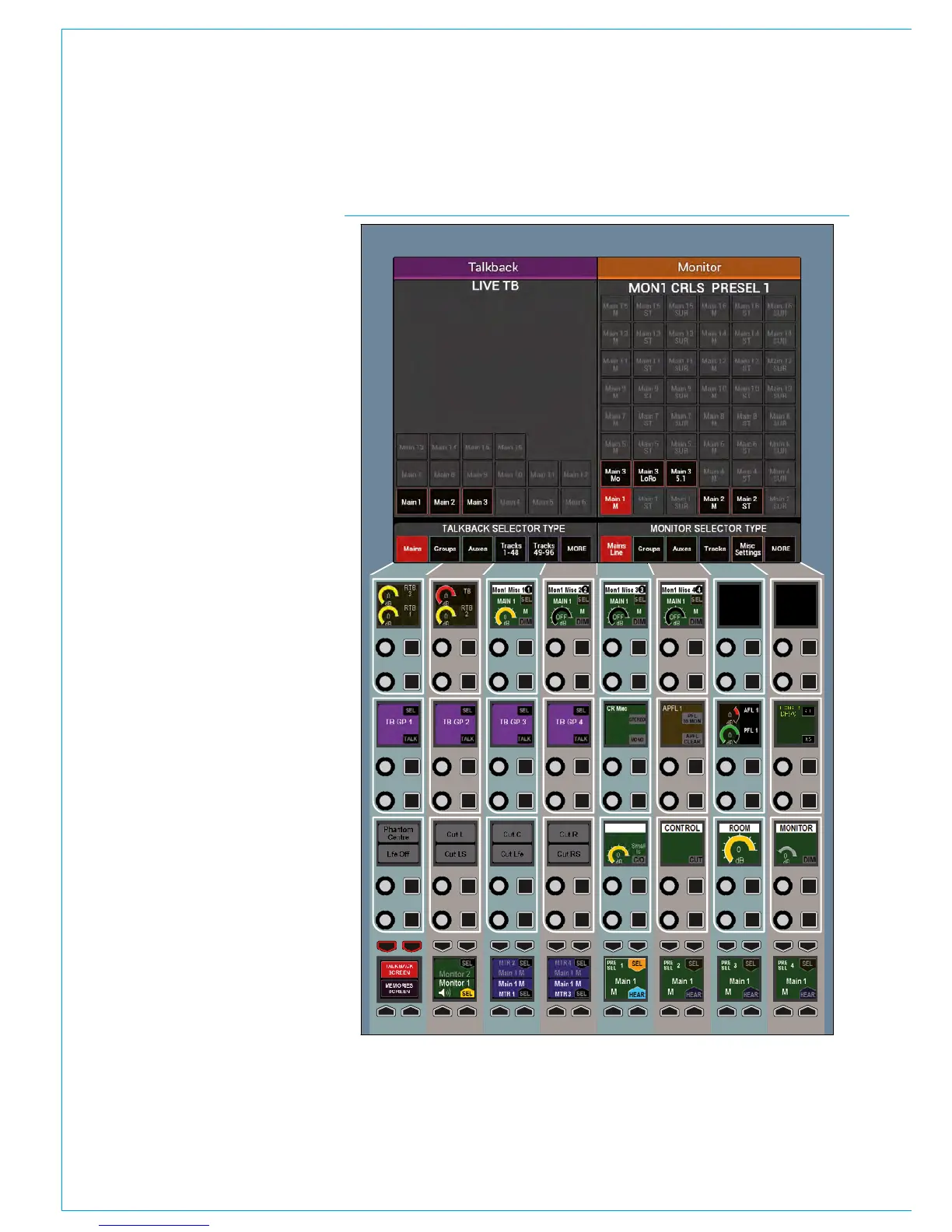

FIG 1 - CONTROL LAYOUT IN MONITOR MODE
