HINT
Boot jumper programming – In case of interrupted programming or other software failure is possible to
use the boot jumper programing to restore controller to working order. Connect the controller to PC,
run LiteEdit and wait until connection bar at bottom turns red. Than run programming process via
menu Controller -> Programming and cloning – Programming. Select correct firmware and confirm
dialog. Than follow instructions in LiteEdit.
Or follow video guide “Boot Jumper Programming“ at http://www.comap.cz/support/training/training-
videos/

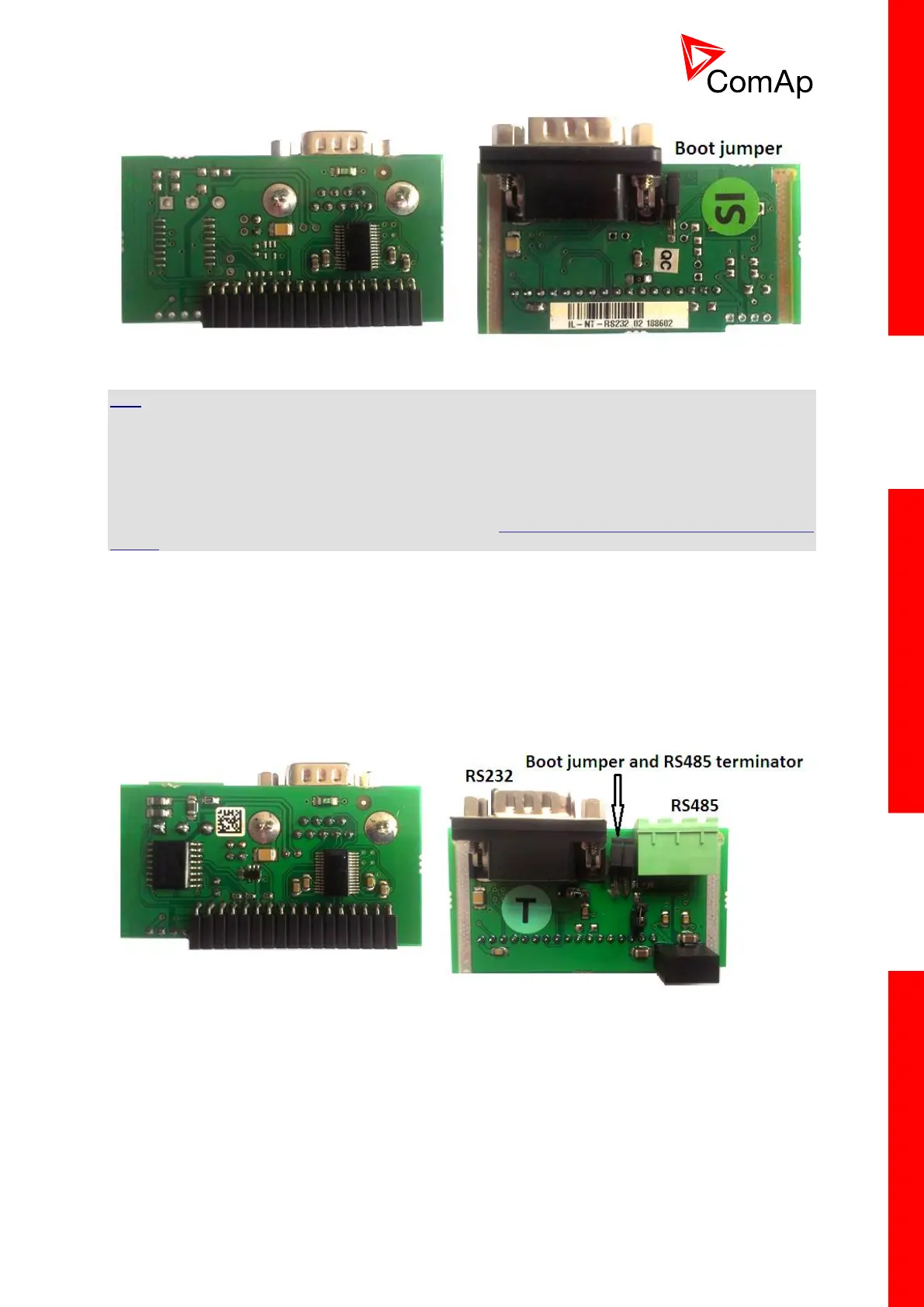

3.5.2 IL-NT RS232-485
IL-NT RS232-485 is optional plug-in card, which enables InteliDrive Lite controller RS232 and RS485
serial communication. This is required for computer or Modbus connection. The IL-NT RS232-485 is a
dual port module with RS232 and RS485 interfaces at independent COM channels. The RS232 is
connected to COM1 and RS485 to COM2. Adjustment of communication type, baud rate etc. is via
Comms Setting group of setpoint in LiteEdit or the controller screen.
3.5.3 IL-NT S-USB
IL-NT S-USB is optional plug-in card to enable communication of InteliDrive controller via USB port.
This is required for computer or Modbus connection. This module contains USB slave port, which is
connected internally to the COM1 of the controllers. It is designed as an easy removable service
module.
This module requires a FTDI USB Serial converter driver installed in the PC. The driver creates a
virtual serial port (COM) in the PC, which must be used in LiteEdit as communication port when a
connection is being opened.
